Scraper Cable Low Voltage Reel Cable NSHTOEU NSHTOU Cable

Crane cable series
Suitable for heavy machinery, such as frequent winding and unwinding with torsional stress, commonly used in transportation and conveyor systems, cranes, mining and rail motors. The neoprene outer sheath protects the cable from ozone and UV radiation as well as oil, acid and other solvents. This cable can be used in dry or wet rooms and outdoors.

Application range
For lifts, conveyors, spreaders and conveyor systems/Winding and unwinding without fixing/dry and wet indoor and outdoor use as well as industrial water.Used in shipyards and railways, as well as in crane equipment in the road and mining industries. The durable outer wear of the outer sheath and the optimized stranding pitch allow the cable to be used in tow chains, control platforms, pumps and similar applications. The cable is resistant to oxidation and UV radiation, resistant to grease and gasoline. Can be used in waste water and salt water.

Technical Parameters

Rated voltage:                                                                  0.6/1KV(600/1000V)
Max.permissble operating voltage AC:                  0.7/1.2KV
Max.permissble operating voltage DC:                  0.9/1.8KV
AC Test Voltage:                                                             3.5KV(5 Min.)
Temperature range:                                                       -40℃ till +80℃
Operating temperature:                                                -40℃ till +80℃
Max. tensile load on the conductor:                        15N/mm2
Travel speed:                                                                    Basket operation:160m/min
Conductor: Stranded thin wire in accordance with VDE 0295 Class 5 / IEC 60228 Category 5
Minimum bending radius:Cable with outer diameter <21.5mm 5 x OD
                                                    Cable with outer diameter >21.5mm 6.25 x outer diameter
Flexible application for reel rotation:7.5x outer diameter
Grounding protection core: yellow/green two-color grounding protection core

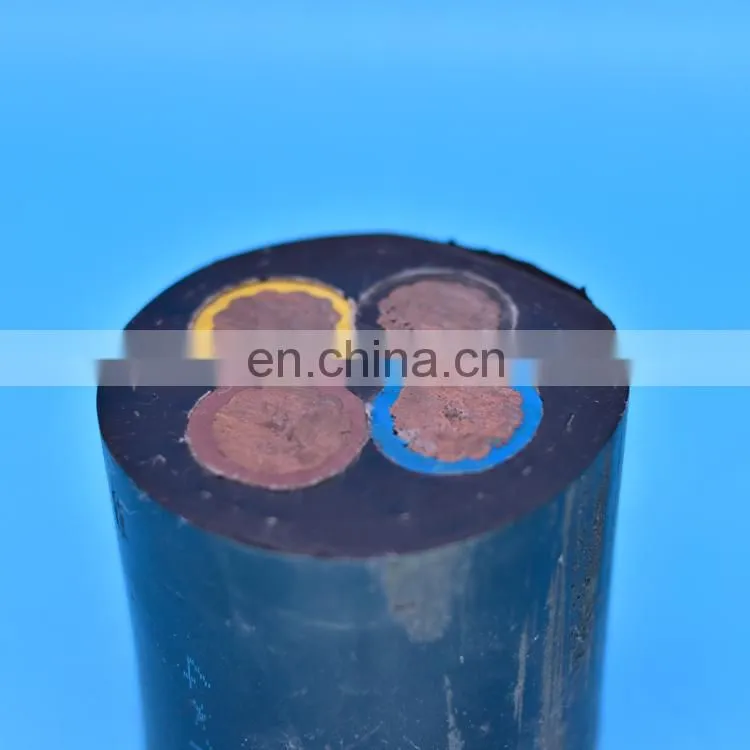

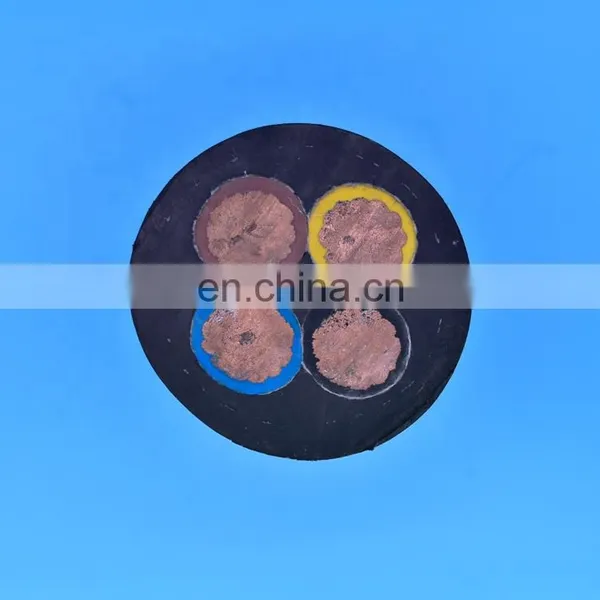

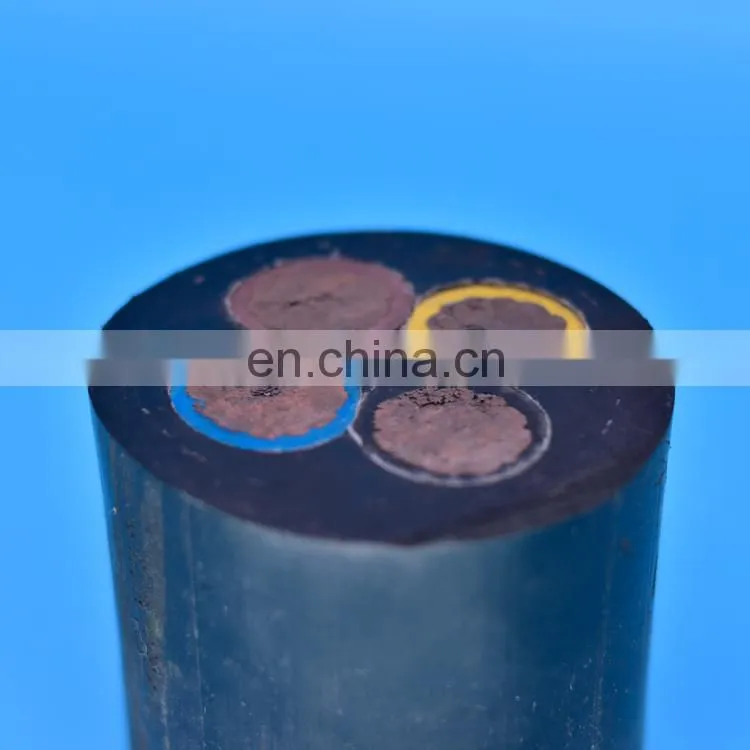

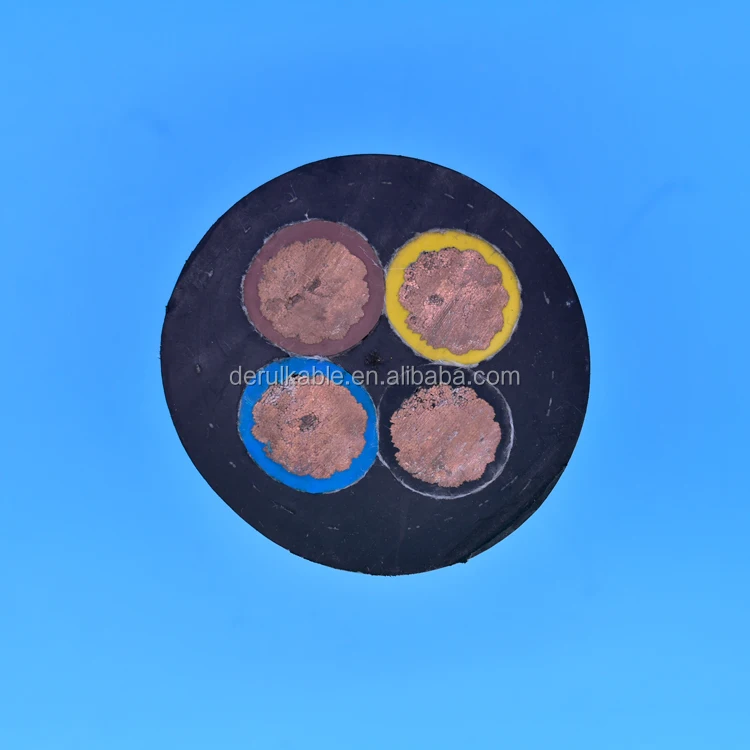

Cable structure

Bare copper/Tinned copper wire stranded wire

PUR sheath/Rubber sheath
PUR/PVC/Rubber insulation

Wool textile fabric covering
Kevlar weaving

product features
Flame retardant in accordance with IEC 60332-1-2
Oil resistance according to EN 60811-2-1
Good chemical resistance, heat resistance and mechanical stress resistance
Suitable for connection of mobile devices in hazardous areas in accordance with DIN VDE 0165
