Home > Products > Cable for Crane System > Heavy duty wear resistant reeling cable 5 core 10mm pendent cable NSHTOEU

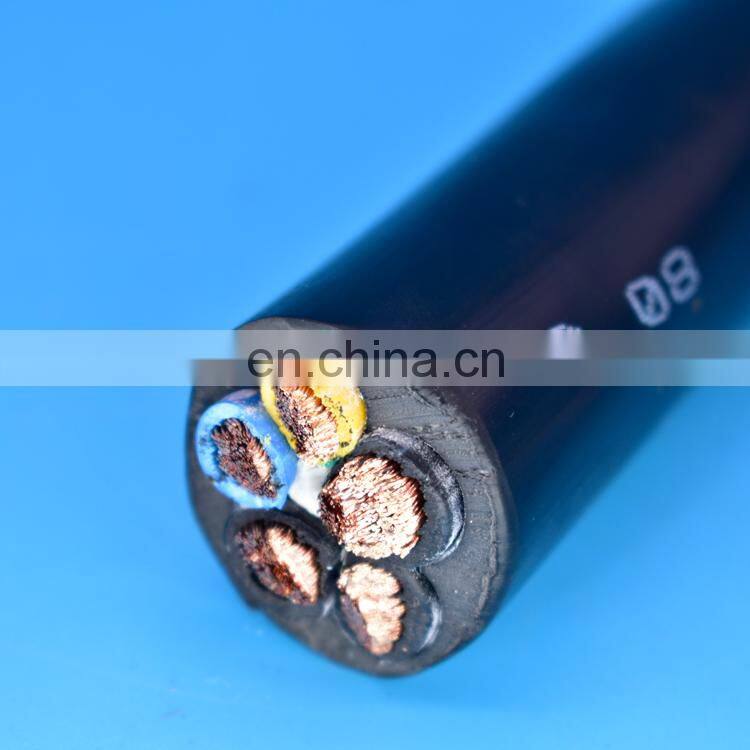

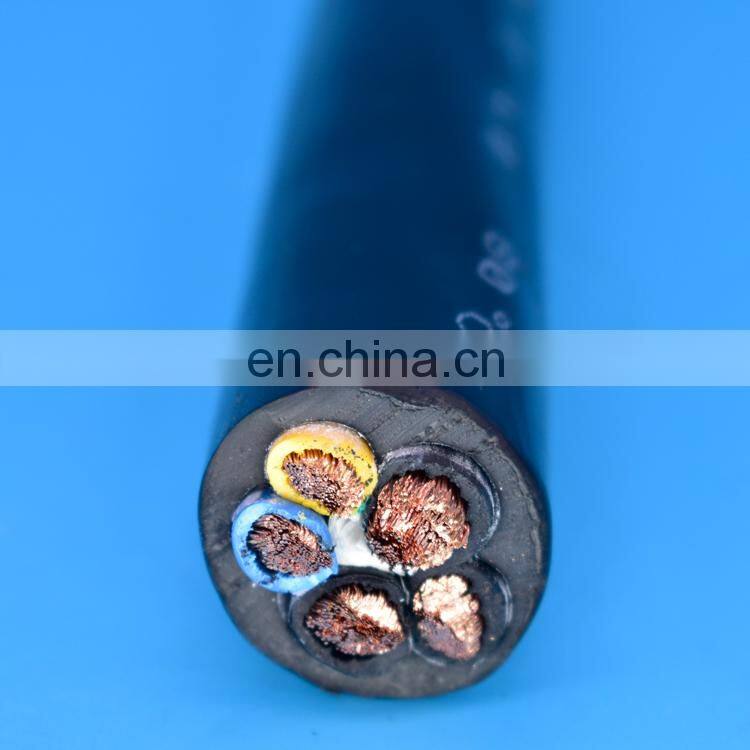

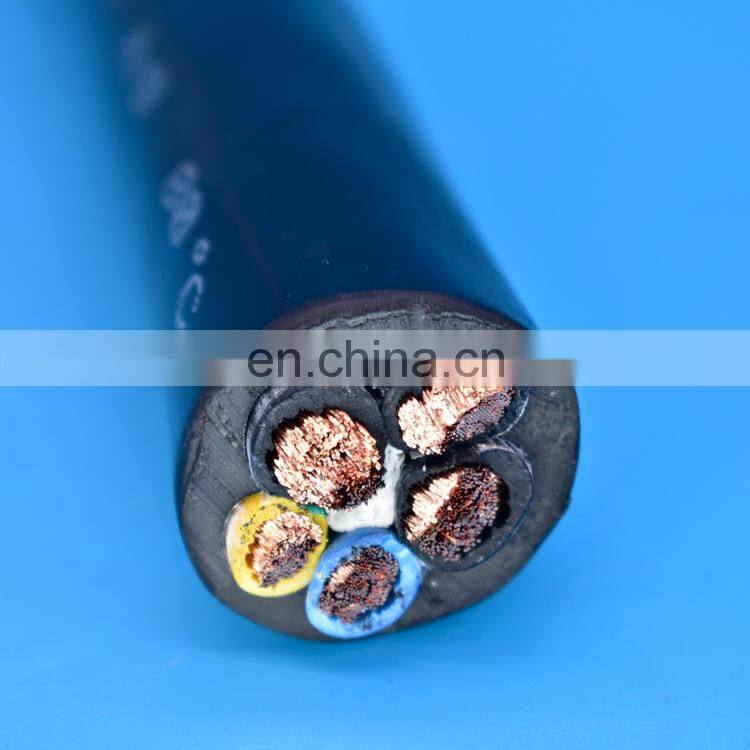

Heavy duty wear resistant reeling cable 5 core 10mm pendent cable NSHTOEU
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Spreaderflex cable crane control cable lift control cable
-
Compound spreader cable with steel wire GRDGOEU festoon cable
-
3 core low voltage round reeling cable 3x25mm rubber NSHTOEU cable
-
Low voltage round rubber sheathed reeling cable mining cable
-
Single core FTPR power cable for wind power generation cable anti twist
-
4x70 oil resistant cable low voltage NSHTOEU reeling cable
Product Description
Products Description
Product Name | Heavy duty wear resistant reeling cable 5 core 10mm pendent cable NSHTOEU |
Article Type | DERUL-A1443 rov tether/robot cable/underwater umbilical/crane cable |
Constructure | Conductor+insulation+fiber optic+coaxial+shielding+sheath |
Conductor | Copper/tinned copper/silver plated copper |
Insulation | PE/PVC |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |
Diameter | TBD |
Sheath Color | TBD |
Applications | ROV/UAV/crane/elevator/underwater drone/sewer robot/cctv pipe crawler |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 10-15 working days after payment received |
Shipping lead time | 7-10 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, full payment before shipped. Negotiable. |
Application
Suitable for heavy machinery, such as frequent winding and unwinding with torsional stress, commonly used in transportation and conveyor systems, cranes, mining and rail motors. The neoprene outer sheath protects the cable from ozone and UV radiation as well as oil, acid and other solvents. This cable can be used in dry or wet rooms and outdoors.
Suitable for heavy machinery, such as frequent winding and unwinding with torsional stress, commonly used in transportation and conveyor systems, cranes, mining and rail motors. The neoprene outer sheath protects the cable from ozone and UV radiation as well as oil, acid and other solvents. This cable can be used in dry or wet rooms and outdoors.
Conductor
The conductor classes are divided into nominal cross-sections. The individual conductor classes F，FS and FF and the nominal cross-sections are defined by specification of the maximum diameter of the single wires and by the maximum resistance of the conductor at 20 ℃ Max. diameter of the single wires (mm). Resistance of the conductor at 20 ℃ （Ω/km）. Electrolytic copper,tinned, very finely stranded，（Extremely finely stranded DIN VDE 0295 Class 6）
Compounds
Nowadays, the insulating and sheathing compounds of flexible electric cables are made almost exclusively of elastomeric materials. Thermoplastic materials have not been widely accepted. The great advantage of elastomers under heavy-duty operating conditions lies in their very good mechanical properties,such as reversible(elastic) force-elongation characteristic and their high resistance to abrasion and tear propagation. In addition, these compounds are excellently suited for unrestricted use outdoors. They are characterized by their good resistance to the weather, temperature variations,chemicals and their flame retardance. The elastomer EPR/EPDM with its high resistance to ozone and UV and its superior flexibility under cold conditions combined with excellent electrical characteristics is worthy of special mention as an insulating material. The tough , flame-retardant and weather-resistant PCP is a tried-and-tested sheathing compound for flexible electric cables.
Nowadays, the insulating and sheathing compounds of flexible electric cables are made almost exclusively of elastomeric materials. Thermoplastic materials have not been widely accepted. The great advantage of elastomers under heavy-duty operating conditions lies in their very good mechanical properties,such as reversible(elastic) force-elongation characteristic and their high resistance to abrasion and tear propagation. In addition, these compounds are excellently suited for unrestricted use outdoors. They are characterized by their good resistance to the weather, temperature variations,chemicals and their flame retardance. The elastomer EPR/EPDM with its high resistance to ozone and UV and its superior flexibility under cold conditions combined with excellent electrical characteristics is worthy of special mention as an insulating material. The tough , flame-retardant and weather-resistant PCP is a tried-and-tested sheathing compound for flexible electric cables.
Tensile loads
The tensile loads of copper conductors in flexible electric cables for cranes and material handling equipment as specified by DIN VDE 0298,Part 3,should not exceed 15N/MM2. The maximum permissible tensile load for installing fixed laying flexible cables is 50N/MM2. referred to the cross-section of the conductor. Flexible electric cables for cranes and meterial handling equipment are generally not designed for torsional stresses. The latter can,however,not be avoided during operation.
The tensile loads of copper conductors in flexible electric cables for cranes and material handling equipment as specified by DIN VDE 0298,Part 3,should not exceed 15N/MM2. The maximum permissible tensile load for installing fixed laying flexible cables is 50N/MM2. referred to the cross-section of the conductor. Flexible electric cables for cranes and meterial handling equipment are generally not designed for torsional stresses. The latter can,however,not be avoided during operation.
Why Choose Us
Derul Cable (Shanghai) Co.,Ltd
Derul Cable (Shanghai) Co., Ltd, an enterprise with high and cutting-edge technology, which is based on mature process and a excellent team composed of domestic technicians from cable industry, commits itself to the special design, manufacture and marketing. Derul Cable has built up since 2013 and products are mainly involved in power plant, port, mine, metallurgy, ship and other industrial equipment, etc. Derul Cable uses the best-in-class cable material to enhance the product lifespan, weathering resistance, bending resistance, abrasion resistance, and performance in high and low temperature.
We provide four series of products such as:
We provide four series of products such as:
- flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
- drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
- Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
- flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system.
Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
Certificate
Customer Comments
Packing and Shipping
Recommend Products
FAQ
Q1: What can I get from your company?
A1: Our company, Derul Cable is a professional company that specialized in different cables specially in ROV cables, flexible cables, underwater cables, flat elevator cables and so on. We can not only provide you qualified products but also excellent services. Let us help you to grow your business!
Q2: What is your MOQ?
A2: If we have products in our stock, there is no MOQ. For customized cables, the MOQ is 100 meters or more. It depends on the specifications you need.
Q3: How can you ensure your product quality?
A3: We can provide samples before you place the bulk order. So you can check the product quality through the sample. We are a company that aims to provide high quality and good service to our customers. The products are using qualified raw materials. Our products are under CE requirements.
Q4: Do you do OEM service?
A4: Yes, we can customied the products for our customers. Please advise the detailed specifications you need. We will evaluate your needs and give our professional suggestions and best offer.
Q5: When can I receive the goods after I payed?
A5: Usually it will take 7 days to receive the goods.
Q6: What if I payed the money and you don't send the goods to me?
A6: It will never happens to you. We have trade assurance order on alibaba which can guarantee your order from beginning to the end.
Contact Us
Contact | Anna Zheng |
Email | anna(@) |
Mobile/WhatsApp/Wechat | +86 15968463797 |
Skype | ah_alading(@) |
