Neutral Buoyant 2x26awg Rov Tether With Kevlar Reinforced
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2005
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Core Pool Robotic Cable ROV CableNegotiableMOQ: 1 -
Subaqueous Pump Cable for Equipment of Submergence and Extracts Groundwater to Surface for Power CableNegotiableMOQ: 1
-
Shielded Float Cable Underwater Zero Buoyance Cable fo RovNegotiableMOQ: 1
-
Single Mode Fiber Optic Underwater Cable Underwater Float CableNegotiableMOQ: 1
-
2 Core Umbilical Cord ROV Buoyancy Floating Submarine Cable With Single Fiber Optic CableNegotiableMOQ: 1
Product Description
Neutral buoyant rov tether
Application:
Derul Cable is able to design and manufacture Remotely Operated Vehicle (ROV) tethers. Power & signals are integrated into a cable structure, so ROV tethers can be used to transmit both electricity and signal. ROV tethers normally resort to coaxial and twisted pairs to achieve signal transmission. The cable which connects the underwater vehicle with the controller significantly affects its performance, so it must ensure stable signal transmission. The neutrally buoyancy helps vehicle run smooth with less water resistance and loading.
Description:
The neutral tether is composed of 2x0.5mm2 power supply conductors.

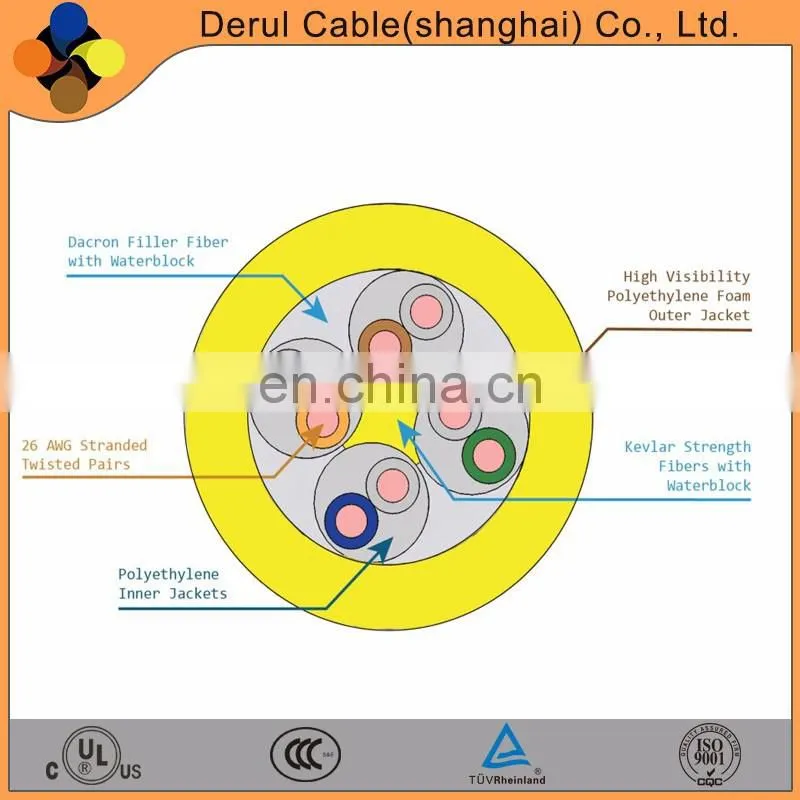

Construction:
Conductor: bare copper
Core number: 2 cores
Insulation material: polyethene
Sheath material: polyurethane foam
Strength member: Kevlar fiber
Breaking strain: 50kgf
Rating depth: 200mtrs
Overall diameter: 7.8mm
Color: Green
Application: ROV & underwater camera
*Above specifications can be adjusted to customers' needs.
Application:
Derul Cable is able to design and manufacture Remotely Operated Vehicle (ROV) tethers. Power & signals are integrated into a cable structure, so ROV tethers can be used to transmit both electricity and signal. ROV tethers normally resort to coaxial and twisted pairs to achieve signal transmission. The cable which connects the underwater vehicle with the controller significantly affects its performance, so it must ensure stable signal transmission. The neutrally buoyancy helps vehicle run smooth with less water resistance and loading.
Description:
The neutral tether is composed of 2x0.5mm2 power supply conductors.
Construction:
Conductor: bare copper
Core number: 2 cores
Insulation material: polyethene
Sheath material: polyurethane foam
Strength member: Kevlar fiber
Breaking strain: 50kgf
Rating depth: 200mtrs
Overall diameter: 7.8mm
Color: Green
Application: ROV & underwater camera
*Above specifications can be adjusted to customers' needs.
Detailed Images
4 CORES CABLE |
|||
No. |
DERUL00003 |
Vlotage |
300/500V |
Spec. |
2 cores |
Application |
underwater |
Cable diameter. |
5MM |
Certification |
CE, ISO9001 |
