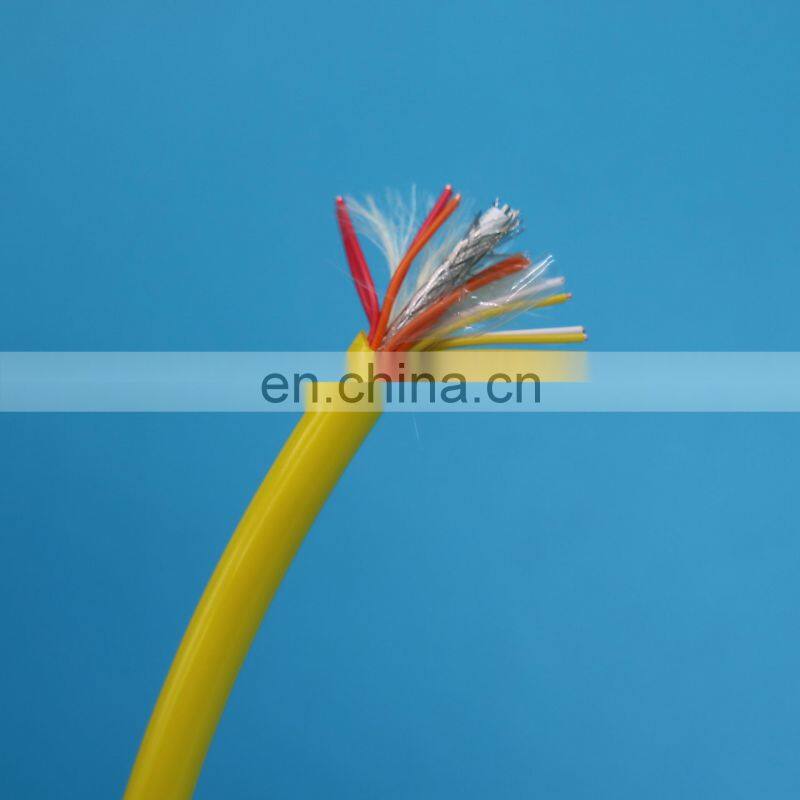

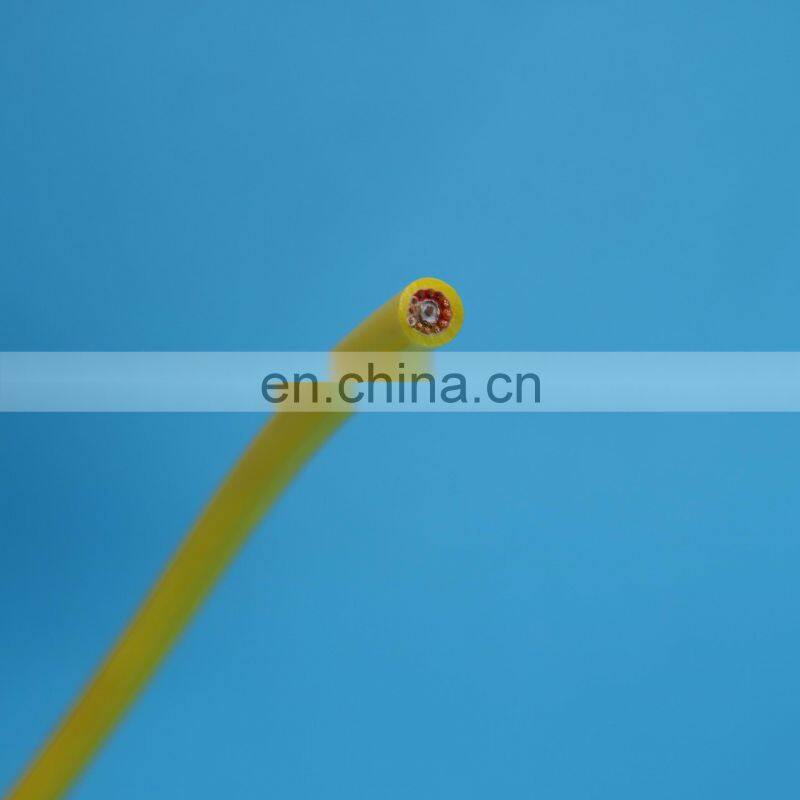

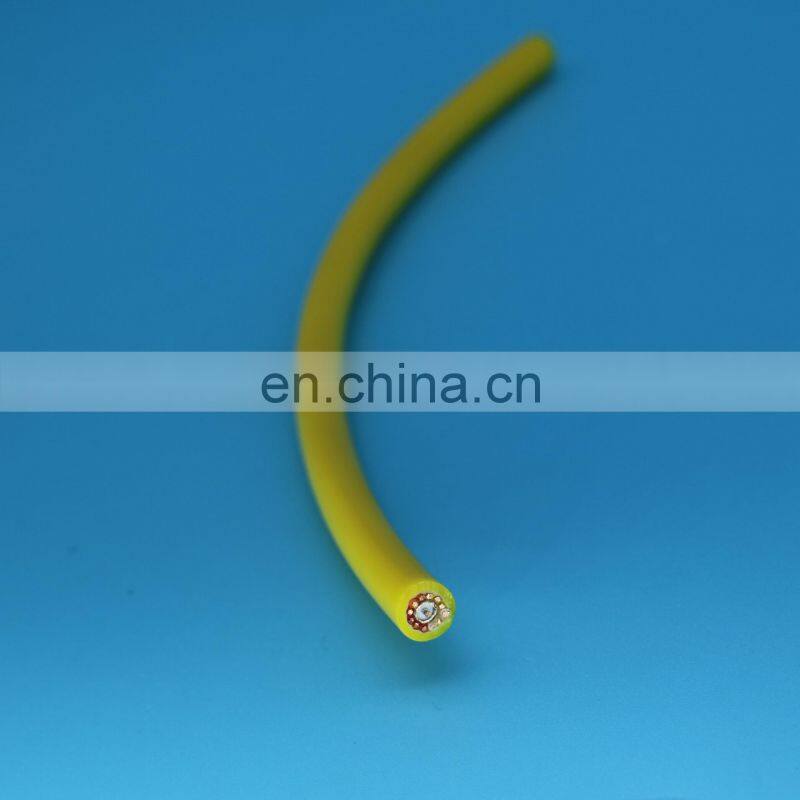

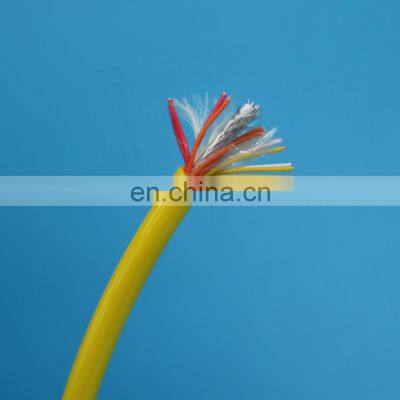

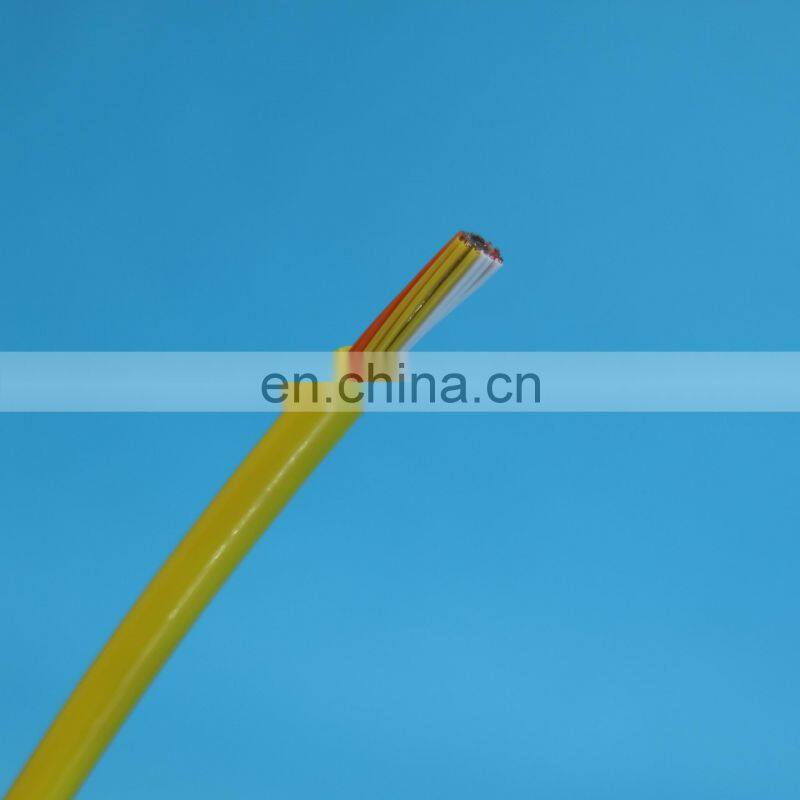

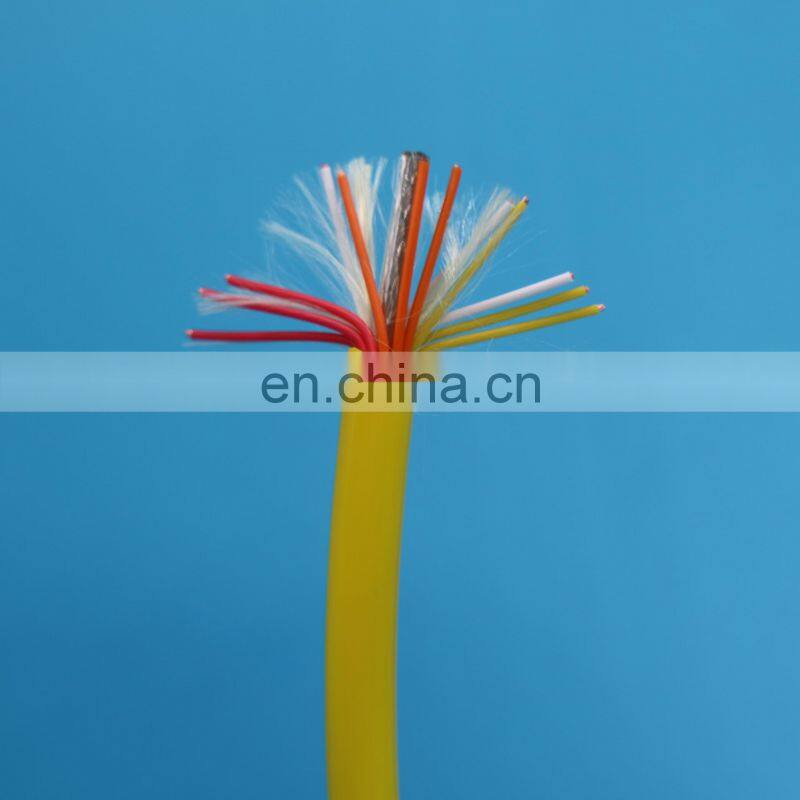

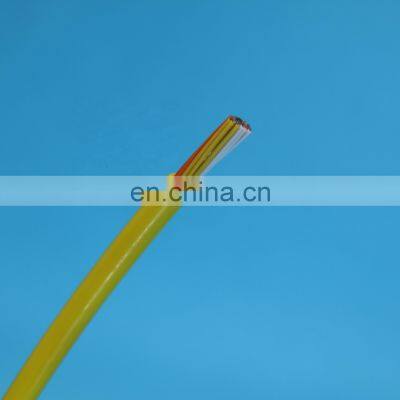

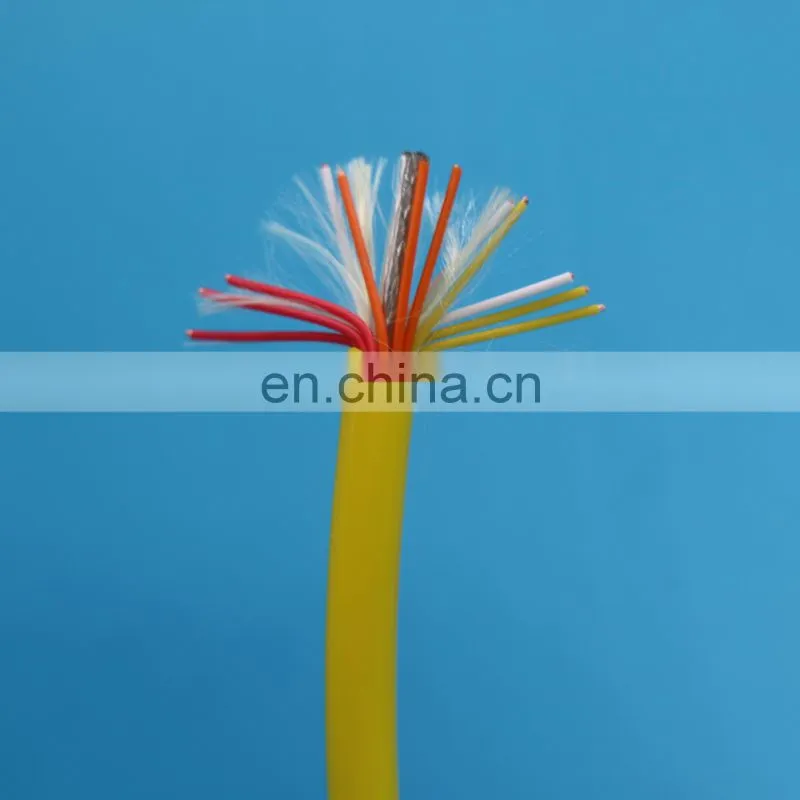

12 core underwater coaxial cable robotics wire and cable
- 1000 per Month
- T/T Credit Card
- 16 core 22awg 24awg 26awg cable twisted pair cable for robot
- 10 core 4 pair twisted special robot cable 1.5mm2 sewer crawler cable
- Umbilical tether cable underwater robotic cable
- Customized flexible cable robot cable underwater electrical cable
- Kevlar braid cable with aluminum foil shielding cable for tethered drone
- 12 core robot cable sewer crawler cable high flexible robot cable
Product Description
Product Name | 12 core underwater coaxial cable robotics wire and cable |
Article Type | DERUL-A1219 rov tether/pipe crawler cable/robot cable/drag chain cable |
Constructure | Conductor+insulator+sheath+shield |
Conductor | Copper |
Insulation | PE/PVC/Rubber |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |

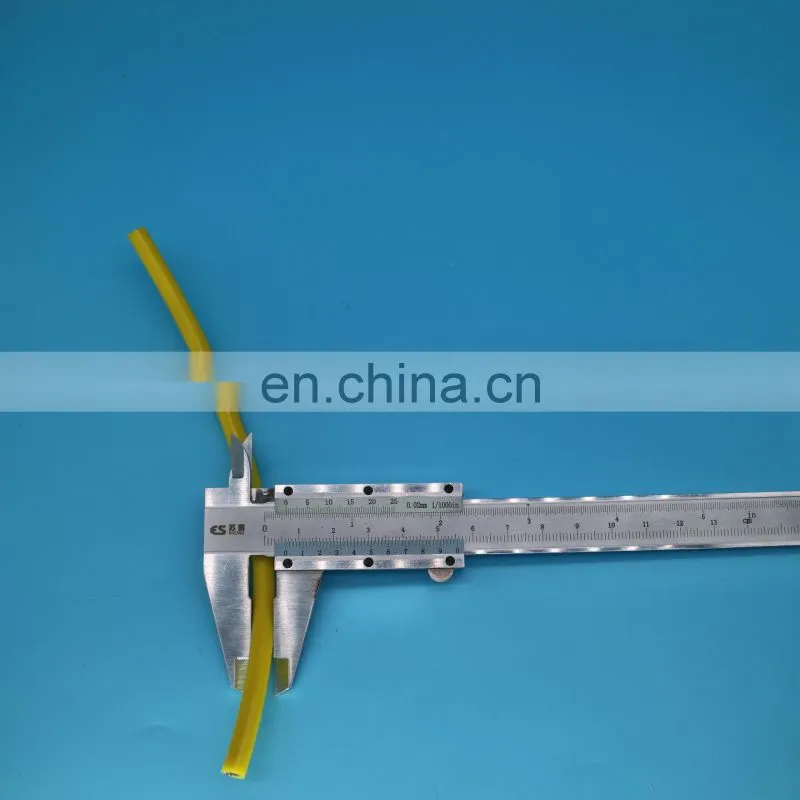

Diameter | Customized |
Sheath Color | Customized |
Applications | ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 10-15 working days after payment received |
Shipping lead time | 5-10 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, full payment before shipped. Negotiable. |
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
Derul Cable (Shanghai) Co.,Ltd
We provide four series of products such as:
- flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
- drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
- Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
- flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system.
Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
Q1: What can I get from your company?
A1: Our company, Derul Cable is a professional company that specialized in different cables specially in ROV cables, flexible cables, underwater cables, flat elevator cables and so on. We can not only provide you qualified products but also excellent services. Let us help you to grow your business!
Q2: What is your MOQ?
A2: If we have products in our stock, there is no MOQ. For customized cables, the MOQ is 100 meters or more. It depends on the specifications you need.
Q3: How can you ensure your product quality?
A3: We can provide samples before you place the bulk order. So you can check the product quality through the sample. We are a company that aims to provide high quality and good service to our customers. The products are using qualified raw materials. Our products are under CE requirements.
Q4: Do you do OEM service?
A4: Yes, we can customied the products for our customers. Please advise the detailed specifications you need. We will evaluate your needs and give our professional suggestions and best offer.
Q5: When can I receive the goods after I payed?
A5: Usually it will take 7 days to receive the goods.
Q6: What if I payed the money and you don't send the goods to me?
A6: It will never happens to you. We have trade assurance order on alibaba which can guarantee your order from beginning to the end.
