Product Name |

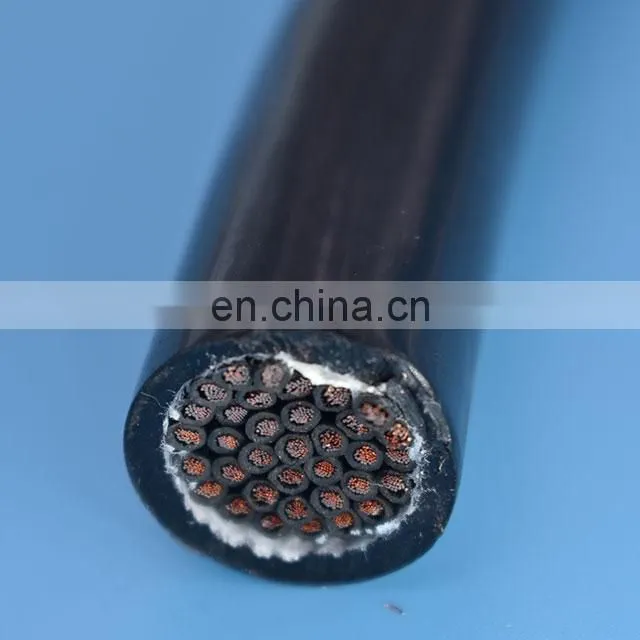

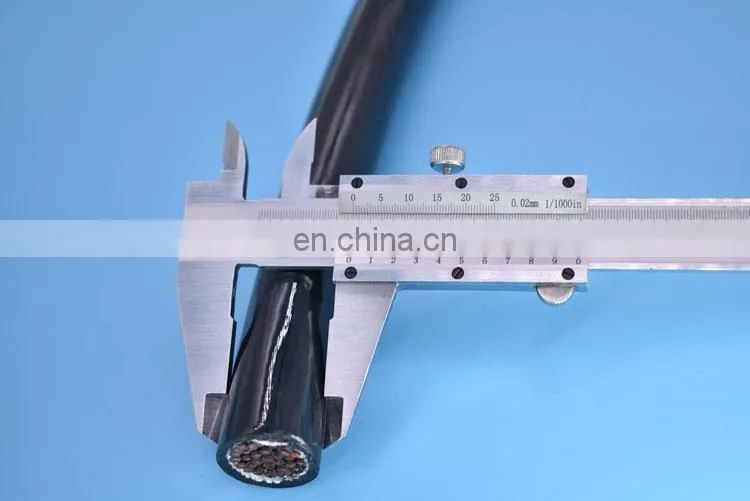

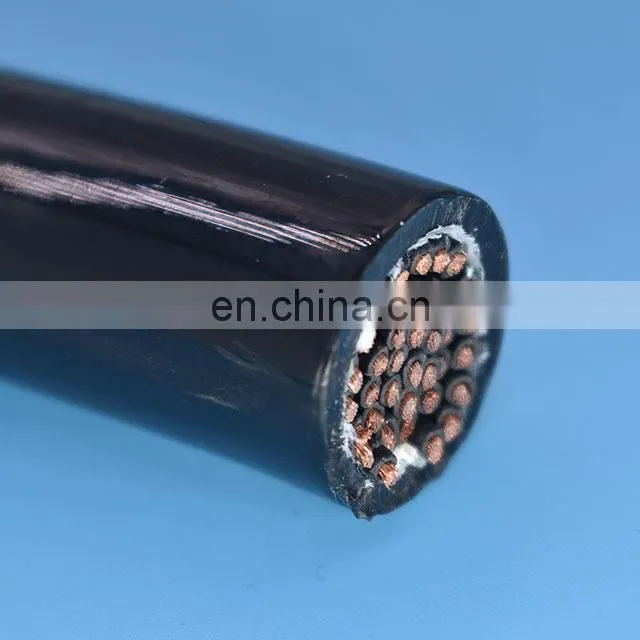

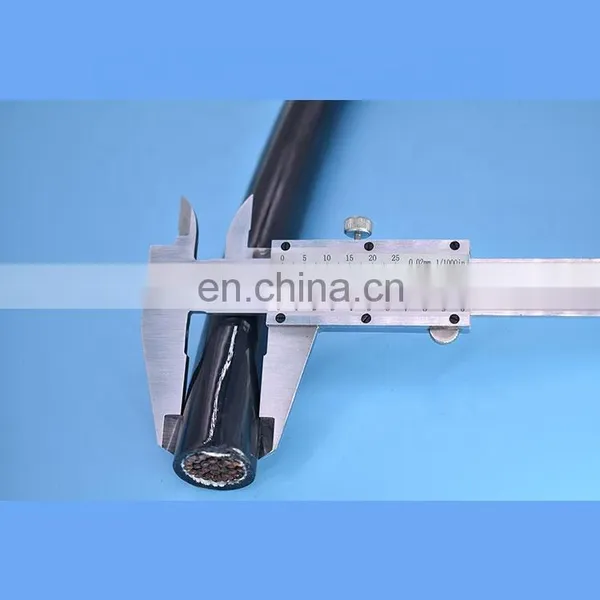

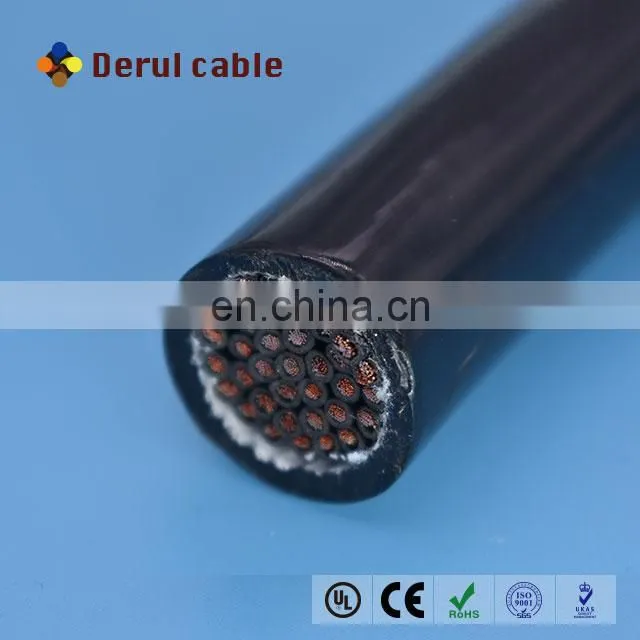

30 core spreader cable drag chain polychloroprene sheathed flexible cable |
Article Number |
DERUL-A767 rov tether/pipe crawler cable/robot cable/drag chain cable |
Constructure |
Conductor+insulator+sheath+shield |
Conductor |
Copper/sliver/aluminum... |
Insulation |
PVC/PE/PUR/TPU/TPE/PU/TPEE... |
Shielding |
Braided tinned copper |
Voltage |
300-1000V |
Size |
According to customer requirements |
Color |
According to customer requirements |
Applications |
ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
MOQ |
Depends on the specifications you need |
Sample term |
Free sample on stock with freight collect |
Product lead time |
3-10 working days after deposit received |
Shipping lead time |
3-5 working days by DHL/FEDEX/TNT/UPS... |
Loading port |
FOB Shanghai |
Payment term |
T/T, Paypal, 30% edposit advanced, 70% balance before shippment |
Application
Flexible low voltage reeling cable for application under high and very high mechanical stresses.
Construction
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
Rated voltage: 0.6/1KV(600/1000V)
Max.permissble operating voltage AC: 0.7/1.2KV
Max.permissble operating voltage DC: 0.9/1.8KV
AC Test Voltage: 3.5KV(5 Min.)
Temperature range: -40℃ till +80℃
Operating temperature: -40℃ till +80℃
Max. tensile load on the conductor: 15N/mm2
Min.bending radius: Acc.to VDE 0298 part 3
Travel speed: Basket operation:160m/min
Construction
Conductor: Fine stranded bare/tinned copper
Insulation: PE (polyethylene)
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: PUR (polyurethane)
Sheath color: Grey(RAL 7001), Black(RAL 9005) or Orange(RAL 2003)
Technical data
Max.permissble operating voltage AC: 0.7/1.2KV
Max.permissble operating voltage DC: 0.9/1.8KV
AC Test Voltage: 3.5KV(5 Min.)
Temperature range: -40℃ till +80℃
Operating temperature: -40℃ till +80℃
Max. tensile load on the conductor: 15N/mm2
Min.bending radius: Acc.to VDE 0298 part 3
Travel speed: Basket operation:160m/min
Derul Cable (Shanghai) Co., Ltd,
1. Flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
2. Drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
3. Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
4. Flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system. Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
Q1: What can I get from your company?
A1: Our company, Derul Cable is a professional company that specialized in different cables specially in ROV cables, flexible cables, underwater cables, flat elevator cables and so on. We can not only provide you qualified products but also excellent services. Let us help you to grow your business!
Q2: What is your MOQ?
A2: If we have products in our stock, there is no MOQ. For customized cables, the MOQ is 100 meters or more. It depends on the specifications you need.
Q3: How can you ensure your product quality?
A3: We can provide samples before you place the bulk order. So you can check the product quality through the sample. We are a company that aims to provide high quality and good service to our customers. The products are using qualified raw materials. Our products are under CE requirements.
Q4: Do you do OEM service?
A4: Yes, we can customied the products for our customers. Please advise the detailed specifications you need. We will evaluate your needs and give our professional suggestions and best offer.
Q5: When can I receive the goods after I payed?
A5: Usually it will take 7 days to receive the goods.
Q6: What if I payed the money and you don't send the goods to me?
A6: It will never happens to you. We have trade assurance order on alibaba which can guarantee your order from beginning to the end.
