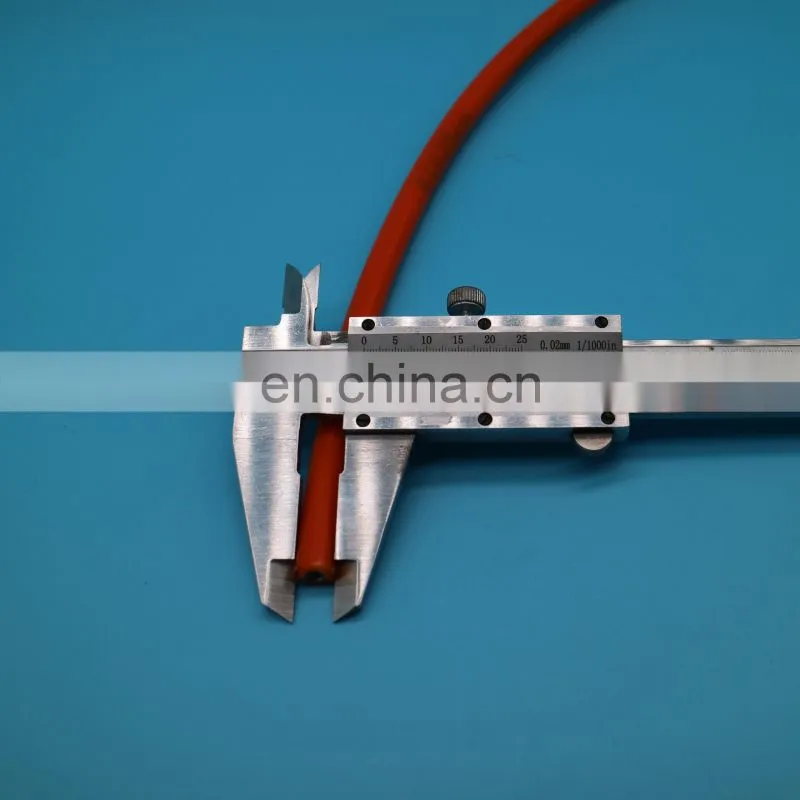

Pipe inspection robot 5 core shielded cctv camera flexible cable
- 1000 per Month
- T/T Credit Card
- PVC 3 core flat submersible cable pump flat cable festoon
- 14 core PUR flexible cable drag chain system coax cable
- Flexible Stranded Copper 8 cores black PUR manipulator Cable
- 6 core towline cable flexible trailing cable
- Double sheathed polurethane cable PU EFCY highly flexible PU-CY screened cable
- Flexible 24x0.5mm towline cable LiYCY cable
Product Description
Product Name | Pipe inspection robot 5 core shielded cctv camera flexible cable |
Article Type | DERUL-A967 rov tether/pipe crawler cable/robot cable/drag chain cable |
Constructure | Conductor+insulator+sheath+shield |
Conductor | Copper |
Insulation | PE |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |
Diameter | Customized |
Sheath Color | Customized |
Applications | ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 3-10 working days after payment received |
Shipping lead time | 3-5 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, full payment before shipped. Negotiable. |
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
Derul Cable (Shanghai) Co.,Ltd
We provide four series of products such as:
- flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
- drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
- Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
- flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system.
Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
