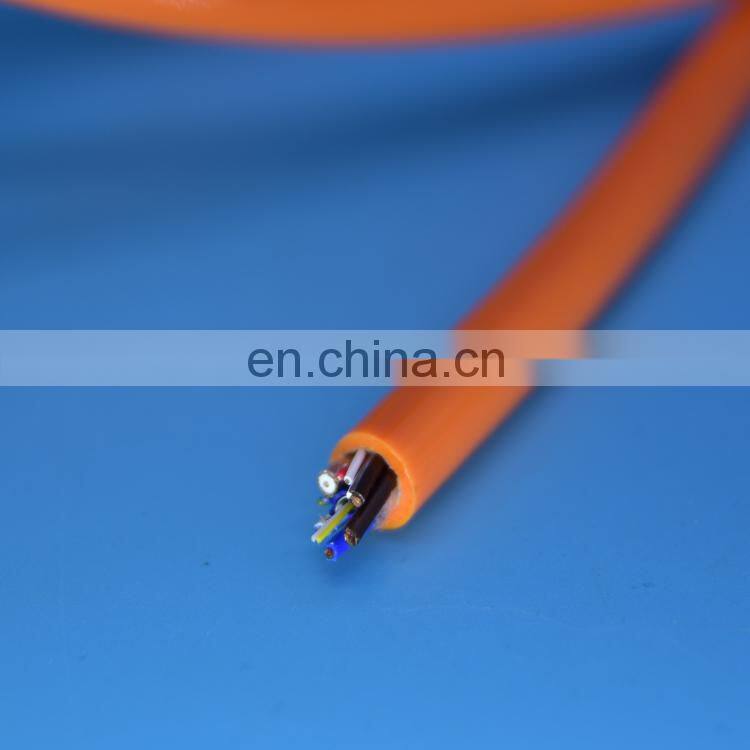

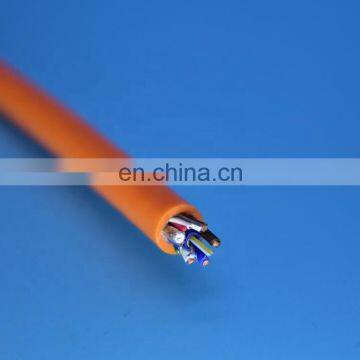

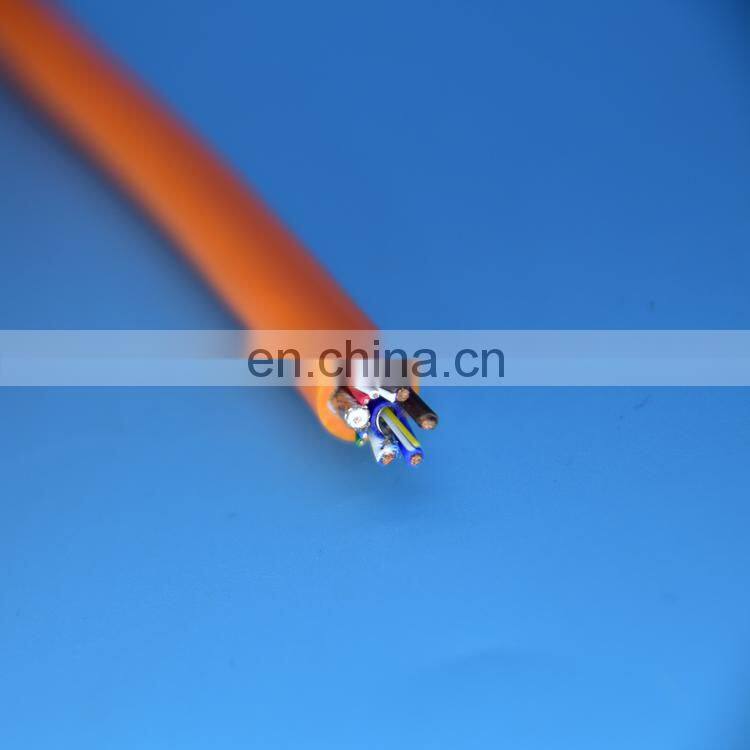

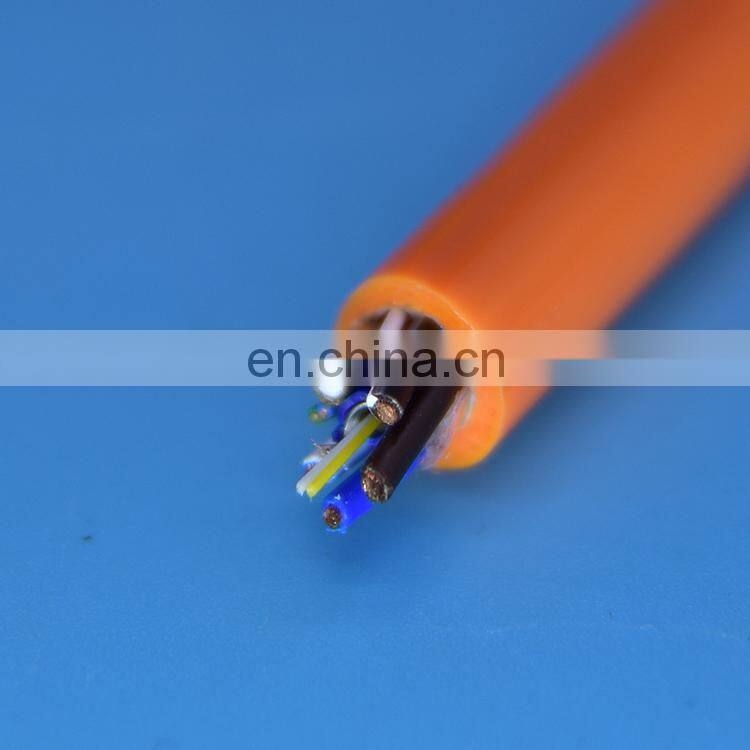

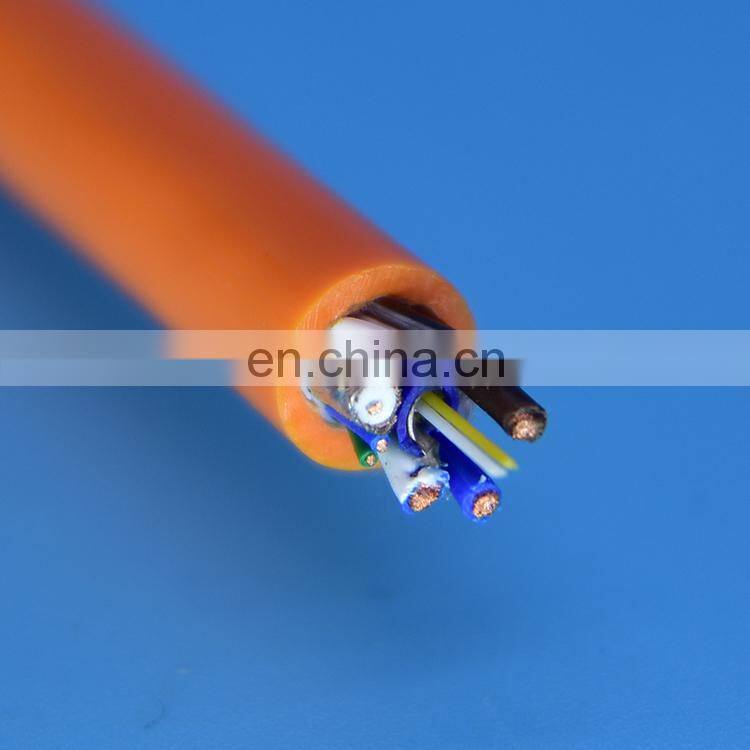

PUR jacketed Bending resistant sewer pipe inspection robot cable

CCTV detection cable, pipeline robot cable, endoscope probe cable pinpoint the underground pipeline clogging point, ahead of time to explore the risk of sewer oil dredging, underground "meridian" has the pipeline robot "doctor" pipeline robot application. It can be said to make up for the past this kind of pipeline can not enter the blank inspection.

Pipeline CCTV inspection robot cable is conducive to pipeline maintenance and pipeline operation system.
1. System component: CCTV detector is equipped with advanced camera, crawler, cable disc and lighting system. The crawler can carry different types of lenses (such as rotating lens, direct looking lens, fish-eye lens), which are completely controlled by a monitor with a remote control lever after connecting with the main controller through a cable disc, such as the advance and retreat of the crawler. Steering, stopping, speed adjusting, lift, drop, light adjustment, horizontal or vertical rotation, focusing, changing, etc. Simple operation, easy to move. Can carry on the image processing, records the camera rotation and the localization. With High quality image recording and text editing functions. Its main work is a four-wheel drive camera car and a computer. According to different pipe diameter, you can choose different models of CCTV, through which you can see the situation in the pipeline. This equipment is used to check the pipe section when it is impossible to know the situation in the project.
2, working operation procedure: before the pipeline CCTV inspection, the pipeline cleaning and the pipeline dredging must be carried out through the high-pressure washing car to ensure the smooth passage of the CCTV vehicle. Then the pumping machine is used to pump the sewage from the well into the nearby sewage well, and when the depth of water in the observed pipeline does not drown the CCTV camera, it can be put into operation. In the console, the CCTV core operating system is responsible for issuing control instructions, such as crawling system forward, retrogression, camera system lighting, receiving image data and storing image data to storage devices.

 Pipe robot Camera Cable Characteristics

1, the pipeline robot cable signal transmission ability is strong, the robot operation is mainly according to the instruction operation issued by the computer, but how the computer signal can be transmitted to the robot, mainly depends on the cable. The quality of robot cable is good, so the signal transmission time is short and accurate, but if the cable quality is not good, it will affect the signal transmission, can not let the robot work immediately, execute the command.

2. The excellent wear resistance of pipeline robot CCTV detection cable is the requirement of robot cable, because the cable will be damaged for a long time. If the cable wear resistance is not good, it will affect the internal strand, so that robot impermanence, together with a safety hazard will occur. Therefore, the selection and application of robot cable must have good wear resistance.

3. The long service life of the robot endoscope detection cable and the long service life of the robot cable can save resources and improve the working efficiency only if the long service life of the cable is long. Long service life of the cable for the enterprise is the preferred.

4. The core wire, beam twisting, shielding and sheathed material in the robot torsional signal cable must be able to withstand the extrusion force generated by bending or the change of radial pressure caused by torsional motion. Therefore, different "soft" structural elements, such as viscose fiber, PTFE elements or other filling elements, are used in highly flexible robot cables, which can better absorb torsional force. Technical parameters and conformance of Robot Cable

Conductor: fine bare copper multi-strand wire with high flexural strength for robotic pipeline cables, with reference to VDE 0295/IEC 60228 type 6 conductor structure

Insulation material: high mechanical properties insulating TPE material

Unit shielding: high torsion strength tin plated copper wire shield, optical coverage 85%

Outer sheathing: low viscosity, halogen free, PUR polyurethane mixture, special wear resistance and high flexibility, pipeline CCTV test cable is also suitable for towing chain

Operating temperature range: (mobile installation) -30 °C to 90 °C, bending radius 7.5 x d

Use temperature range: (fixed laying) -40 °C to 100 °C, bending radius 4 x d

Maximum velocity: 180 °/ s

Maximum torsional acceleration: 60 °/ s

Travel distance: suitable for robot and 3D motion applications

Torsion: endoscope detection cable can be customized torsion per 0.5 m cable length / -360 °

Radiation intensity: high

Insulation resistance: > 20g Ω xcm

Rated voltage: 300 / 500V (with reference to DIN VDE 0245) 450V/750V 600V/1000V

Conformity certification:ISO9001,CE

Pipeline robot is a kind of machine that can automatically walk along the inside or outside of a small pipe, carry one or more sensors and operating machinery, and carry out a series of pipeline operations under the remote control of the workers or the automatic control of the computer. Instrument integrated system. CCTV detection cable, pipeline robot cable, endoscope detection cable carrying platform, also known as "moving carrying platform", is a platform with motion mechanism as the carrier, according to the production tasks can selectively carry the relevant testing equipment platform. Has been used in military, electricity, petroleum and petrochemical, non-destructive testing, municipal, archaeology and other industries.

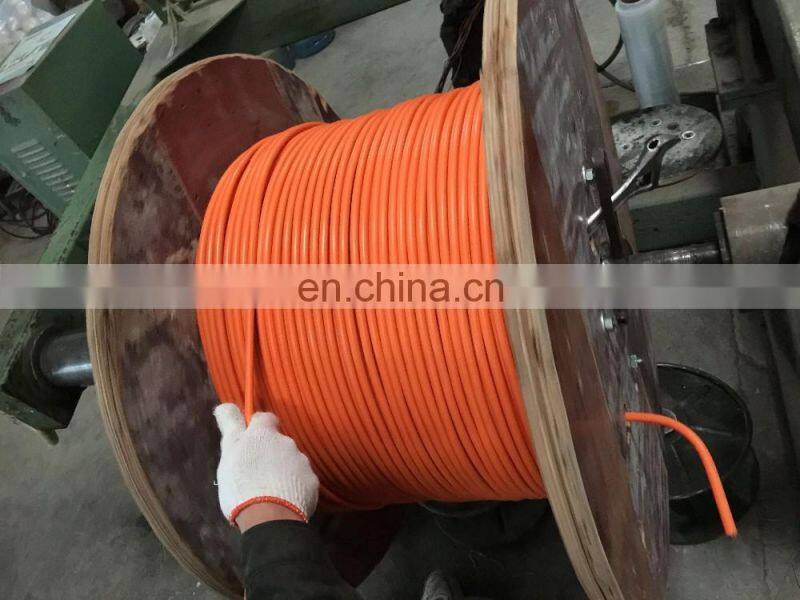

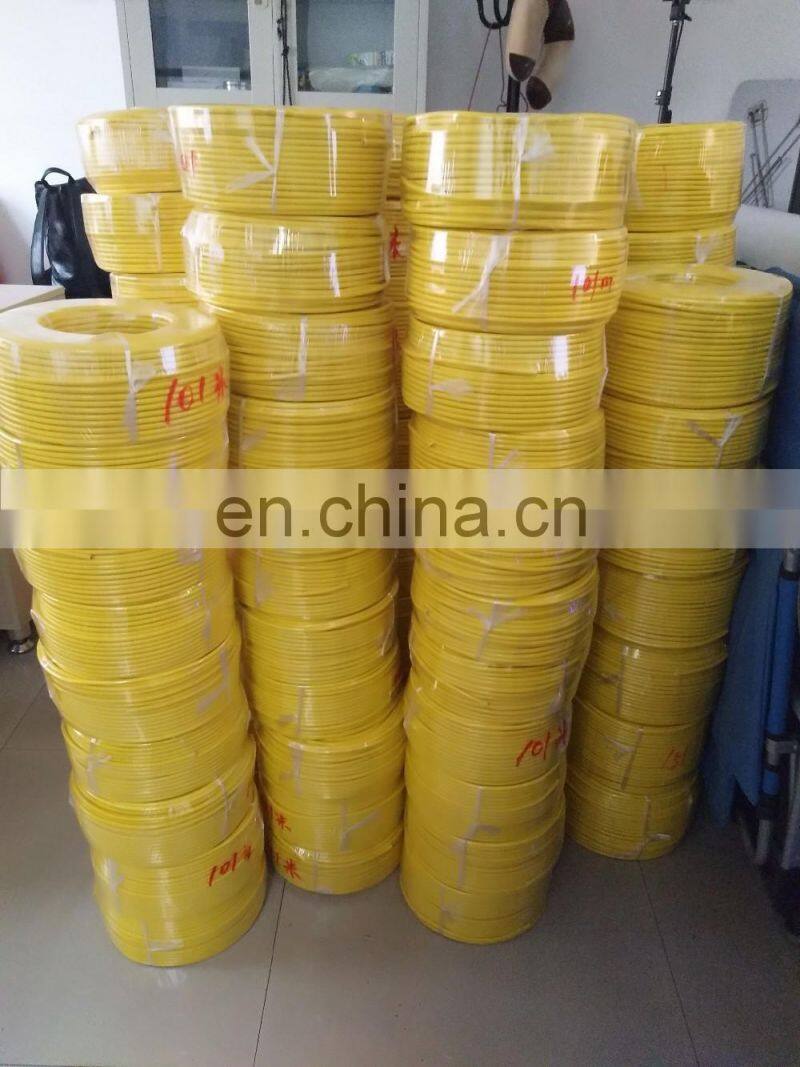

                        Wooden Drum

                            Carton Box

                      Plastic waterproof film
