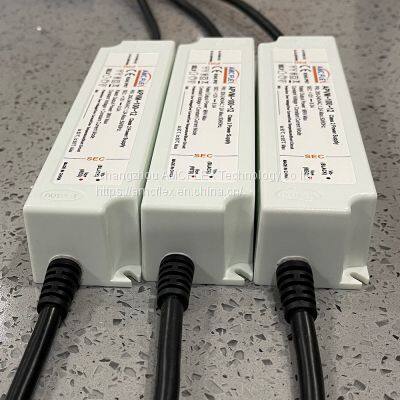

Model: APVM-100-48
Constant voltage LED Power Supply.
Input Voltage: 200-240VAC 47-63Hz 1.2A max
Output Voltage: 48V
Output Current: 2.1A
Output Rated Power: 100W max
Inrush Current: 70 Amps max. at 230VAC/50Hz,full load
No Load Power Consumption: ＜0.5W
TC Max: 80 ℃, Ta:50 ℃
Protections: Short Circuit /Over Current /Over Voltage
/over temperature protection
Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery
Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery
Over Current Protection (OCP): Yes,hiccup mode, auto-recovery
Working TEMP.: -30°C to -70°C
Working Humidity: 10%-90% RH non-condensing
StorageTEMP.,Humidity and altitude: -40℃ ~+70°C ambient
temperature and a 5% to 95% relative humidity range throughout
an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: CE CB SELV ROHS
MTBF: 100Khours minimum at full load at 25℃ ambient
Dimension: 162 x 43x 32mm (L x W x H)
Packing: 0.44Kg; 32pcs/15.1Kg/0.26CBM
Model NO |
Input Voltage |
Output Voltage |
Output current |
Output Power |
Efficiency |
Dimension/mm |
APVM-100-12 |
200-240Vac |
12V |
0-8.0A |
0-96W |
89.5% |
162.5x42.5x32 |
APVM-100-24 |
200-240Vac |
24V |
0-4.0A |
0-96W |
90% |
162.5x42.5x32 |
APVM-100-36 |
200-240Vac |
36V |
0-2.77A |
0-100W |
91% |
162.5x42.5x32 |
APVM-100-48 |
200-240Vac |
48V |
0-2.1A |
0-100.8W |
92% |
162.5x42.5x32 |
