100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer

100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer thumbnail-1
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer thumbnail-2
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer thumbnail-3
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer thumbnail-4
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer thumbnail-5
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer photo-1
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer photo-2
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer photo-3
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer photo-4
100W 36V 2.77A IP67 Waterproof LED Driver Plastic Housing SELV CLASS 2 Transformer photo-5
US$ 12 - 14 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
AMCFLEX
Place of Origin:
China
Model Number:
APVM-100-36
Contact Supplier Request Quote Chat Now
Changzhou AMCFLEX Technology Co Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AMCFLEX
Place of Origin China
Model Number APVM-100-36
Output Power Other, 100W
Output Type Single
Output Current 2.77A
Output Frequency 50/60hz
Output Voltage 36 V
Input Voltage 220V

Model: APVM-100-36

Constant voltage LED Power Supply.

Input Voltage: 200-240VAC 47-63Hz 1.2A max

Output Voltage: 36V

Output Current: 2.77A

Output Rated Power: 100W max

Inrush Current: 70 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: ＜0.5W

TC Max: 80 ℃, Ta:50 ℃

Protections: Short Circuit /Over Current /Over Voltage

/over temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

Over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C to -70°C

Working Humidity: 10%-90% RH non-condensing

StorageTEMP.,Humidity and altitude: -40℃ ~+70°C ambient

temperature and a 5% to 95% relative humidity range throughout

an altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 162 x 43x 32mm (L x W x H)

Packing: 0.44Kg; 32pcs/15.1Kg/0.26CBM


Model NO

Input Voltage

Output Voltage

Output current

Output Power

Efficiency

Dimension/mm

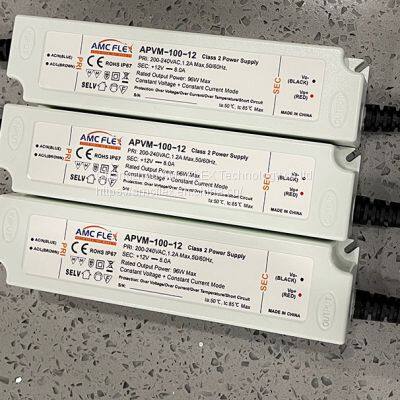

APVM-100-12

200-240Vac

12V

0-8.0A

0-96W

89.5%

162.5x42.5x32

APVM-100-24

200-240Vac

24V

0-4.0A

0-96W

90%

162.5x42.5x32

APVM-100-36

200-240Vac

36V

0-2.77A

0-100W

91%

162.5x42.5x32

APVM-100-48

200-240Vac

48V

0-2.1A

0-100.8W

92%

162.5x42.5x32
