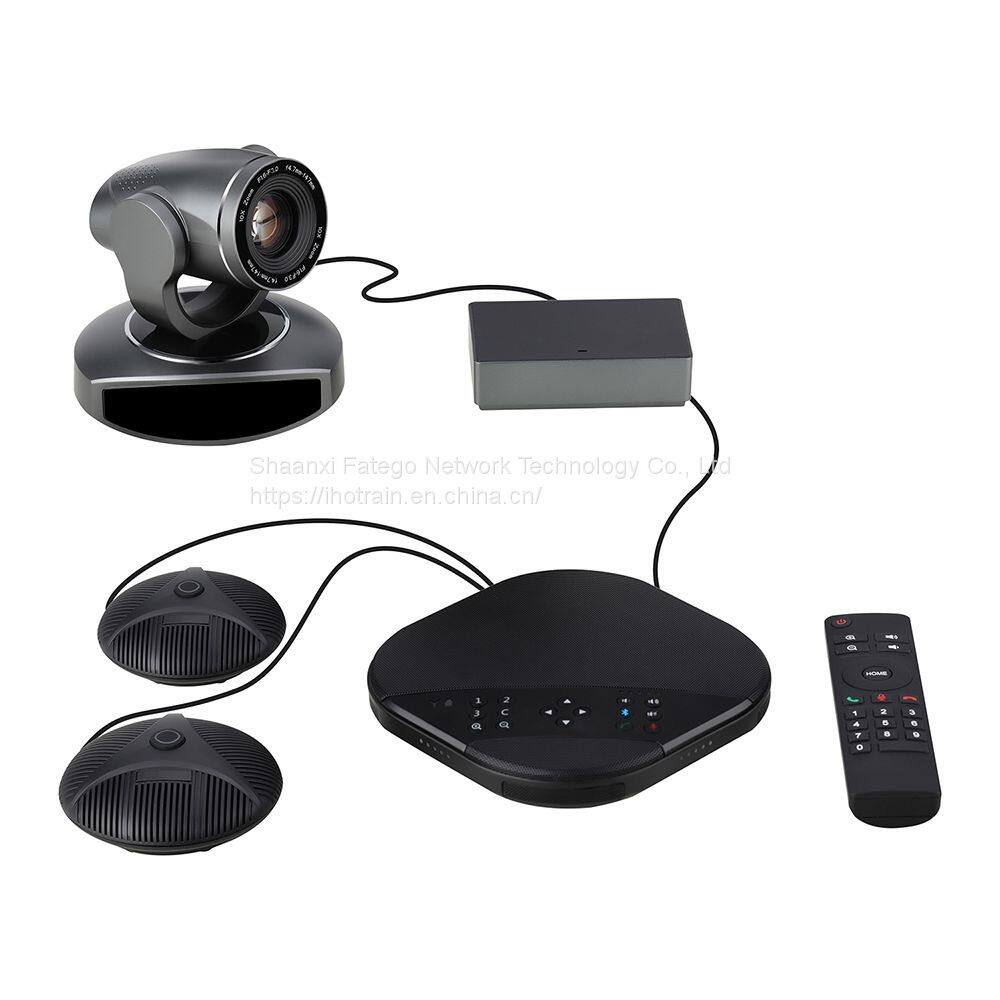

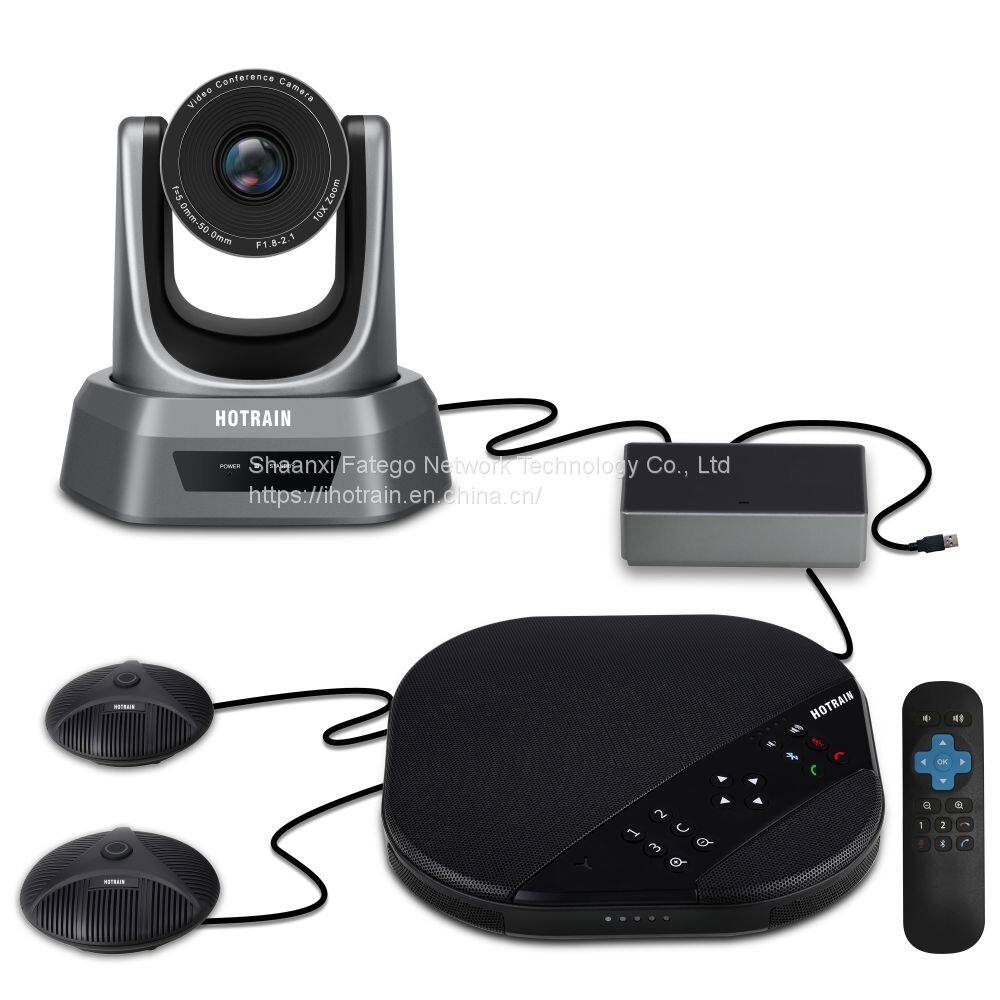

Hotrain FXAO3000E 10x Zoom 3 Presets Din6 Conference Video Camera Microphones Docking Station Audio/Video Conferencing System Set

Product   Picture

Sensor

1/2.8   inch high quality HD CMOS sensor

Effective   Pixels

2.07Mega   pixel, 16：9

Video   Format

176x144/320x240/320x180/352x288/640x480/720x480/720x576/

640x360/800X600/960X540/1024X576/1024X768/1280X720/

1920X1080P30/25/20/15/10/5

Optical   zoom lens

10x   optical zoom,  f＝4.7   to 47mm

View   angle

20°（tele）   51.3°（wide）

Aperture   value

F1.8-   F2.8

Minimum   Illumination

0.5Lux   (F1.8, AGC ON)

DNR

2D   & 3D DNR

Presets:

3   presets

White   Balance

Auto   / Manual/ One Push/

3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus

Auto/Manual/One   Push

Aperture/Electronic   Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/   Dynamic level adjustment

Video   Adjustment

Brightness,   Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>55dB

Rotation   angle

Pan:   -125°-+125°, Tilt:-30°-+30°

Control   speed

Pan:   0.1 -65°/sec, Tilt:0.1-35°/sec

Preset   speed

Pan:   65°/sec, Tilt: 35°/sec

Output   interface

DIN6

Dimensions   (L×W×H)

151.64×131.25×154.5mm

Product   Picture

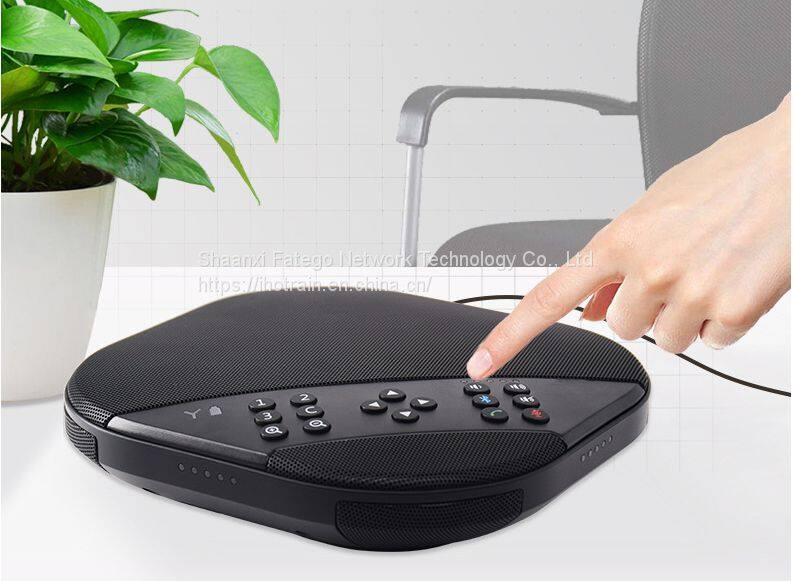

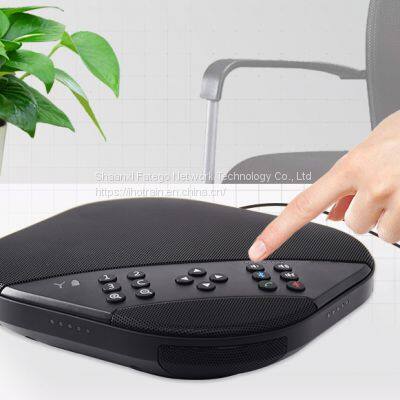

Voice   technical parameters

Acoustic   Echo cancellation（AEC）:   >65dB

Echo   length cancellation:≥400ms

Bidirectional   noise compression（NC）:   <25dB

Automatic   Direction finding Technology of Intelligent microphone（EMI）

Automatic   gain control（AGC）

Audio   parameters

Microphone   frequency response:100Hz-22KHz

Speaker   frequency response:100Hz-22KHz

Speaker   volume:95dB at the most

Microphone   sound-pickup diameter: 6 meters, 360 degrees full range

Bluetooth

Bluetooth   devices available

IR   Reception

Angle:   360°

Distance:   10m

IR   Transparent transmission available

Expansion   Mics (optional)

2 optional external microphones can make the   sound-pickup diameter up to 10 meters

Dimensions(L×W×H)

200×200×52mm

Product   Picture

Interface

Mini   DIN6 ×2

Power   interface × 1

Power   switch × 1

Mini   USB interface × 1

Power   supply

EC3800   plug (DC12V)

Adapter   input AC110V-AC220V,output DC12V/1.5A

Connection   Cable

Mini   DIN6 data line × 2

Length:   5m（10m/15m for options）

USB   cable

USB2.0   cable

Compatibility

Support   Windows, Android, iOS and Linux

Drive-free   automatic recognition of cameras, microphones and speakers

Compatible   with Zoom, Lynch, Vidyo, Skype for business and etc.

Dimensions(L×W×H)

100×62×27mm

Accessories

Power   adapter, USB2.0 cable, remote controller, 2 connection cables, manual.
