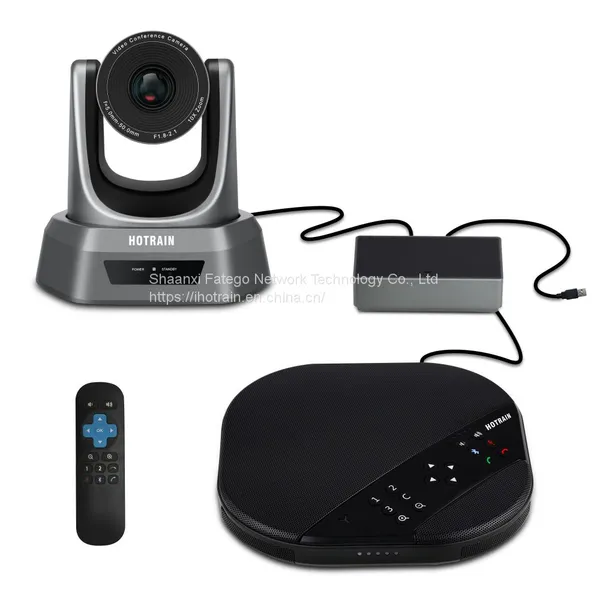

Hotrain FXAO3000 All-in-One Audio/Video Camera Speakerphone Microphone Conferencing Set

Product Picture

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

2.07Mega pixel, 16:9

Video Format

176x144/320x240/320x180/352x288/640x480/720x480/720x576/

640x360/800X600/960X540/1024X576/1024X768/1280X720/

1920X1080P30/25/20/15/10/5

Optical zoom lens

10x optical zoom,  f＝4.7 to 47mm

View angle

20°（tele）   51.3°（wide）

Aperture value

F1.8- F2.8

Minimum Illumination

0.5Lux (F1.8, AGC ON)

DNR

2D & 3D DNR

White Balance

Auto/Manual/One Push/

3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus

Auto/Manual/One Push

Aperture/Electronic   Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/Dynamic level adjustment

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>55dB

Rotation angle

Pan: -125°-+125°, Tilt:-30°-+30°

Control speed

Pan: 0.1 -65°/sec, Tilt:0.1-35°/sec

Preset speed

Pan: 65°/sec, Tilt: 35°/sec

Dimensions   (L×W×H)

151.64×131.25×154.5mm

Product Picture

Voice technical parameters

Acoustic Echo cancellation（AEC): >65dB

Echo length cancellation:≥400ms

Bidirectional noise compression（NC）:<25dB

Automatic Direction finding Technology of Intelligent microphone（EMI）

Automatic gain control（AGC）

Audio parameters

Microphone frequency response:100Hz-22KHz

Speaker frequency response:100Hz-22KHz

Speaker volume:95dB at the most

Microphone sound-pickup diameter: 6 meters, 360 degrees full range

Bluetooth

Bluetooth devices available

IR Reception

Angle: 360°

Distance:10m

IR Transparent transmission available

Expansion   Mics (optional)

2 external microphones optional for connection makes the sound-pickup diameter up to 10 meters

Dimensions(L×W×H)

200×200×52mm

Product Picture

Interface

Mini DIN6 ×2

Power interface × 1

Power   switch × 1

Mini   USB interface × 1

Power supply

EC3800 plug (DC12V)

Adapter input AC110V-AC220V, output DC12V/1.5A

Connection Cable

Mini DIN6 data line × 2

Length: 5m（10m/15m for options）

USB   cable

USB2.0   cable

Compatibility

Support Windows, Android, iOS and Linux

Drive-free automatic recognition of cameras, microphones and speakers

Compatible with Zoom, Lynch, Vidyo, Skype for business and etc.

Dimensions(L×W×H)

100×62×27mm

Accessories

Power adapter, USB2.0 cable, remote controller, 2 connection cables, manual.
