Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera

Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera thumbnail-1
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera thumbnail-2
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera thumbnail-3
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera thumbnail-4
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera thumbnail-5
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera photo-1
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera photo-2
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera photo-3
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera photo-4
Hotrain F3XU 1080P 3x Zoom 1/2.7 2.07MP USB2.0 Full HD Video Conferencing Camera photo-5
US$ 239 - 315 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hotrain
Place of Origin:
China
Model Number:
F3XU
Contact Supplier Request Quote Chat Now
Shaanxi Fatego Network Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hotrain
Place of Origin China
Model Number F3XU
Color White
Optical Zoom < 10x
High Definition Support 1080P (Full-HD)

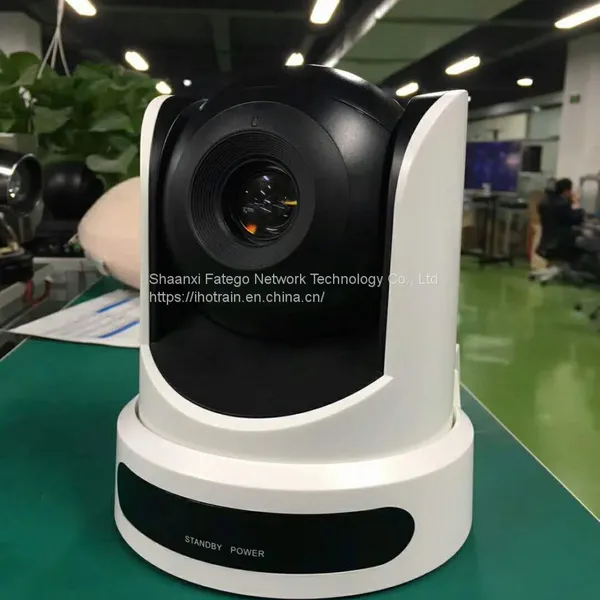

Hotrain F3XU 1080P 3x Zoom USB2.0 Full HD Video Conferencing Camera


Full Function USB Interface

Full function USB interface support audio, support compressed video output,

Low-light

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.

Remote Control

The camera can be controlled remote via communication protocol RS232.

H.264 Slice/ H.264 SVC Support

Support Slice and SVC encoding mode, it adapts to video conference via USB interface.

Dual stream

Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure

Dual power supply

Support two power supply (DC 5V, DC 12V)


Key specifications:

1080P Full HD

3X zoom

1/2.7'' CMOS

2.07 mega pixels

USB2.0

High quality HD CMOS sensor

Max. resolution 1920 x 1080

Frame Rate: 30fps in 1080P


Specification:

Camera

Model

F3XU

Video resolution

1080P, 720P, 540P, 480P,   360P, 240P etc.

Sensor

1/2.7'' CMOS

Effective Pixel:

2.07 Mega Pixel

Scanning Mode

Progressive

Lens

3x, f4.7mm-46.3mm, F1.8-F2.8

Digital Zoom

3x

Minimal Illumination

0.5 Lux @ (F1.8, AGC ON)

Shutter

1/30s - 1/10000s

White Balance

Auto, 3000K/Indoor, 4000K,   5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual, VAR

Backlight Compensation

Support

Digital Noise Reduction

2D&3D Digital Noise   Reduction

Video S/N

≥55dB

Horizontal Angle of View

58.5° -6.5°

Vertical Angle of View

35.1° - 3.6°

Horizontal Rotation Range

±170°

Vertical Rotation Range

-30°- 90°

Pan Speed Range

2.7° - 35.7°/s

Tilt Speed Range

2.7° - 31.5°/s

H & V Flip

Support

Image Freeze

Support

Number of Preset

255

Preset Accuracy

0.1°

USB 2.0

Operate System

Windows 7, Windows 8,   Windows 10, Mac OS X, Linux, Android

Color System / Compression

YUV 4:2:2 / H.264 / MJPEG

Video Format

H.264 AVC: max to   1080P@30fps
  H.264 SVC: max to 1080P@30fps
  MJPEG: max to 1080P@30fps

USB Video Communication   Protocol

UVC 1.0

UVC PTZ

Support

Input / Output Interface

USB Interface

USB2.0: Type B female jack

Communication Interface

RS232 In: 8pin Min DIN,

Max Distance: 30m,

Protocol:   VISCA/Pelco-D/Pelco-P

Power Jack

JEITA type (DC IN 12V)/USB B   type（DC IN 5V）

Using general specifications

Input Voltage/Power supply

DC 12V

Current Consumption

0.5A (Max)

Operating Temperature

-10°C - 40°C (14°F - 104°F)

Storage Temperature

-40°C - 60°C (-40°F - 140°F)

Power Consumption

5W (Max)

MTBF

>30000h

Size

141.3mm x 153mm x 163.6mm

Net Weight

1.153 KG
