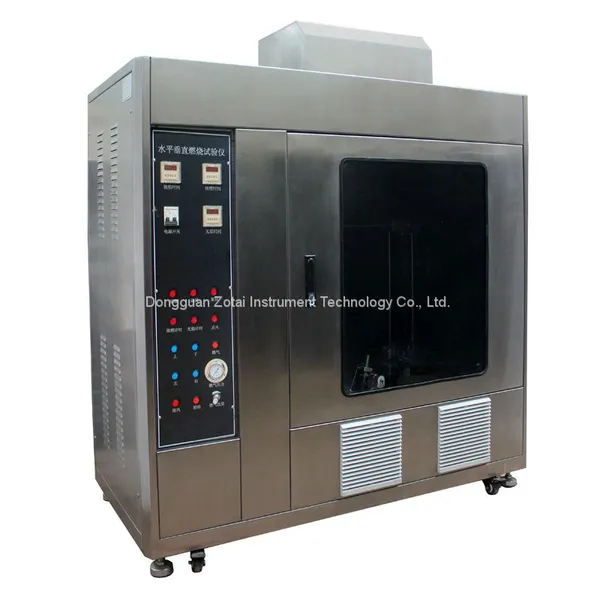

UL 94 Horizontal Flammability Tester and Vertical Burning Tester
Testing room area |
0.5m3 |
Timing accuracy |
1s |
Simple size requirements |
Length:125±5mm,Thickness:3.0±0.2mm Width:3.0±0.2mm |
Specification |
Tube length100±10mm,Diameter:9.5±0.5 mm |
Titled |
20°45°, 90° |
Height of burner blue flame |
20 mm(Adjustable) |
Time account |
0~9999 times |
Timer |
0~99.99s |
Burner when necessary to manually lift in the vertical direction | |
Main configuration as follows | |
Host box(vertical burning ,burning one level) | |
Burning in part by the Bunsen burner, solenoid valve, high pressure ignition, gas pipes, regulators etc. | |
Inner control box by the fire-breathing, Minting timer, counter etc. burning | |
Equipment description:
This Horizontal and vertical flammability tester is applicable to solid materials and the apparent density measured according to GB6343 not less than 250kg/m2 of foam when placed in the horizontal and vertical with a small flame ignition source ignited combustion after the test. The machine has the use of safe, reliable, easy to operate, and so on.
Meet the standard:
This Horizontal and vertical flammability testr according to national standards GB/T2408-1996 "Test method for flammability of plastic - horizontal and vertical Law," flame-retardant material designed to test equipment.
Meet UL 94 and EN 60695-2-11, IEC 60950
