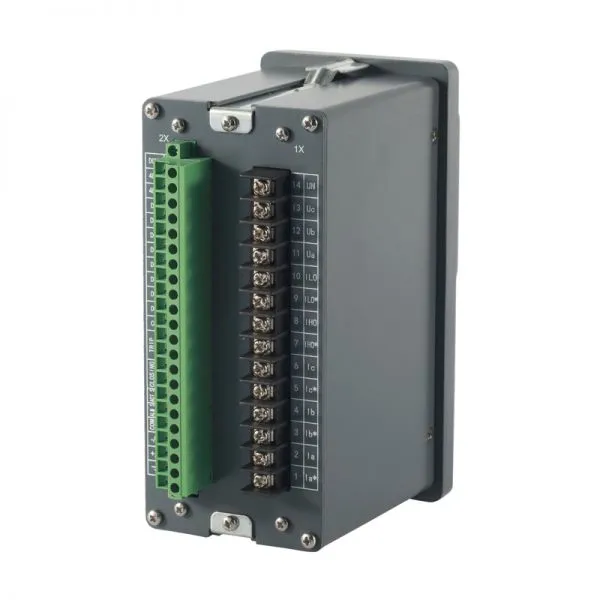

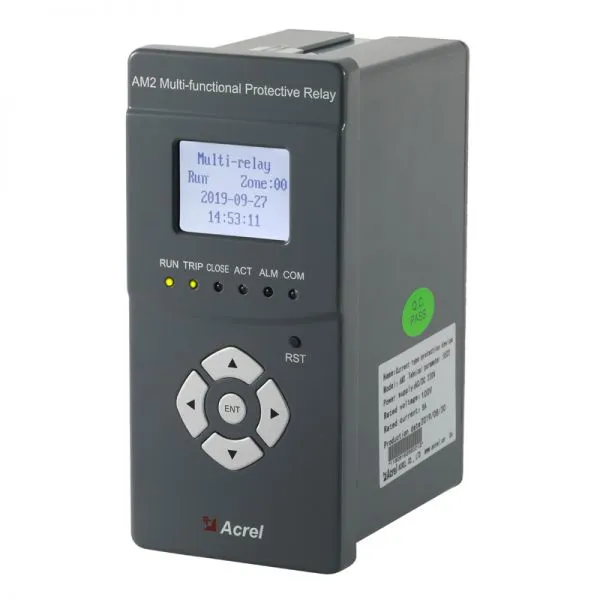

AM2 Protection Device Relay With RS485 Communication Modbus-RTU

● A complete set of protection, related to the application;

● 5 current input, 3 voltage input, 8DI, 4DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V, DC48V, DC24V;

● 1 RS485 serial communication, Modbus-RTU;

● more than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

Charactristics

LCD Display

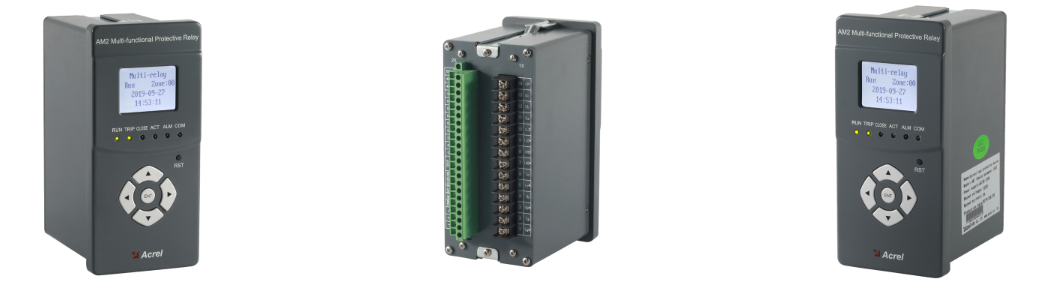

Appearance

Wiring

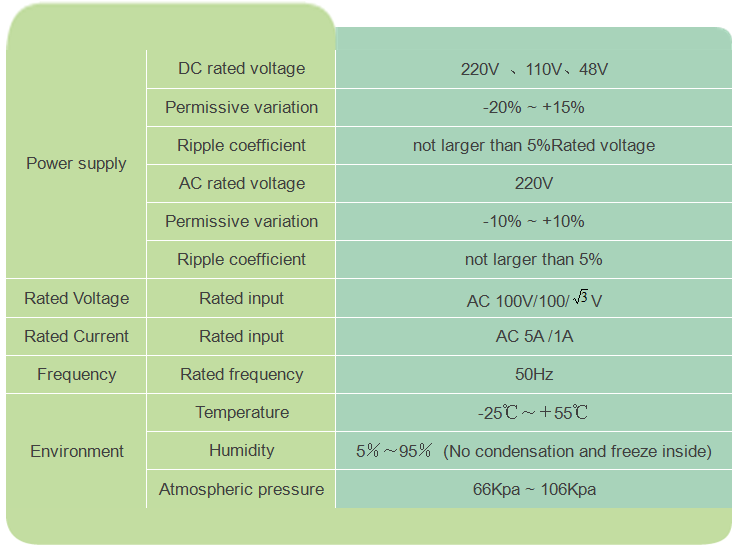

Datasheet
