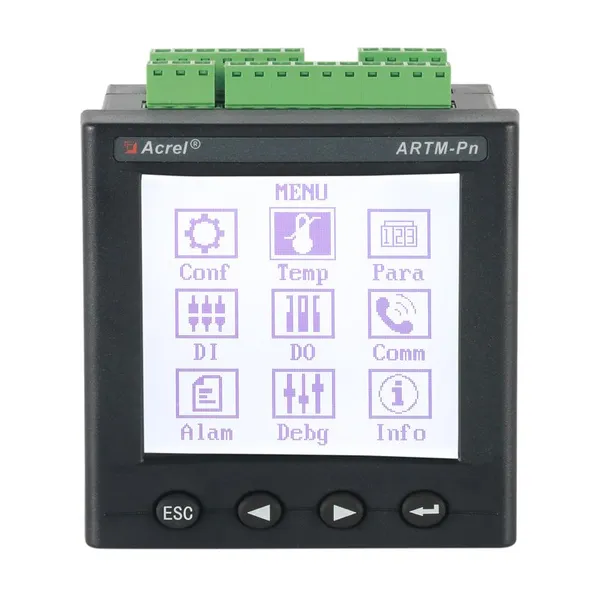

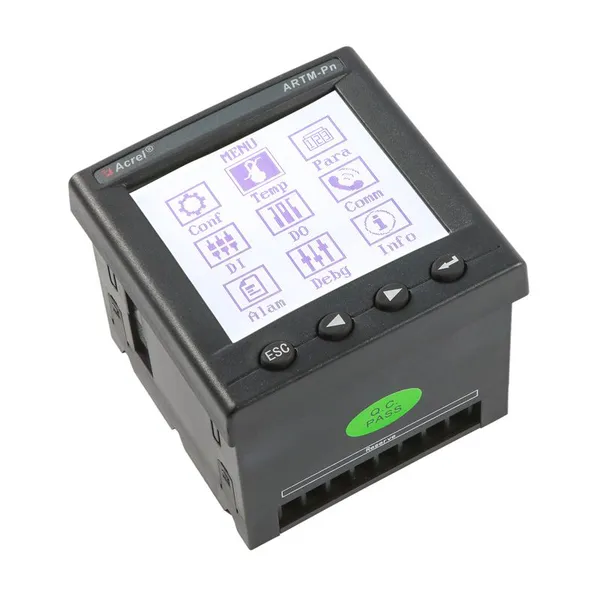

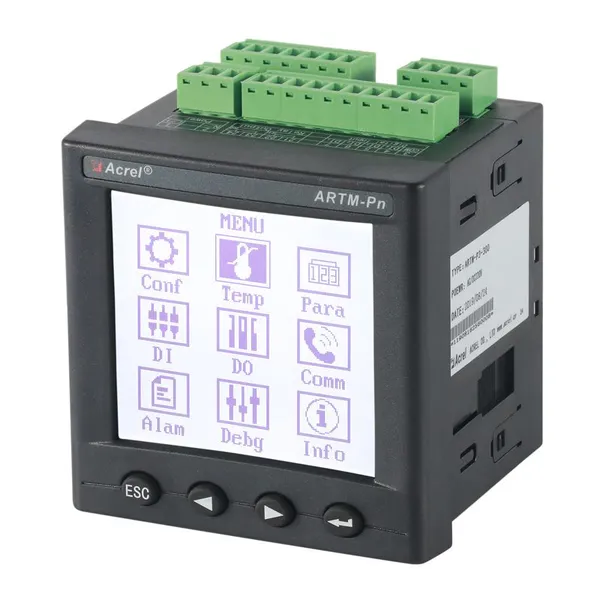

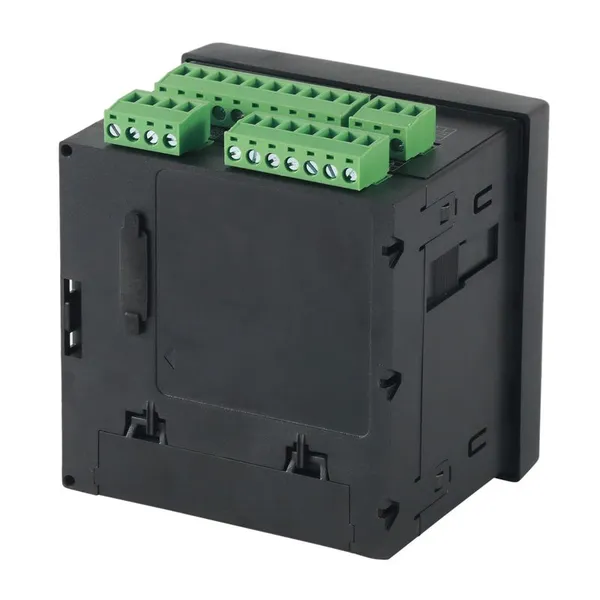

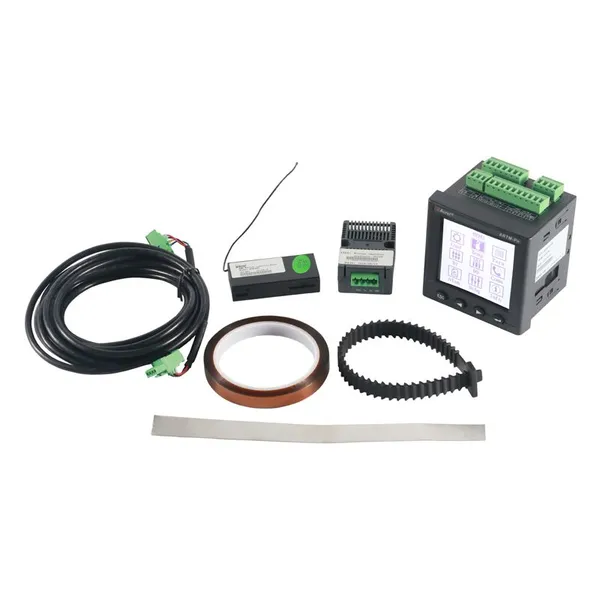

Wireless Temperature Measuring Equipment ARTM-P3-300 With RS485
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ARTM-P3-300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
8 Channel Digital Temp Controller And Measuring Monitor ARTM-8-JCNegotiableMOQ: 1 Piece -
ARTU-K32 Din Rail Mounting Remote Terminal UnitNegotiableMOQ: 1 Piece
-
WHD20R-22 DIN Rail Two Channel Temperature & Humidity ControllerNegotiableMOQ: 1 Piece
-
Wireless Temperature Measuring Equipment With RS485 ARTM-P3-300NegotiableMOQ: 1 Piece
-
Digital Electric Motor Protection Relay ARD2-25 LED DisplayNegotiableMOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ARTM-P3-300
Phase
Three Phase
Operating Temperature
-10℃~55℃
Dimensions
92*92*68mm
Accuracy Class
0.5
Measuring Energy Range
0~99999
ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
● Wireless temperature measurement, maximum measuring 60 points;
● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapt with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU
Charactristics
LCD Display
Function
