Overcurrent IDMT Communication Protection Relay In Power Cabinet AM5-T
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AM5-T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
ARD2F-25+90L Lcd Display Blocking Motor ProtectorNegotiableMOQ: 1 Piece -
AM4-I Zero-voltage Alarm Medium Voltage Protection RelayNegotiableMOQ: 1 Piece
-
DIN Rail Measuring Temperature And Humidity WHD20R-22NegotiableMOQ: 1 Piece
-
Two Channels Temperature And Humidity Controller WHD46-33NegotiableMOQ: 1 Piece
-
Wireless Temperature Measuring Equipment ARTM-P3-300 With RS485NegotiableMOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AM5-T
Size
Miniature
Usage
Protective
Contact Load
Low Power
Protect Feature
Sealed
Theory
Electromagnetic Relay
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.

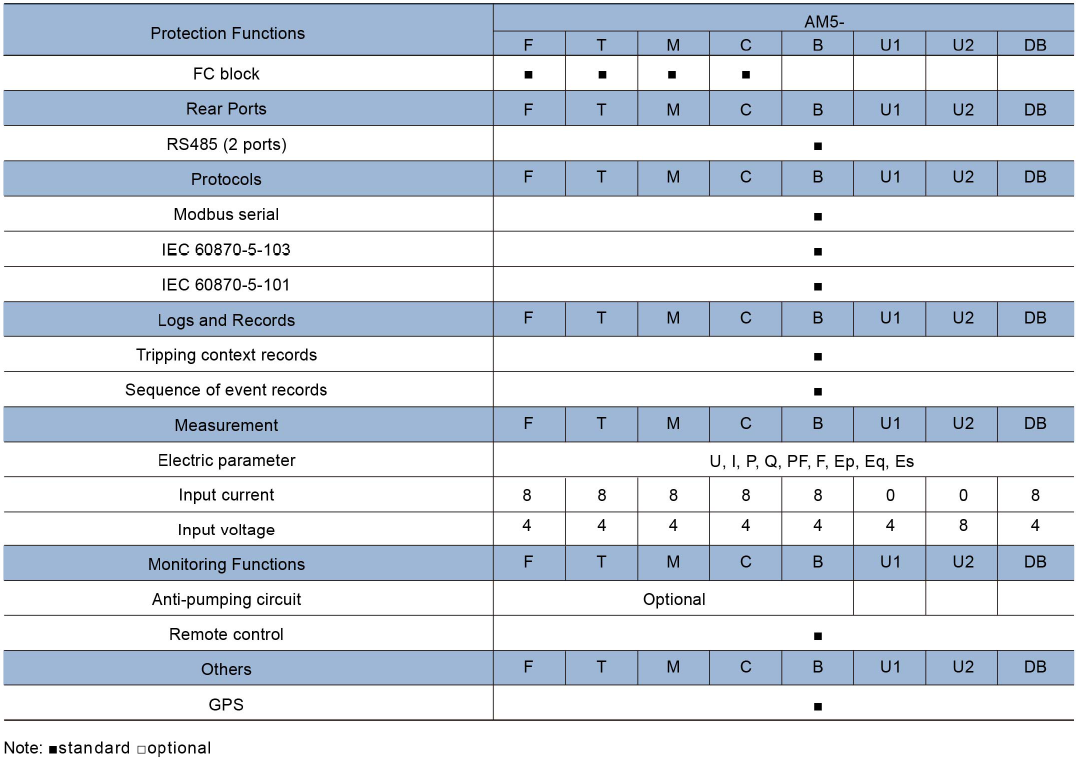

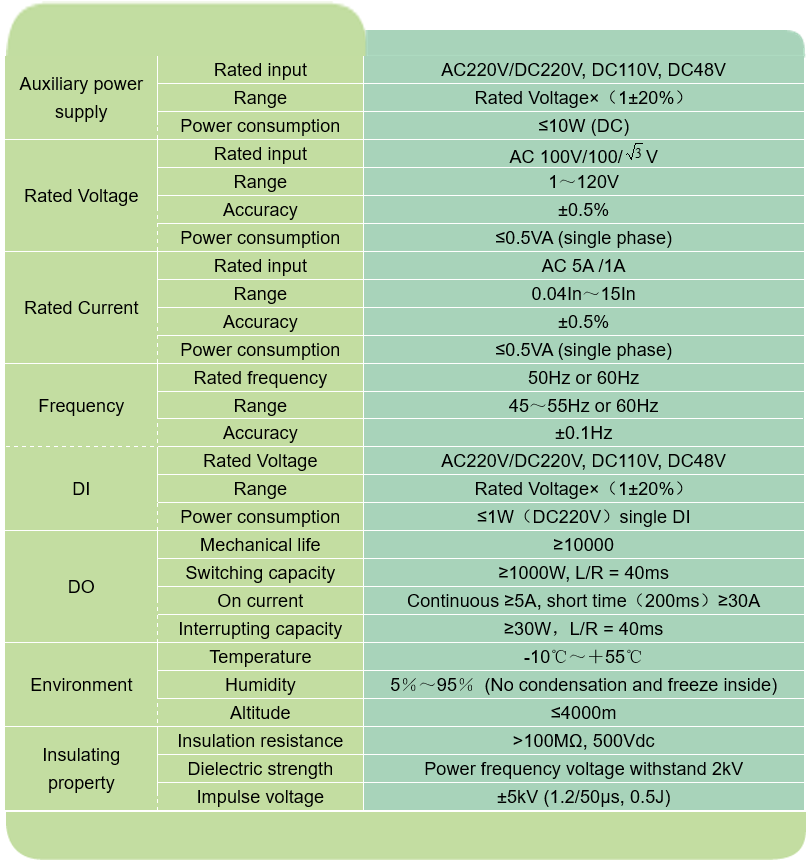

Charactristics

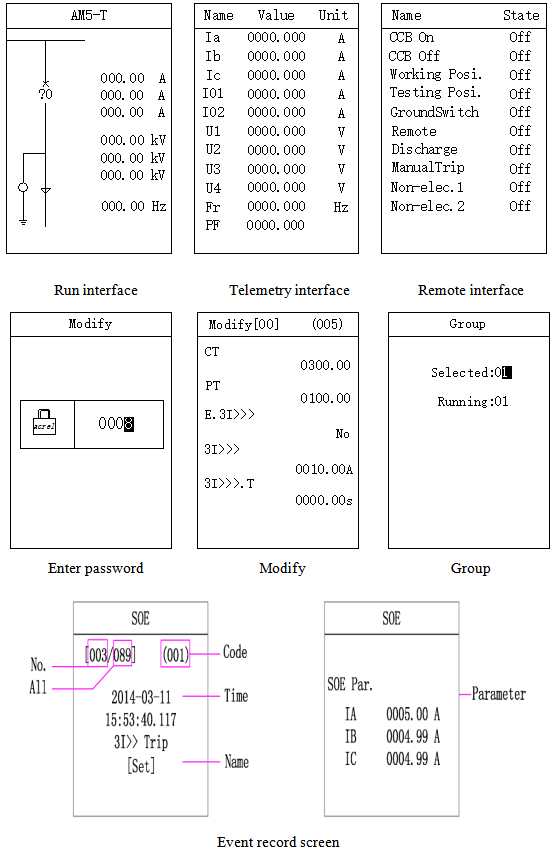

LCD Display

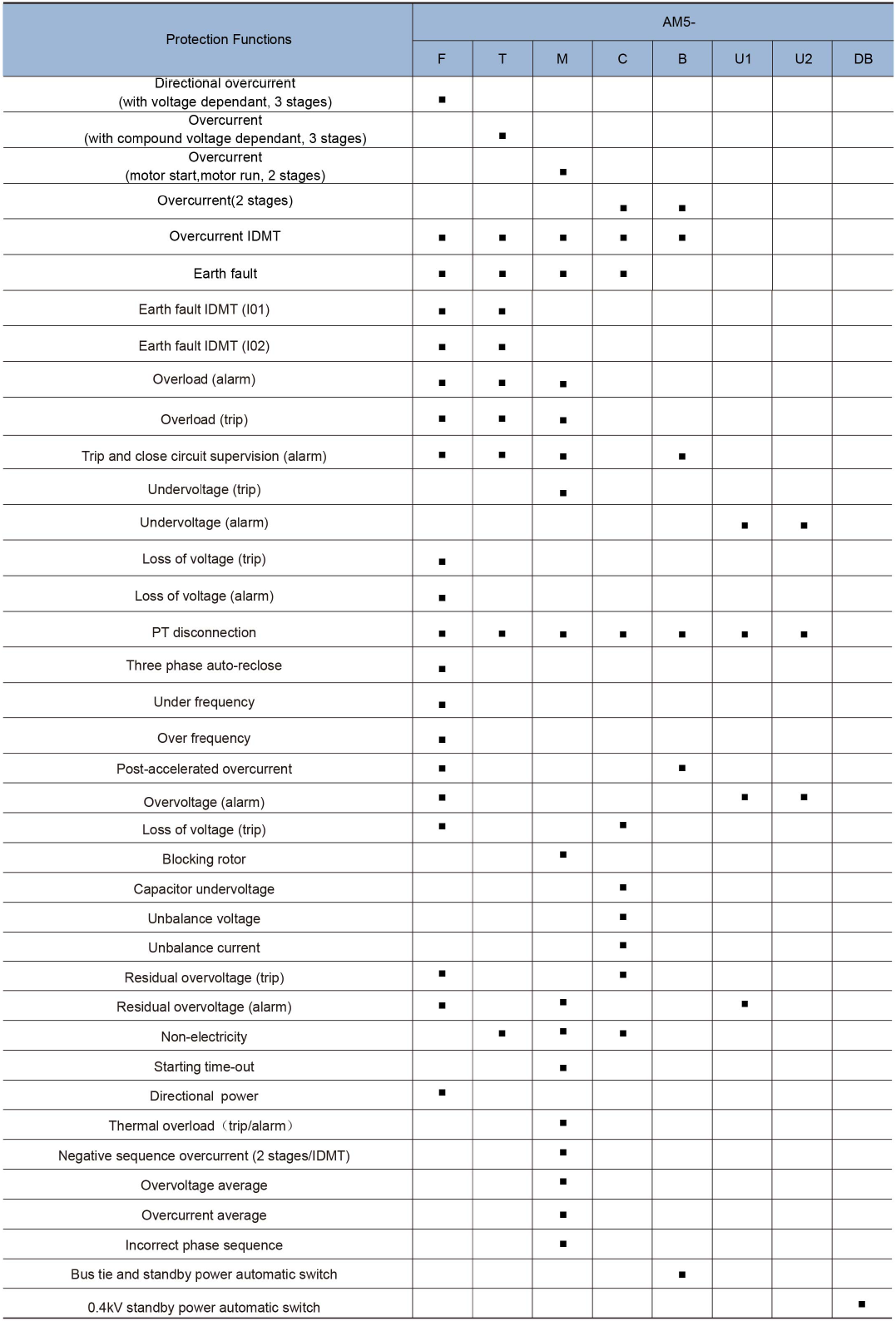

Function

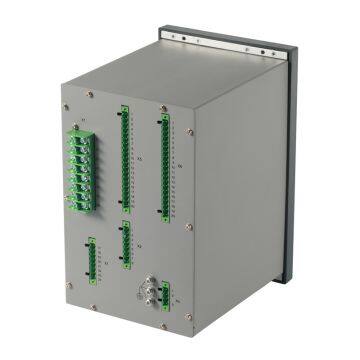

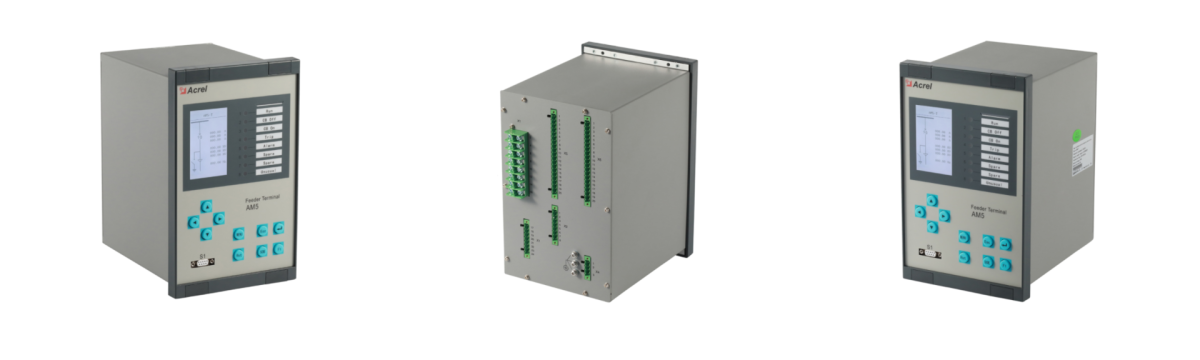

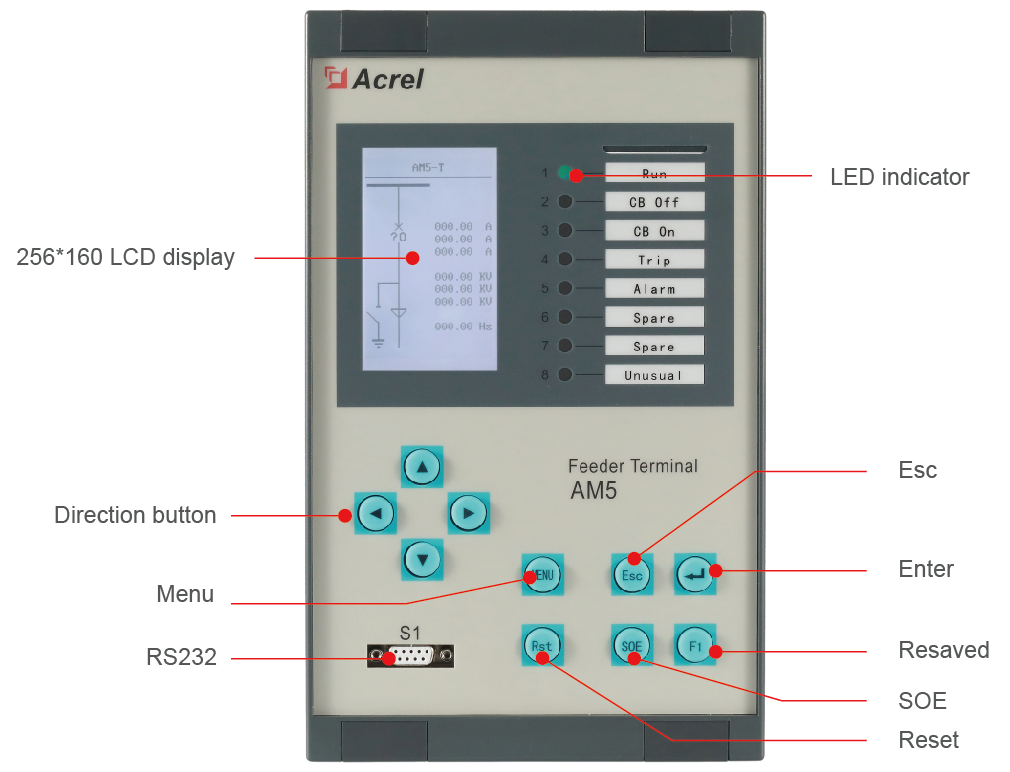

Appearance
Wiring
Datasheet
