Electricity Power Single Phase Din Rail Energy Meter ADL10-E
- Shanghai
- T/T L/C Other
- 7 days
You May Like
-
Three Phase Din Rail Multi-electric Transducer BD-4E
-
Rail-Type Single Phase Energy Meter With External Split Core ACR10R-D16TE
-
Medical IT System Insulation Monitoring Device AIM-M200
-
AIM-M100 Nursing Station Device For Monitoring The Isolation Of Medical Systems
-
Multifunction Energy Meter With External Split Core Current Transformer ACR10R-D16TE
-
BD-3I3 Signal Input Three Phase Current Transducer
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | ADL10-E | Phase | Single Phase | |
| Operating Temperature | -25℃~55℃ | Dimensions | 18mm*96 mm*70mm | |
| Accuracy Class | Class 1 | Measuring Energy Range | 0-999999.9kWh |
Product Description
ADL din rail electric energy meter is with mini size,high accuracy,and it is easy to install.
ADL energy meters can measure electric energy with electrical pulse output function,and also can set
parameters of clock,rate period and so on.
Data can be exchanged between energy meter and super ordinary machine via RS 485 interface.
It is suitable to measure electrical parameters in government and buildings. It can also be used in energy management systems.
Characteristics
Main Functions
Suit for 230V or 120V AC low voltage system
Input current:10(60)A
Measure and display U,I,P,Q,S,PF,kWh,kvarh
8 bits LCD display by turns
Communication(Optional): Modbus-RTU RS485

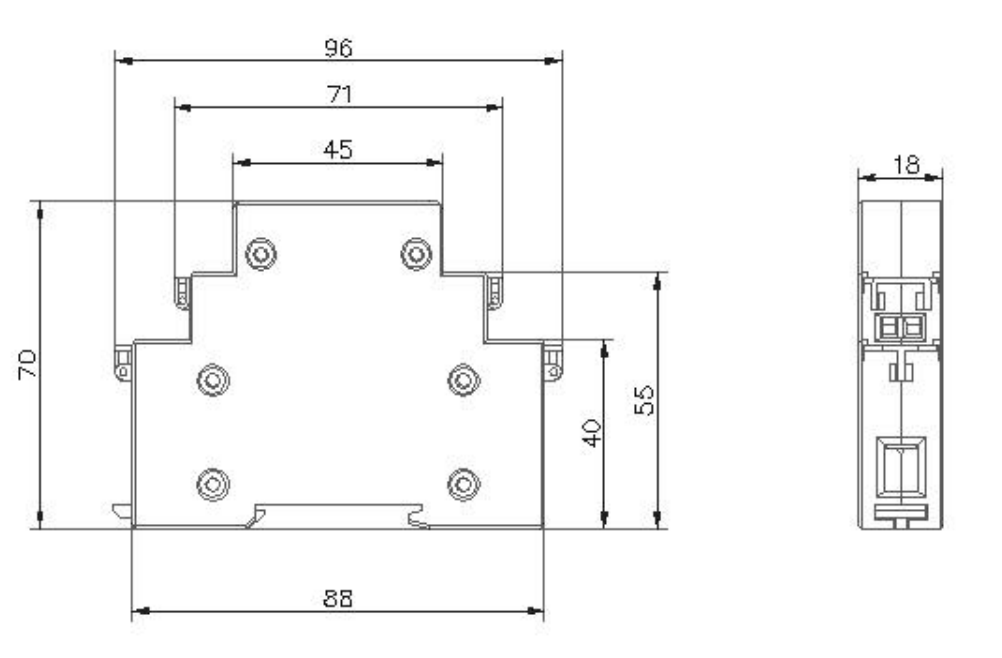

Dimensions and Wirings
Solutions and Applications
Datasheet
