Three Phase DIN Rail Power Meter With RS485 ACR10R-D16TE4

3 pahse din rail energy meter with split core open ct clamps is suitable for power monitoring of grid-connected PV power station,power demand side management and other applications.

It is easy to install without removing primary bus bar and cost-effective.

It can measure electrical parameters including current,voltage, active power,reactive power,apparent power,frequency,power factor and so on.

It supports multi-tariff energy metering,4 quadrant energy metering,harmonic analyse and energy monitoring.

Circuit breaker switch 'remote signaling' and 'remote controlling' can be realized with digital input and relay output.

Characteristics

Main Functions

LCD 8 digits

Parameters measuring:current,voltage,frequeny,power factor,active power,reactive power,apparent power and 4 quadrant energy

Communication:RS485 modbus-RTU

Switching value input and relay output

Optional functions：

Total harmonic distortion(THD)

Up to the 31st harmonic

Max demand

Multi-tariff energy metering

SOE record

Alarm

In-built clock

J（2DO）

K（4DI）

Pulse（2 channel)

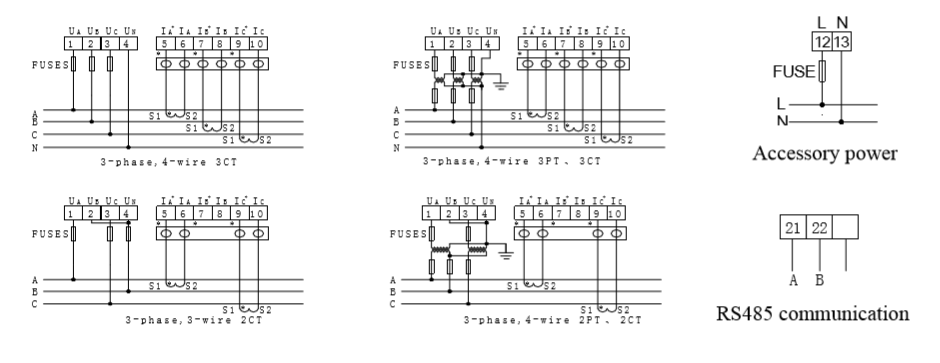

Dimensions and Wirings

Datasheet
