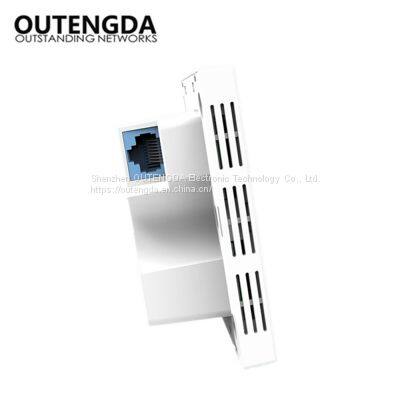

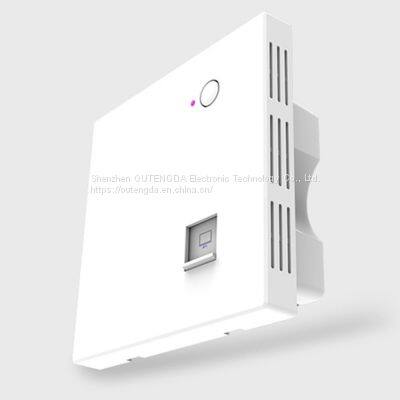

802.11AC 1200M 5G in wall wifi access point for smart home hotel wireless coverage 802.3af standard poe router AP

Chipset

MT7628DAN+MT7613BEN

Flash

8M Flash

DDR

64M DDR

Interface

1*10/100Mbps WAN port

1*10/100Mbps LAN ports

1*WiFi Switch On/Off button

1*Reset button

Power Supply

48V PoE,  IEEE 802.3af  standard

Maxi power consumption

<6W

Dimensions (W X D X H)

87*86*35.8mm

Antenna Type

On board WiFi antenna

2.4G: 3dBi omni antenna

5.8G: 5dBi omni antenna

Wireless Standards

IEEE 802.11ac/n/a 5GHz;

IEEE 802.11n/g/b 2.4GHz

Frequency

5GHz : 5.150GHz～5.850GHz

2.4GHz: 2.4GHz – 2.484GHz

Signal Rate

5GHz: Up to 900Mbps;

2.4GHz: Up to 300Mbps

RF Power (2.4GHz)

802.11b

11M

17±2dBm

1M

19±2dBm

802.11g

54M

16±2dBm

6M

18±2dBm

802.11n HT20

MCS7

15±2dBm

MCS0

17±2dBm

802.11n HT40

MCS7

14±2dBm

MCS0

16±2dBm

RF Power (5GHz)

802.11a

54M

16±2dBm

6M

18±2dBm

802.11n HT20

MCS7

15±2dBm

MCS0

17±2dBm

802.11n HT40

MCS7

14±2dBm

MCS0

16±2dBm

802.11ac HT80

MCS9

13±2dBm

MCS0

15±2dBm

Receive Sensitivity (2.4GHz)

802.11b

11M

-82dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

Receive Sensitivity (5GHz)

802.11a

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

802.11ac HT80

MCS9

-58dBm

MCS0

-82dBm

Wireless

Auto-Channel selection

Distance Control (802.1x Ack timeout)

Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)

BSSID

EVM

2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25dB; 802.11n: ≤-28 dB

5G:  802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB

PPM

±20ppm

Max Access Users

128

Operation Mode

Wireless AP, Gateway, Wi-Fi Repeater

Wireless Security

OPEN、WPA、WPA2、WPA-PSK、WPA2-PSK

ESD - I

Air discharge:±4KV

Surge

Common-mode: ±2KV

LED Status

SYS

Management

System Settings

Web-based configuration / Software AC controller and Hardware AC controller management

Firmware Upgrade

Upgrade firmware via web browser or AC controller

Administration

Admin Password can be configured

System monitoring

Watch dog, Status in hand , useful statistic and Event log

Logs

Supports local logs, logs host, logs file export

Reset

Reset or factory defaults

Backup

Restore settings & configuration of the device to local file, Scheduled reboot

Package Contents

1200Mbps Dual Band wireless access point

Quick Installation Guide

Setting Accessory

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux

Environment

Operating Temperature: -20~55 ℃

Extreme Temperature: -40~70 ℃

Storage Temperature: -40~70 ℃
Humidity: 5%~95% non-condensing
