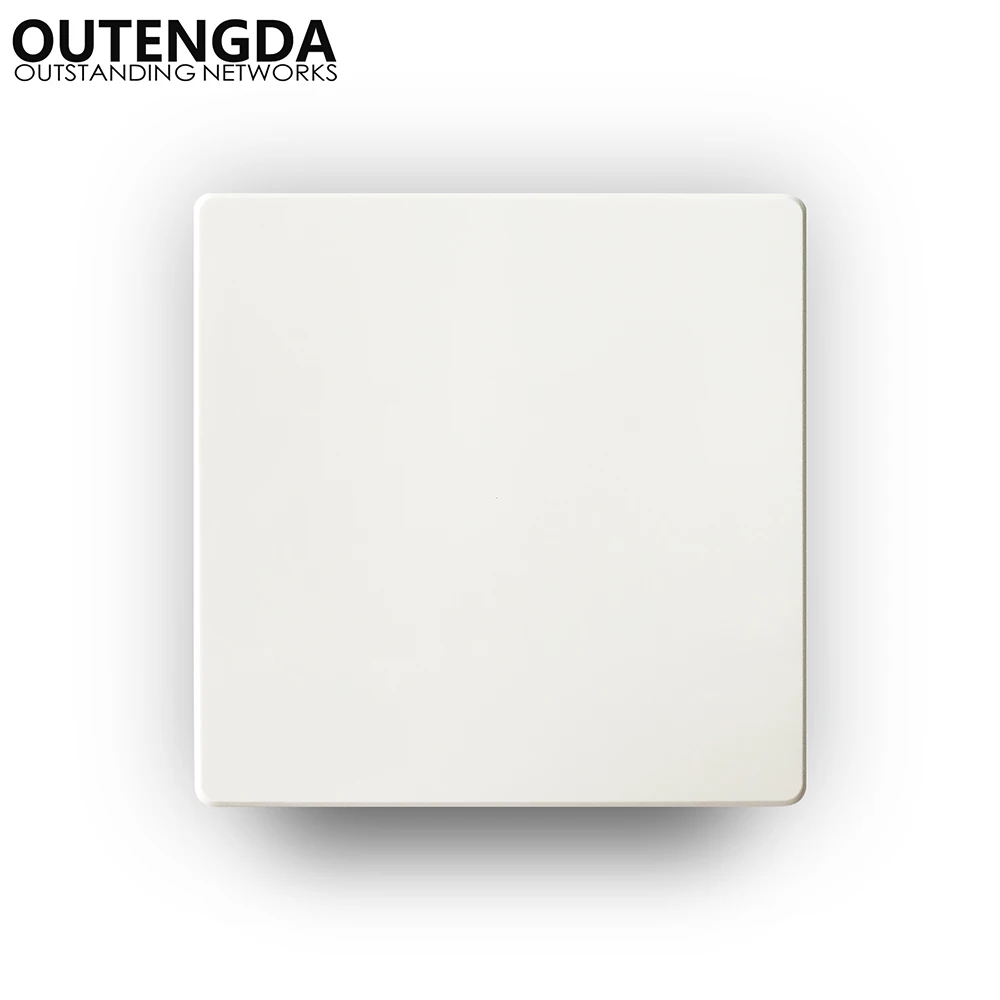

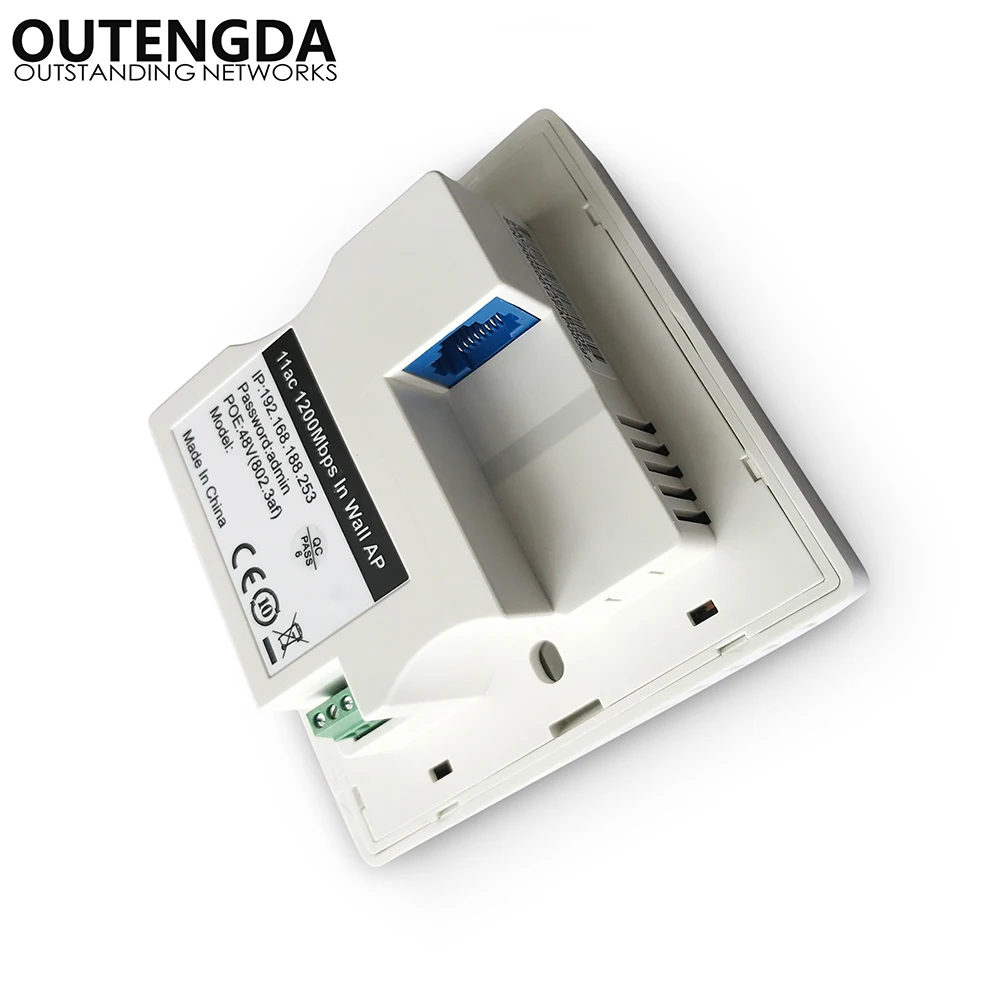

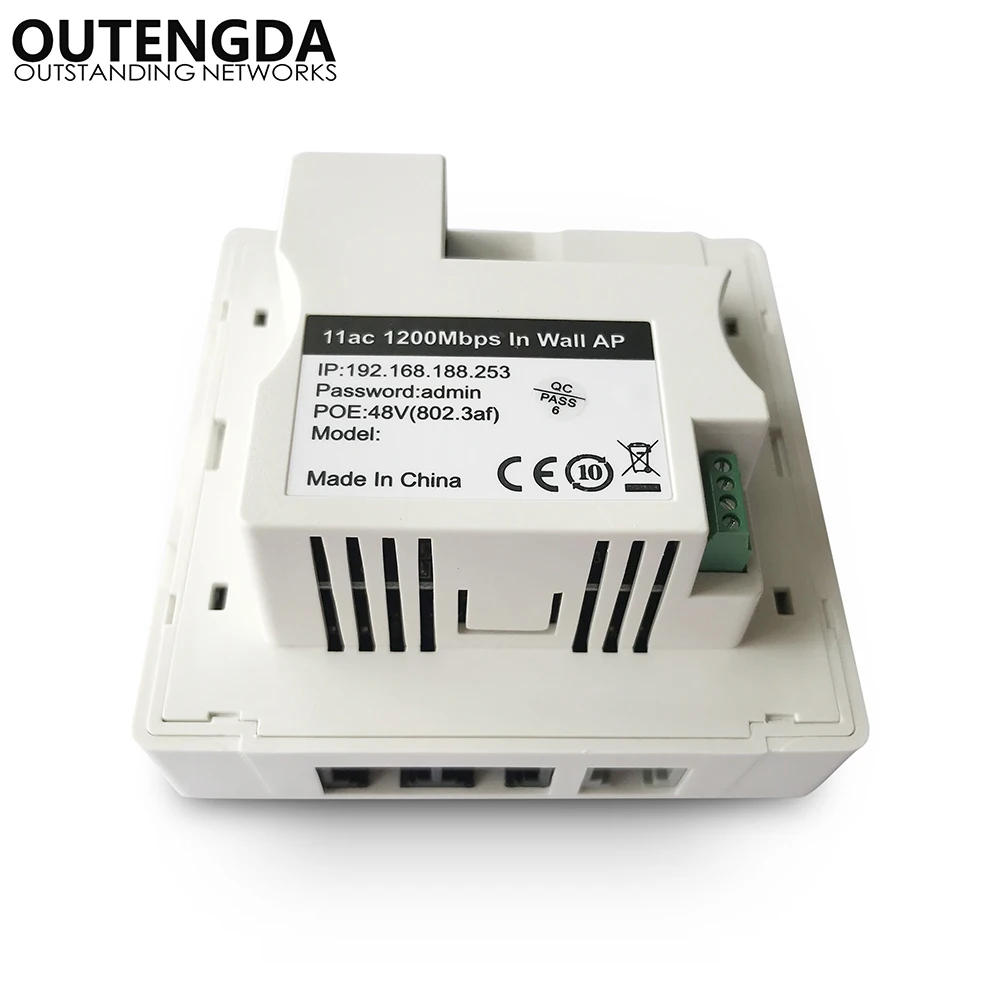

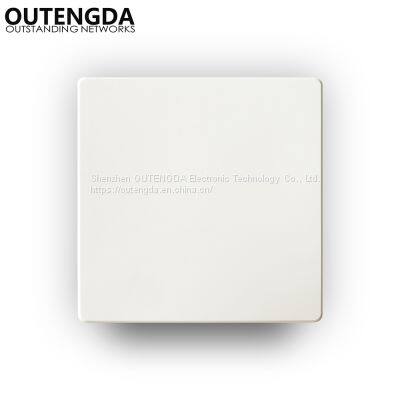

Help Center1200Mbps Full Gigabit Embedded Wireless Panel Router in Wall Access Point With Two Lan RJ45 and RJ11 Phone Port for Smart Hotel
Related Products
-
1200Mbps In-wall Full Gigabit Embedded Wireless Panel Router in Wall Access Point With Two Lan RJ45 and RJ11 Phone Port for Smart HotelUS$ 55 - 65MOQ: 1 Piece -
OUTENGDA 802.11AC 1200M 5G in Wall Wifi Access Point for Smart Home Hotel Wireless Coverage 802.3af Standard Poe Router APUS$ 35 - 45MOQ: 1 Piece
-
118*70mm US Standard in Wall Wireless AP for Hotel Domitory Office Rooms USB Interface Access Point Socket WiFi Extender Router APUS$ 18 - 30MOQ: 1 Piece
-
802.11ax Wifi6 in Wall Access Point With Gigabit Lan Support Poe Pwoer Indoor Soho Hotel Enterprise Multi-port Embedded RouterUS$ 80 - 95MOQ: 1 Piece
-
OUTENGDA 300Mbps in Wall AP WiFi Access Point Router Wireless Socket for Hotel Wi-Fi Project Support AC ManagementUS$ 15 - 25MOQ: 1 Piece
Pls click to enter the different model, thanks.
HARDWARE FEATURES | |||||
Model |
MFAP630 |
||||
Chipset |
QCA9563 + QCA9887 +QCA8334 |
||||
Flash |
16M |
||||
DDR |
128M |
||||
2.4G working frequency band |
2.4GHz – 2.484GHz |
||||
2.4G WIFI transmission protocol |
802.11b / g / n |
||||
5G working frequency band |
5.150GHz～5.850GHz |
||||
5G WIFI transmission protocol |
802.11a / n / ac |
||||
SSID hiding |
stand by |
||||
Maximum rate |
1200Mbps |
||||
Max Access Users |
100+ |
||||
RF Power (2.4GHz) |
802.11b |
11M |
16±2dBm |
1M |
18±2dBm |
802.11g |
54M |
15±2dBm |
6M |
17±2dBm |
|
802.11n HT20 |
MCS7 |
14±2dBm |
MCS0 |
16±2dBm |
|
802.11n HT40 |
MCS7 |
13±2dBm |
MCS0 |
15±2dBm |
|
RF Power (5GHz) |
802.11a |
54M |
13±2dBm |
6M |
15±2dBm |
802.11n HT20 |
MCS7 |
12±2dBm |
MCS0 |
14±2dBm |
|
802.11n HT40 |
MCS7 |
11±2dBm |
MCS0 |
13±2dBm |
|
802.11ac HT80 |
MCS9 |
10±2dBm |
MCS0 |
12±2dBm |
|
Receive Sensitivity (2.4GHz) |
802.11b |
11M |
-85dBm |
1M |
-94dBm |
802.11g |
54M |
-72dBm |
6M |
-90dBm |
|
802.11n HT20 |
MCS7 |
-70dBm |
MCS0 |
-88dBm |
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
Receive Sensitivity (5GHz) |
802.11a |
54M |
-74dBm |
6M |
-90dBm |
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-88dBm |
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
802.11ac HT80 |
MCS9 |
-58dBm |
MCS0 |
-80dBm |
|
2.4G EVM |
802.11b_11M: ≤-10dB ；802.11g_54M: ≤-25 dB ；802.11n_MCS7: ≤-28 dB |
||||
5G EVM |
802.11a_54M: ≤-25 dB ；802.11n_MCS7: ≤-28 dB ；802.11ac_MCS9: ≤-32 dB |
||||
ppm |
±20ppm |
||||

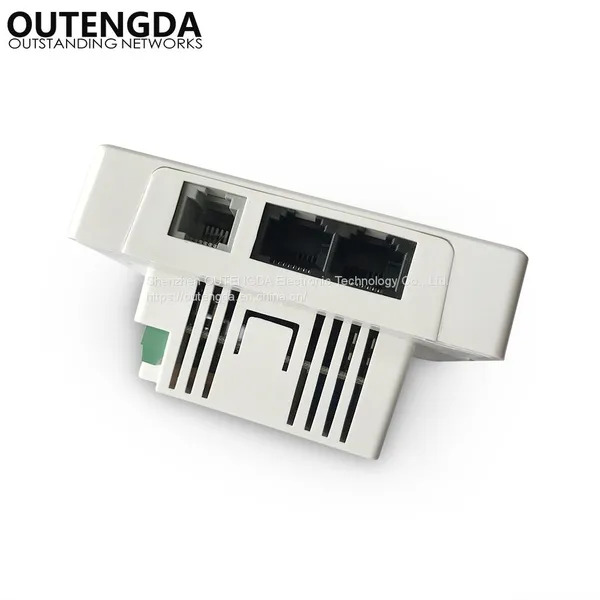

LAN |
2*10/100/1000M Adaptive LAN port |
||||
WAN |
1*10/100/1000M Adaptive WAN port |
||||

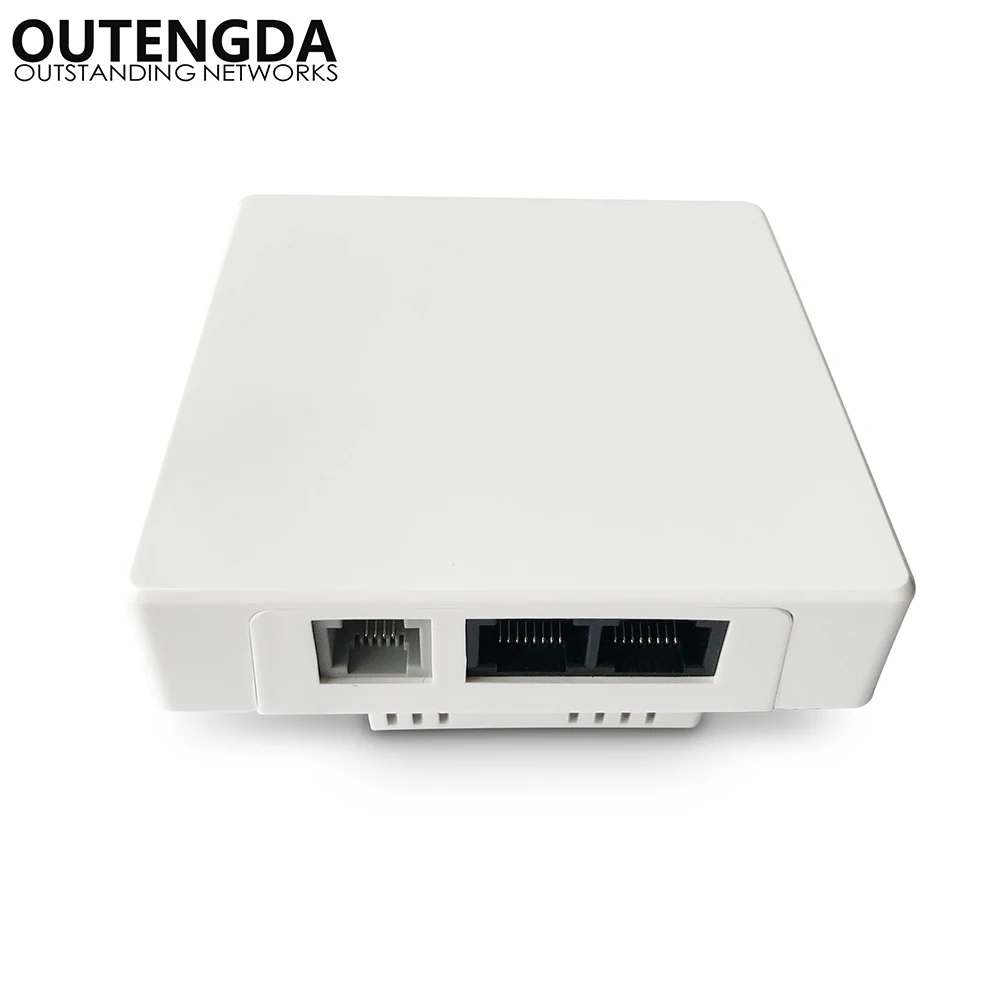

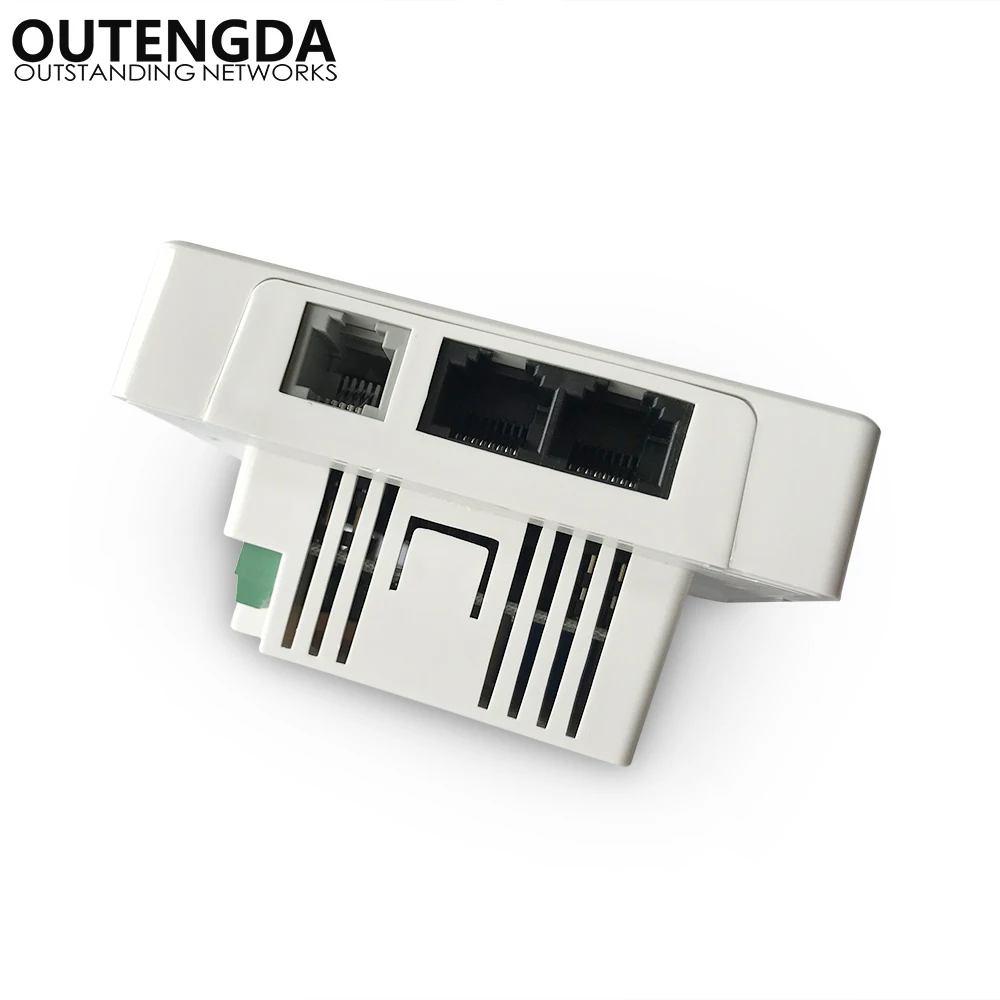

RJ11 |
1*RJ11 port |
||||
Power Supply |
48V （802.3af POE） |
||||
LED |
WAN LED ×1；,LAN LED×2；SYS LED*1 |
||||
Maxi power consumption |
|||||
Dimensions (W X D X H) |
86MM × 86MM × 35MM |
||||
Environment |
Operating Temperature: -20~55 ℃ Extreme Temperature: -30~55 ℃ Storage Temperature: -40~70 ℃ |
||||
