Home > Products > Bending Hoop Machine > Universal Type All-in-one Model Straightening Hoop Bending Machines
Universal Type All-in-one Model Straightening Hoop Bending Machines
- Shanghai, Ningbo, Wuhu
- T/T L/C D/P D/A Credit Card Cash
- 14 days
Product Details
| Brand Name | Gangli Machinery | Place of Origin | China | |
| Model Number | WGJD12-12A/B | Type | Cold Rolling Mill | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 2300 | |
| Condition | New |
Product Description
Model | WGJY12-12A | WGJD12-12A/B | YDWGJD12-12A/B | LZWGJD12-10A | WGJD16-16A |

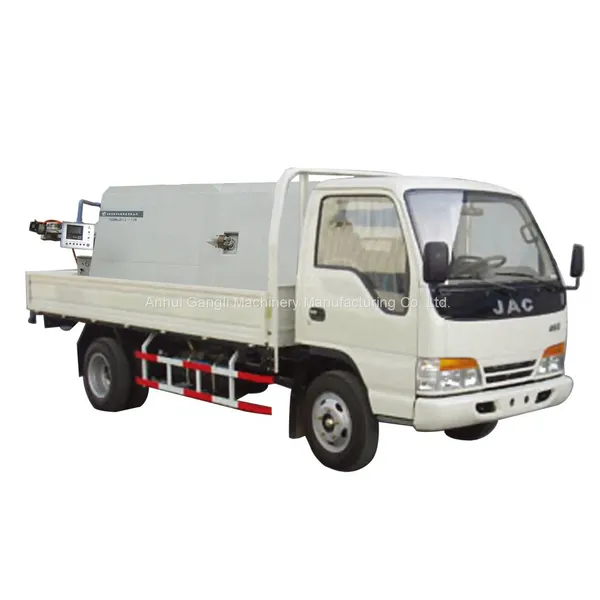

Type | Hydraulic Models | Universal (B with Straightening Rack) | A - Drag Type / B - Vehicle Mounted | All-in-one | Large Diameter Type |
Single-line Processing Capacity (mm) | D5 - 12 | D5 - 12 | D5 - 12 | D5 - 12 | D8 - 16 |
The diameter of the Finished Steel Bar (mm) | D5 - 12 | D5 - 12 | D5 - 12 | D5 - 10 | D8 - 16 |
Max Bending Angle (°) | 180 | 180 | 180 | 180 | 180 |
Center Shaft Diameter (mm) | D25 - 32 | D25 - 32 | D25 - 32 | D25 - 32 | D25 - 50 |
Maximum Traction Speed (M / min) | 50 - 80 | 50 - 120 | 50 - 120 | 50 - 120 | 50 - 100 |
Maximum Bending Speed (° / sec) | 0 - 600 | 0 - 1000 | 0 - 1000 | 0 - 1000 | 0 - 800 |
Length Accuracy (mm) | ±1.5 | ±1 | ±1 | ±1 | ±1 |
Angle Accuracy (mm) | ±1 | ±1 | ±1 | ±1 | ±1 |
Driving Mode | Two-wheel Drive | 10 Driving Wheels | 10 Driving Wheels | 10 Driving Wheels | 10 Driving Wheels |
Average Power consumption (kW / h) | 4.5 | 4.5 | 4.5 | 4.5 | 1.5 |
Equipment Size (mm) | 2600*1800*1000 | 4500*2200*1400 | 4500*2200*1400 | 4500*2200*1400 | 6500*2200*1500 |
Equipment Power (kW) | 5.5 | 11 | 11 | 55 | 30 |
Working Environment Temperature (℃) | - 5 －40 | - 5 －40 | - 5 －40 | - 5 －40 | - 5 －40 |
Equipment Weight（kg） | 800 | 2300 | 2800 | 8000 | 7000 |
