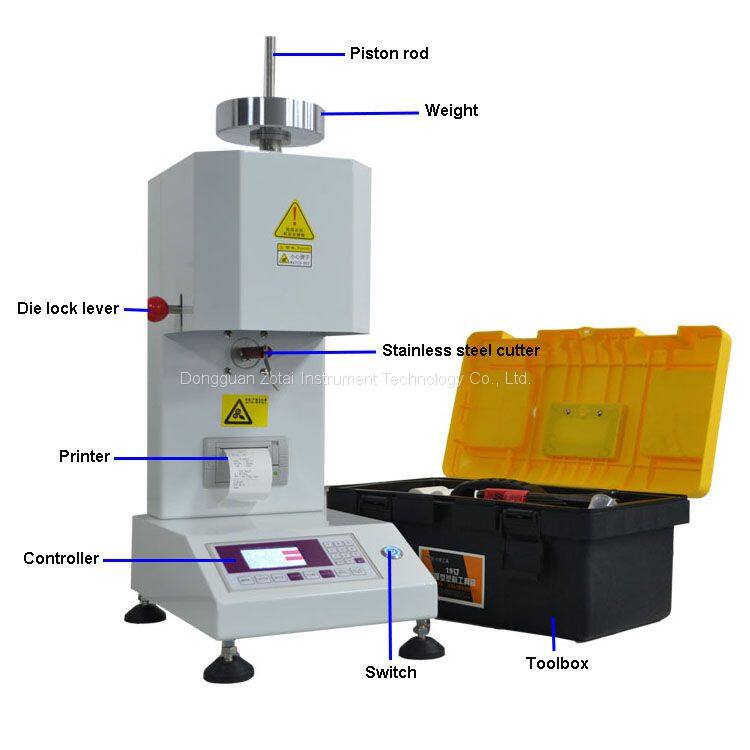

Plastic Melt Flow Index Tester MFI
Equipment Overview:
Plastic Melt Flow Index Tester MFI is used to determine the melt flow rate of thermoplastics (MFR; units: g/10min) instrument. For polyethylene, polypropylene, polyoxymethylene, ABS resin, poly-carbonate, nylon, plastics and other polymers fluoride melt flow rate at high temperature determination.
Technical parameters:
1. Squeeze out some material | |
Discharge port diameter |
Φ2.095±0.005mm |
Discharge port length |
8.000±0.025mm |
Loaded barrel diameter |
Φ9.550±0.025mm |
Loaded barrel length |
152±0.1mm |
Piston head diameter |
9.475±0.015mm |
Piston head length |
6.350±0.100mm |
2.Standard test load (eight grades) | |
1grade |
0.325kg=(rod + weight + thermal units +1 No. tray body weight) |
2grade |
1.200 kg=(0.325+2 0.875 eight) |
3grade |
2.160 kg=(0.325+3 1.835 eight) |
4grade |
3.800 kg=(0.325+4 3.475 weight) |
5grade |
5.000 kg=(0.325+5 4.675 weight) |
6grade |
10.000kg=(0.325+5 4.675 weight+6 5.000 weight) |
7grade |
12.500kg=(0.325+5 4.675 weight+6 5.000+7 2.500 weight) |
8grade |
21.600 kg=(0.325+2 0.875+3 1.835+4 |
3.475+5 4.675+6 5.000+7 2.500+8 2.915 weight) | |
Relative error of Load Test≤0.5% | |
Test method |
Quality Act (MFR) |
Temperature range |
Room temperature——450℃ |
Temperature accuracy |
±0.2℃ |
Temperature resolution |
0.1℃ |
Timing range |
0.1——999 seconds |
Timing Accuracy |
0.1 seconds |
Material cutting method |
Automatic or manual way of cutting material |
Display |
LCS |
Equipped with a printer, can print test report |
|
Working conditions |
Ambient temperature10℃—40℃; Relative humidity30%—80% |
Dimensions |
250×350×510(L × W × H) |
Equipment Overview:
Plastic Melt Flow Index Tester MFI is used to determine the melt flow rate of thermoplastics (MFR; units: g/10min) instrument. For polyethylene, polypropylene, polyoxymethylene, ABS resin, poly-carbonate, nylon, plastics and other polymers fluoride melt flow rate at high temperature determination.
We can produce all kinds of rubber test machines:
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 8 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 products. Countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.
1.Are your company a trading one or a factory?
Factory + trade (integration), 8 years focusing on test instruments field,5 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
