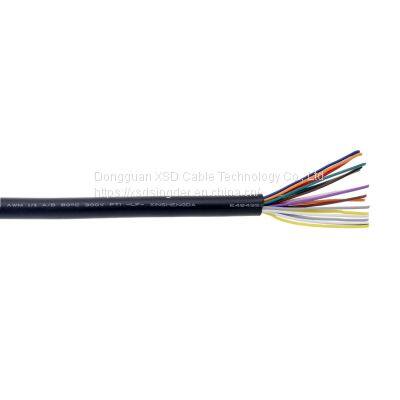

Competitive Price Awm Style UL 2464 24 AWG Wire 300V Electric Cable Copper Wire

FOB Price

USD $0.01 - $1 / Meter

6100 Meters(Min.Order)

Supply Ability 10000000 Meter / Meters per Month
Port Shenzhen
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	UL2464
Type	Insulated	Application	Other, Internal Wiring of Appliance
Insulation Material	PVC	Conductor Material	Copper
Conductor Type	Other, Tinned or Bare, Stranded or Solid Copper

Product Description

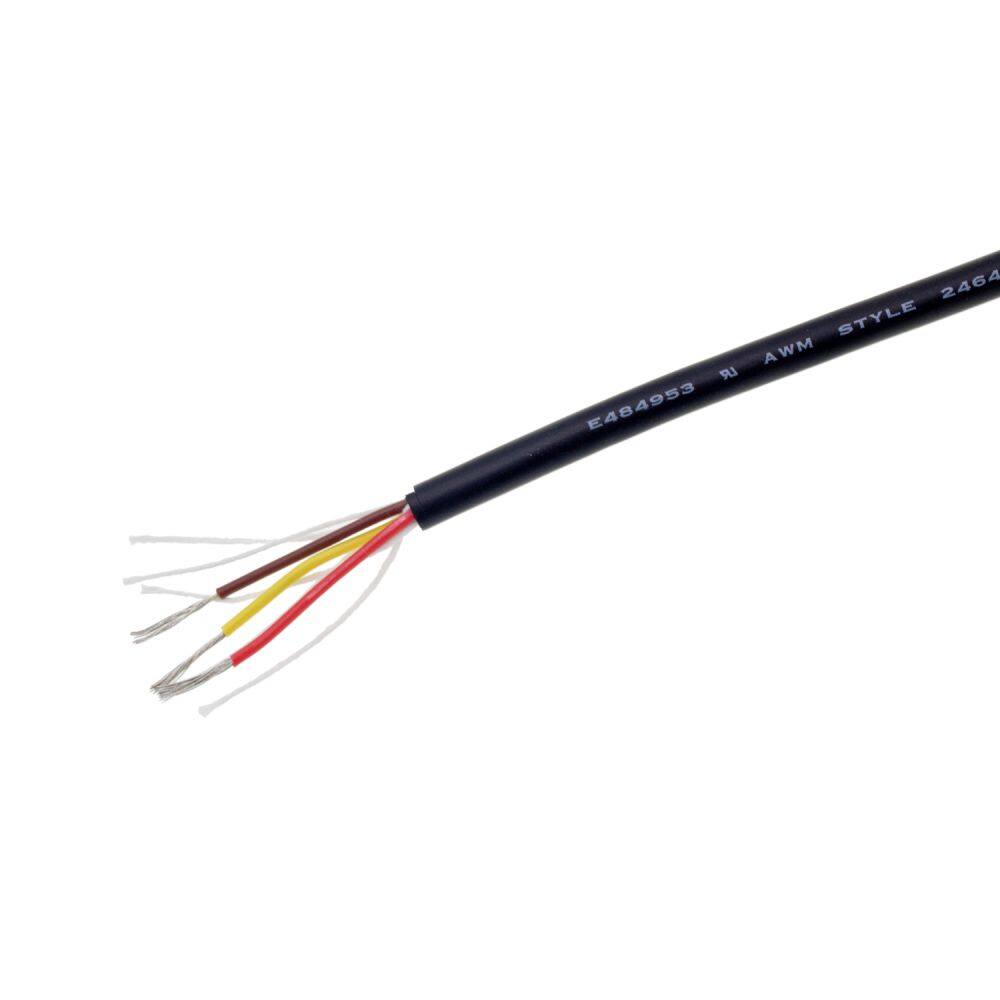

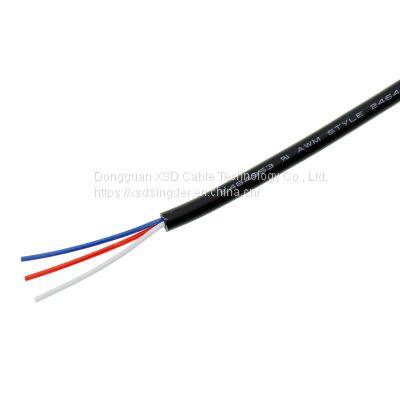

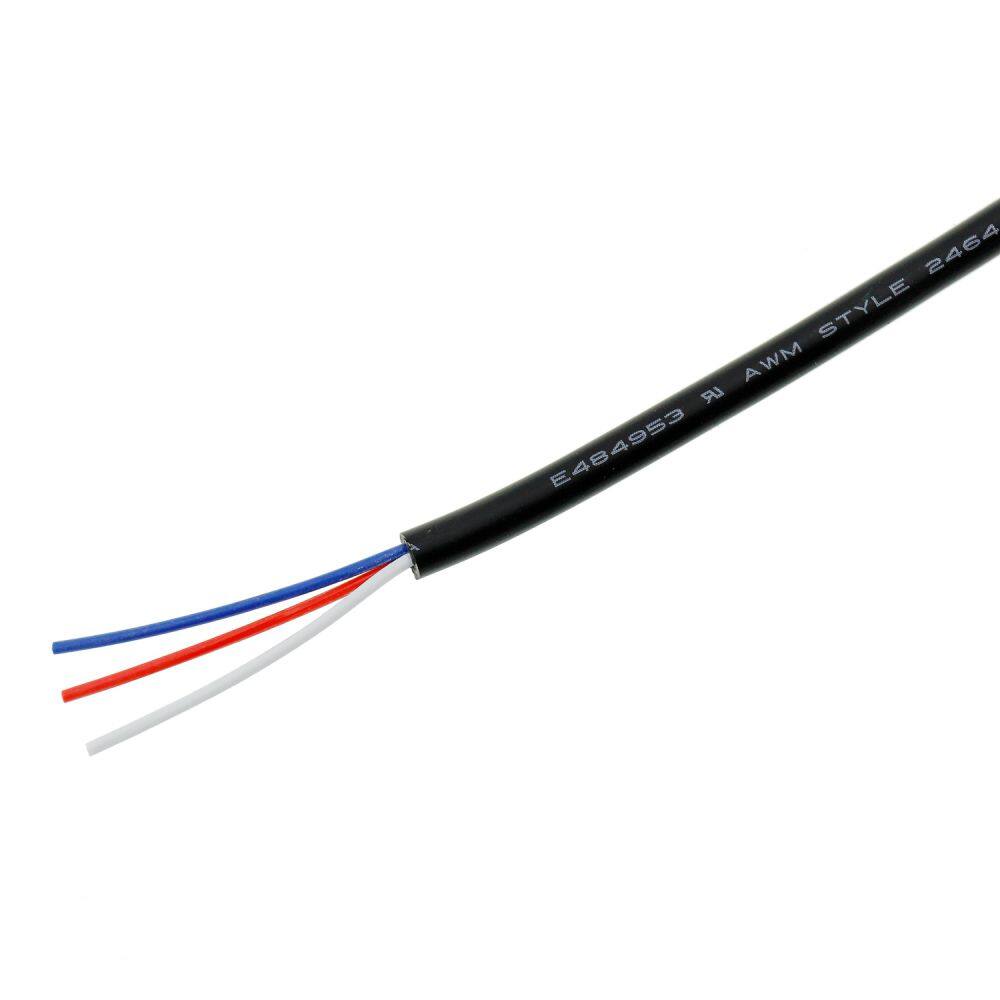

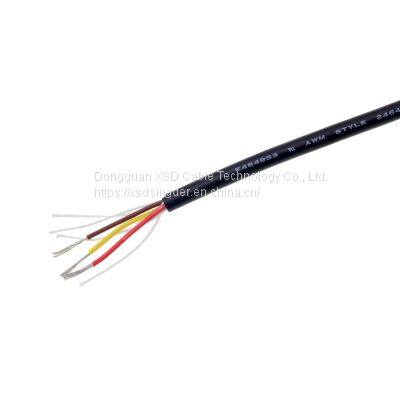

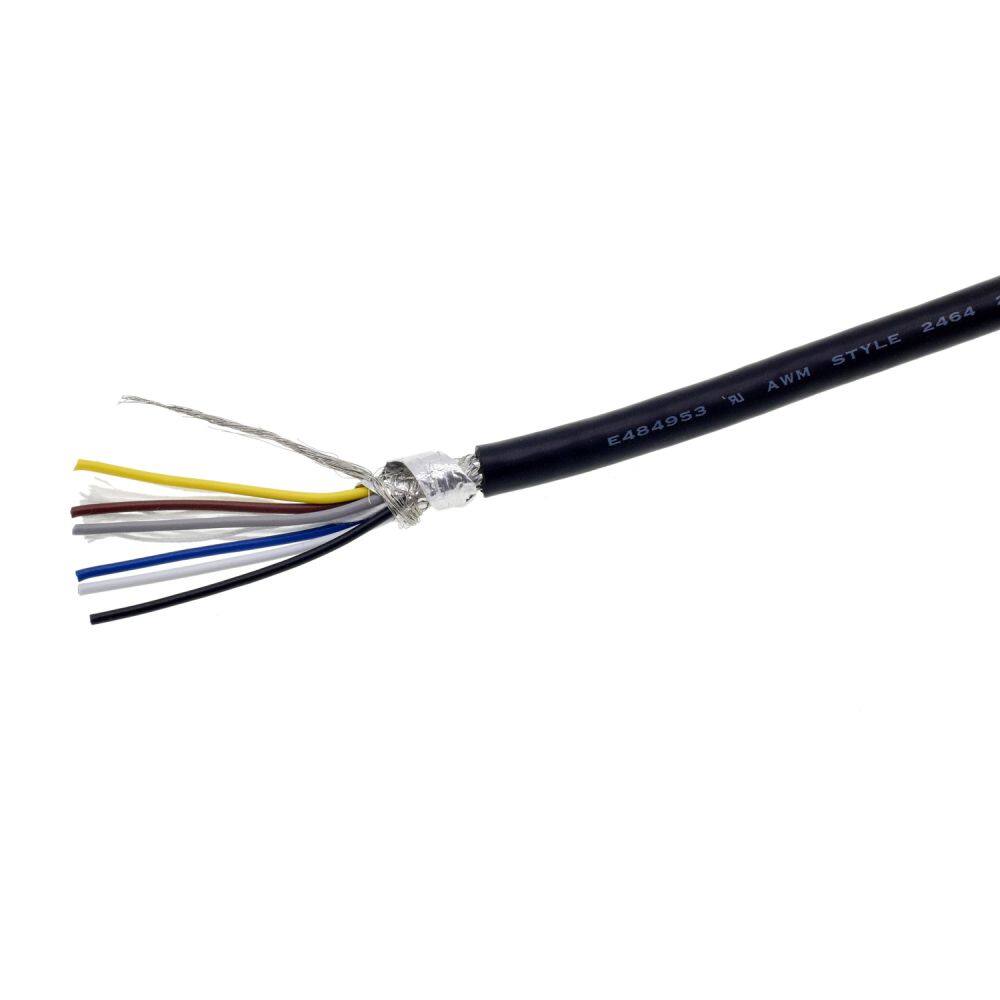

UL2464 PVC Insulated Wire

-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

Conductor			Insulation		Jacket	Max. Cond Resistance at 20°C (Ω/km)
No. of Cores	AWG	Construction (No./mm)	Thickness (mm)	Diameter (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
3	28	7/0.127	0.26	0.90	4.00	239
4	28	7/0.127	0.26	0.90	4.80	239
5	28	7/0.127	0.26	0.90	5.00	239
6	28	7/0.127	0.26	0.90	5.00	239
8	28	7/0.127	0.26	0.90	5.00	239
9	26	7/0.16	0.26	1.00	6.30	150
10	26	7/0.16	0.26	1.00	6.60	150
11	26	7/0.20	0.26	1.00	6.60	150
12	28	7/0.16	0.26	0.90	6.00	239
15	24	7/0.127	0.26	1.12	8.00	94.2
18	28	7/0.127	0.26	0.90	7.40	239
20	24	7/0.20	0.26	1.12	8.50	94.2

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1330	1332	1430	1571	10269	10702
1015	1185	1331	1333	1569	1589	10368
Multiple-conductor, thermoplastic insulation.
2464	2648	2678	20080	21016	21513
2468	2651	2725	20276	21370
Single-conductor, thermoset insulation.
3173	3271	3321	3386	3656
3266	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1569	10070	10368
1013	1032	1185	1571	10269	11627
Multiple-conductor, thermoplastic insulation.
2464	2468	2517	2547	2651	2725	2835	20276
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656
