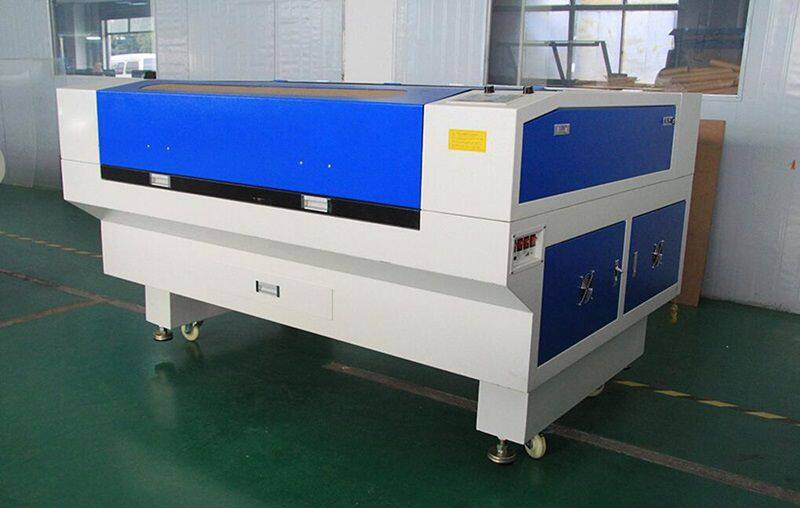

CO2 Cutting Machine /Laser Nonmetal Cutting Machine

CO2 cutting machine / laser nonmetal cutting machine

The third generation of high intelligent control system, full automatic control, high precision positioning, one-time forming, smooth edge.

Compared with the traditional process, the product is more beautiful, more efficient and more material saving.

Because the laser in the cutting, carving process, do not contact with the surface of the object, to ensure that every product is of high quality.

Product features:

1. Innovative technology research and development, avoid the problem of traditional laser cutting edge smoked yellow smoked black.

2. High performance motherboard, anti-interference, data output more fully, power continue carving, slope carving.

3. Fast curve cutting function: any curve can be cut fast and continuously.

4. It has the function of cutting angle, cutting speed and burr following, and can reduce the power and cutting speed.

5. According to the needs of the software design path optimization scheme, shorten the processing time, improve efficiency.

Performance parameters:

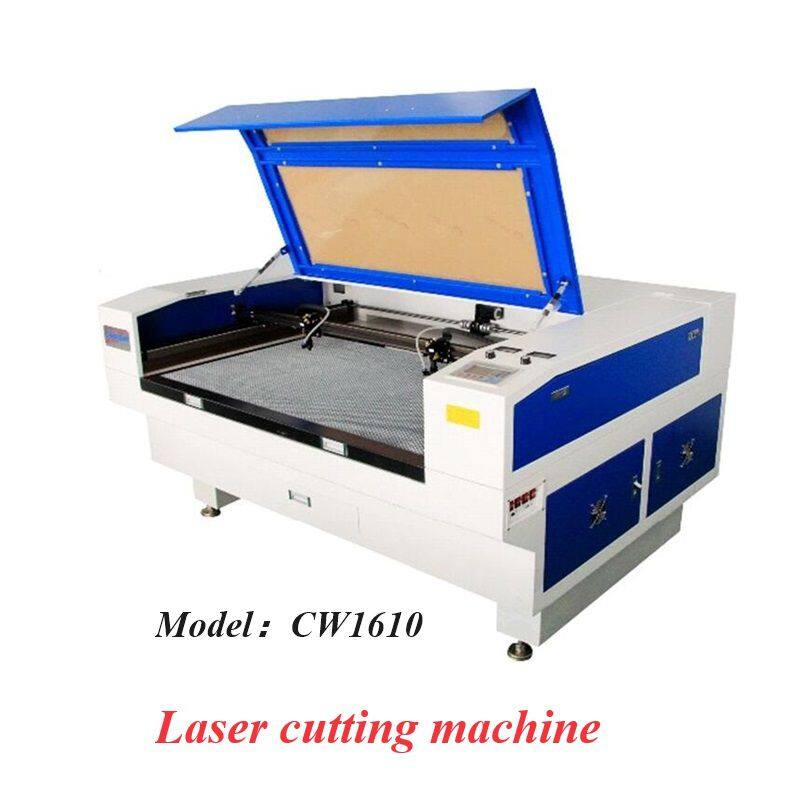

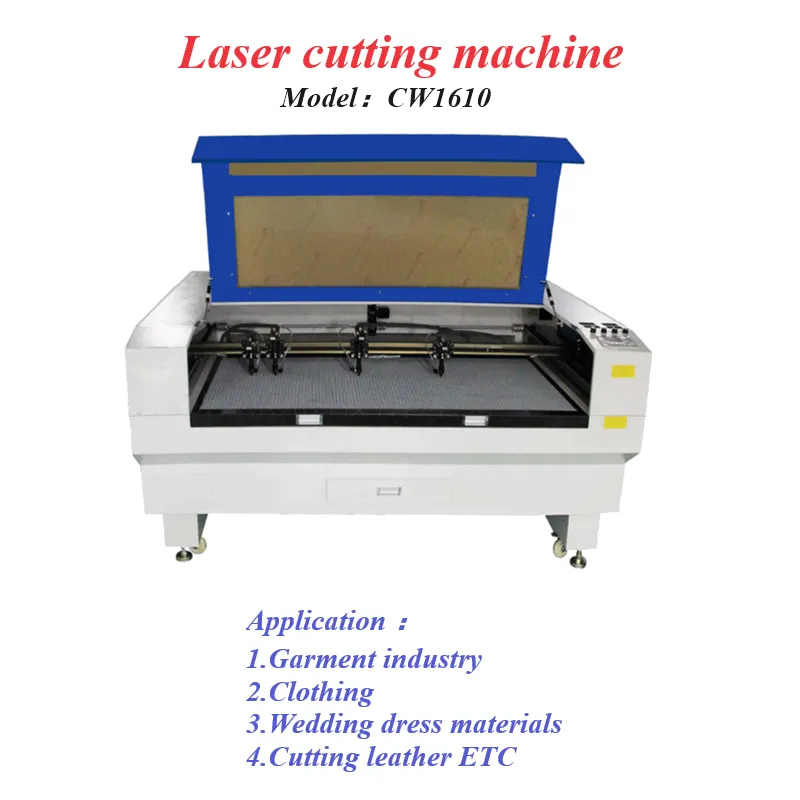

Parameter / model: cw-1610

Processing area: 1600 x 1000 mm

The laser power is less than 60 / 80W

Laser type: a closed CO 2 laser tube

The cutting speed is less than 0-800mm / s

Engraving speed: 0-1000mm / S

Positioning accuracy<0.01mm

Support formats such as DSP, PLT, BMP, DXF, DWG, AI, Las, etc

Working voltage: 220 V ± 10%, 50 Hz / 60 Hz

Cooling system - forced water cooling protection system

The power of the whole machine is less than 1500W

Weight: > 450kg

Working temperature: 1 ℃ - 45 ℃

The working humidity is less than 5% - 95% and there is no condensate

Dimensions (L x W x h, in mm) 2250mm x 1650mmm x 1150mm
