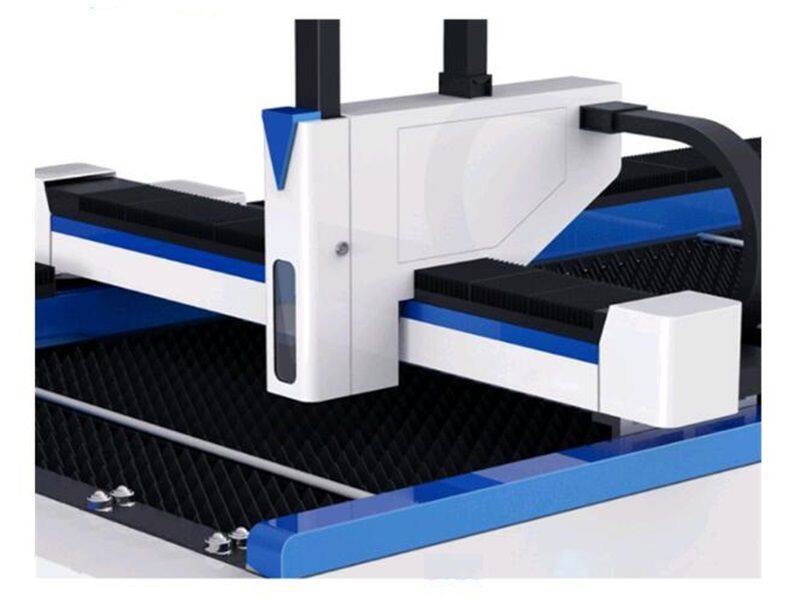

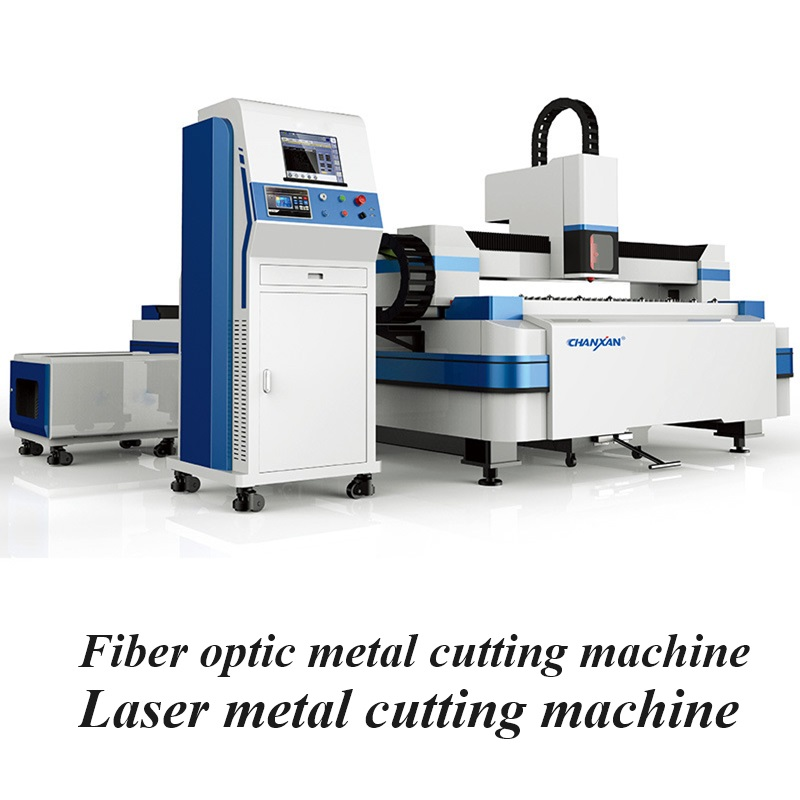

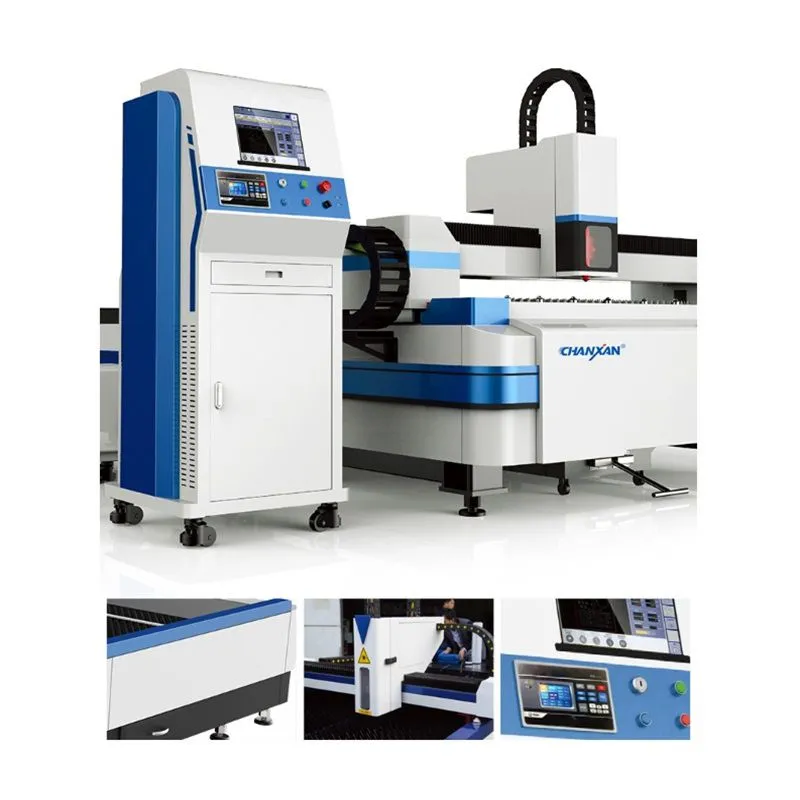

Optical fiber metal cutting machine / laser cutting machine (optical fiber metal cutting machine / metal material cutting machine / metal profiled cutting machine)
1. High quality fiber laser generator, good spot quality, stable output power, high precision, high speed cutting.
2. Perfect constant temperature cooling system, lubrication system and dust removal system to ensure stable, efficient and durable operation of the machine.
3. With auto focus height follower, keep the focus constant. High precision rack and pinion transmission system is adopted, and the precision is less than 0.05mm through the precision collimator test during installation and debugging.
4. Professional CAD / cam automatic programming software and automatic nesting software are adopted to save raw materials to the greatest extent.
5. Ultra low operating cost, laser power consumption is only 3-4 degrees per hour, easy to operate
Product features
1. High quality fiber laser generator, good spot quality, stable output power, high precision, high speed cutting.
2. Perfect constant temperature cooling system, lubrication system and dust removal system to ensure stable, efficient and durable operation of the machine.
3. With auto focus height follower, keep the focus constant. High precision rack and pinion transmission system is adopted, and the precision is less than 0.05mm through the precision collimator test during installation and debugging.
4. Professional CAD / cam automatic programming software and automatic nesting software are adopted to save raw materials to the greatest extent.
5. Ultra low operating cost, laser power consumption is only 3-4 degrees per hour, easy to operate
performance parameter

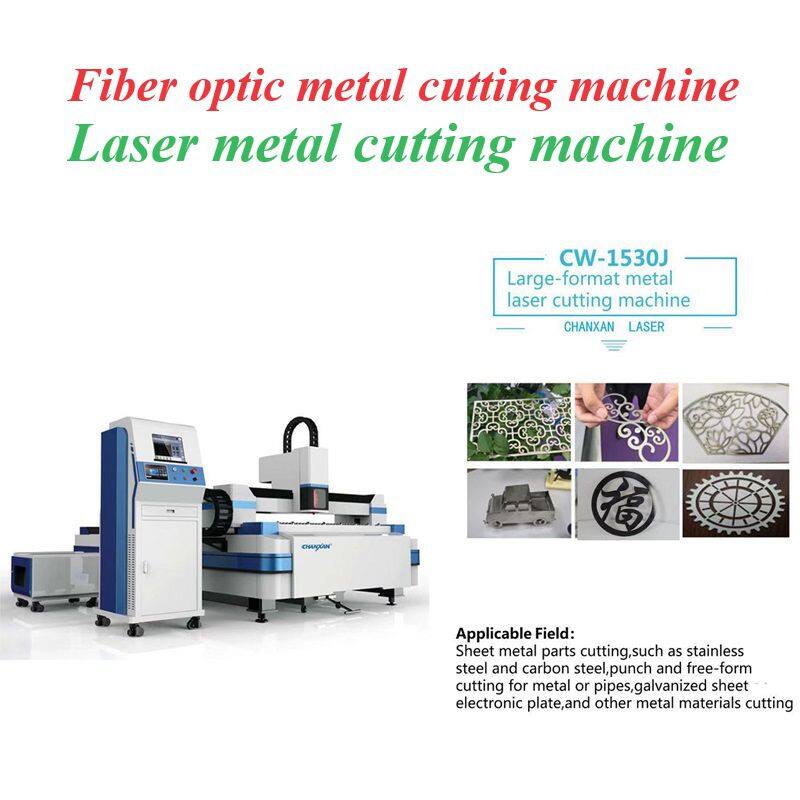

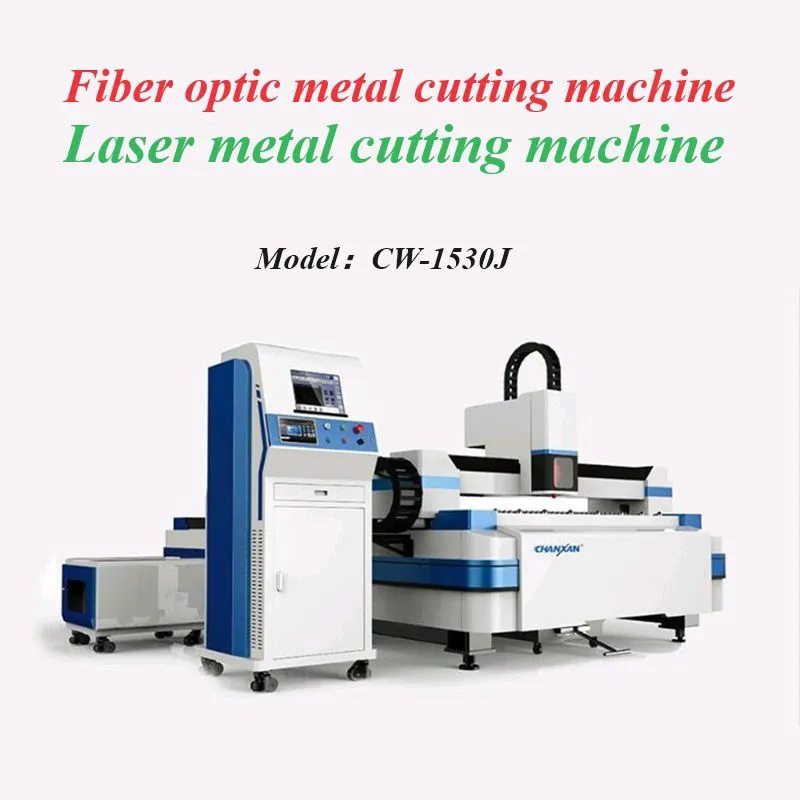

Parameter / model: cw-1530j
Processing area: > 3000 x 1500 mm
Laser: 300 / 500 / 800 / 1000W fiber laser
XYZ axis stroke: 2500mm / 1325mm / 100mm
Thickness of cutting material: 0.2-3mm / 0.2-6mm (depending on material)
Minimum line width<0.2mm (different materials)
0.03mm XY axis positioning accuracy
XY axis repeat positioning accuracy + 0.03mm
The maximum speed is less than 20m / min
The weight of the machine tool is less than 1700kg
The operating temperature of the machine tool is less than 0 ℃ - 40 ℃
Control system v2.0
The maximum load of worktable is less than 300kg

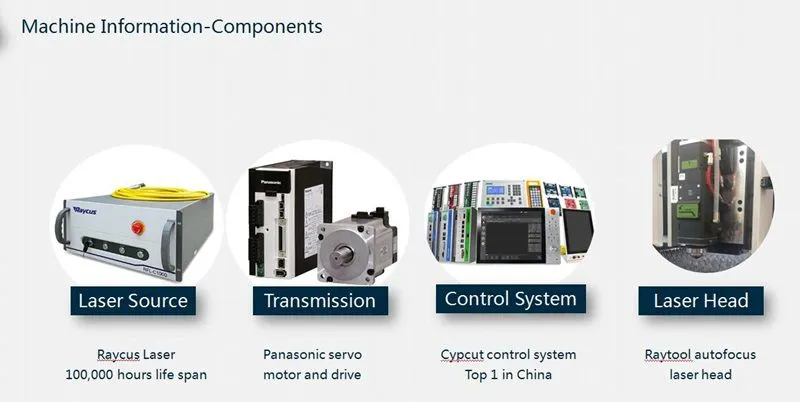

XYZ axis drive mode - imported servo motor
Transmission mode: imported ball screw
Appearance size (L * w * h) 3800 * 1850 * 1300mm

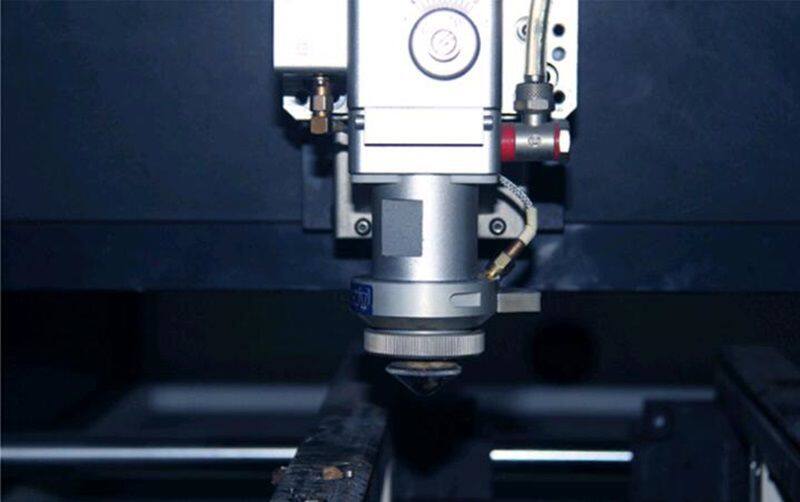

A set of special laser cutting head
Laser special cooling system 1.5-3p
1 set of dust extraction device
