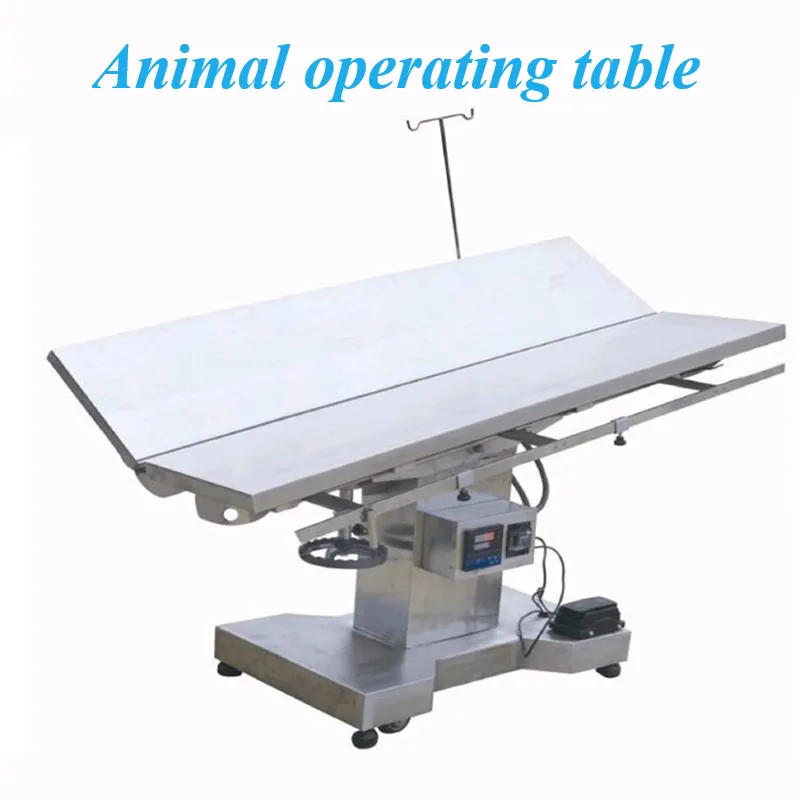

Animal operating Table

1

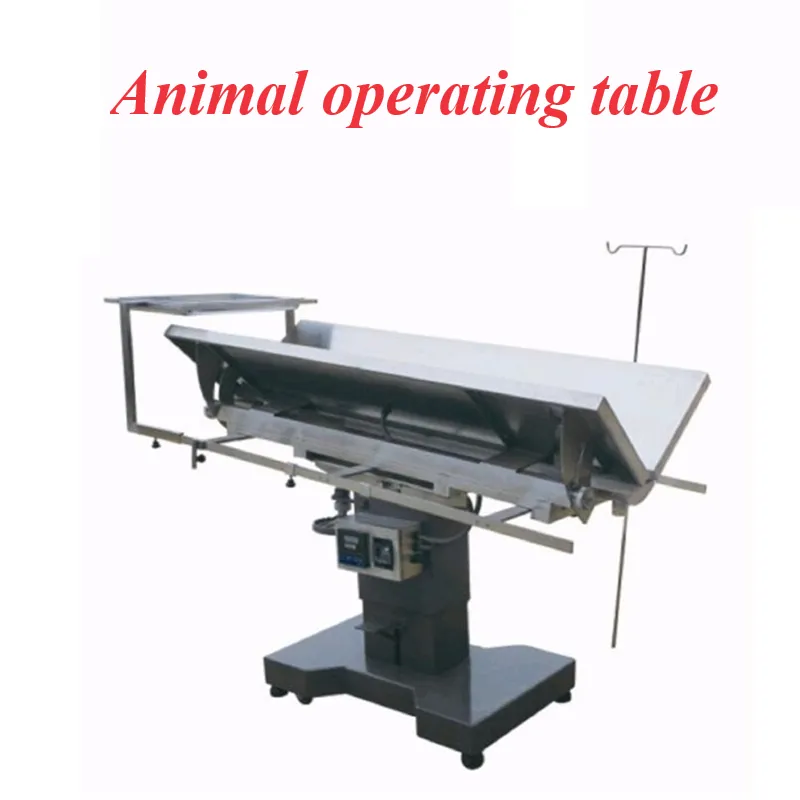

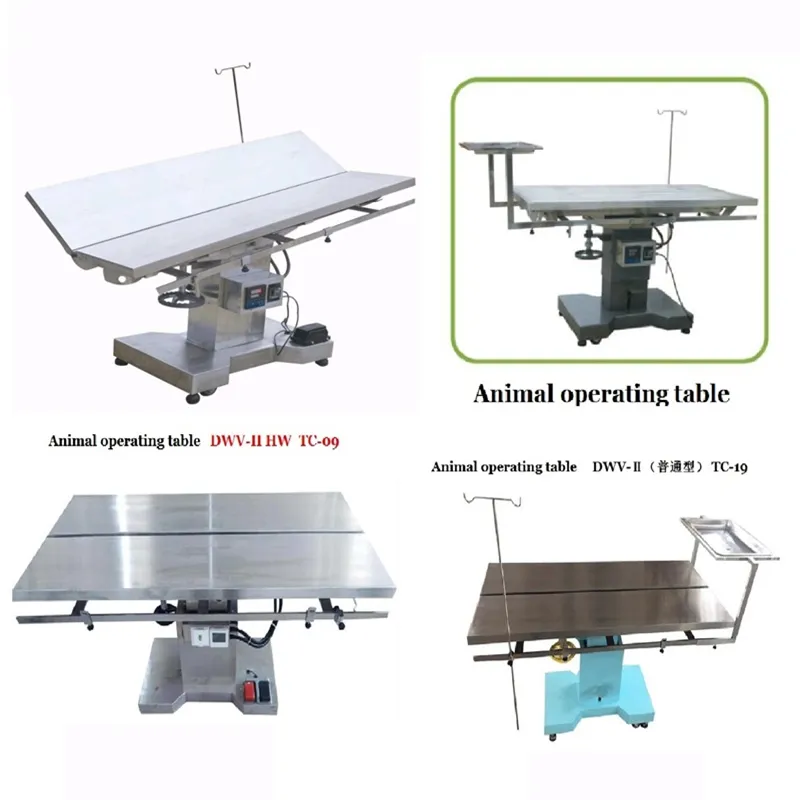

Animal operating table / veterinary operating table / Pet operating table, divided into several models.

Here are the detailed parameters of the two most commonly used operating tables.

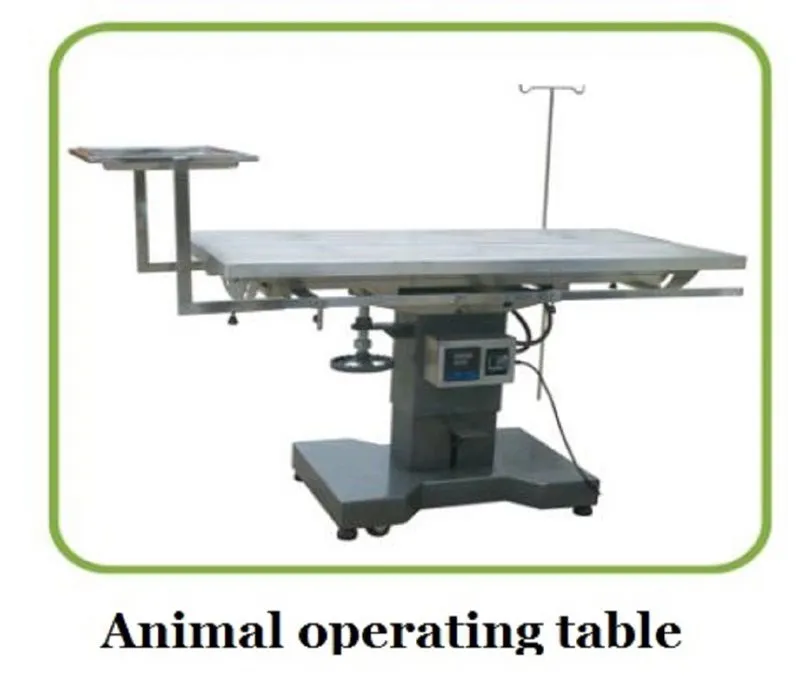

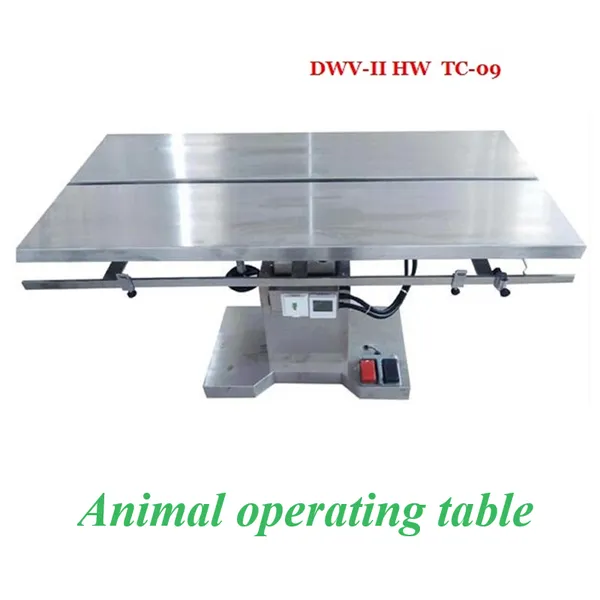

Dwv-ii HW operating table tc-09

Product features:

1. Dwv-ii animal operating table is composed of table, pin and base, equipped with surgical instrument tray and infusion stand;

2. The height of operating table is controlled by electric control, and the middle is equipped with a movable sink;

3. The left and right sides of the worktable can be tilted from - 5 ° to 15 ° respectively, which is manually controlled by knob;

4. The operating table can be tilted by 45 ° in front and back respectively, and it can be operated by electric control; 5. The whole machine has compact structure, reliable and reasonable performance, and is easy to operate;

6. The table is made of 304 stainless steel, high temperature resistant, anti-corrosion and anti rust;

7. Working table temperature adjustment range of 0-60 degrees, automatic constant temperature work

Yes, the required temperature can be adjusted at will;

8. Built in high temperature protector, safe and reliable.

Specification parameters: length 1400 width 650 height 760-1060

Material description: the main body of the operating table is made of 304 stainless steel, which is convenient and practical. The high-strength lifter is made of national standard stainless steel 304 material, which is corrosion-resistant, acid proof and rust free. With electric lifter, the performance is more stable.

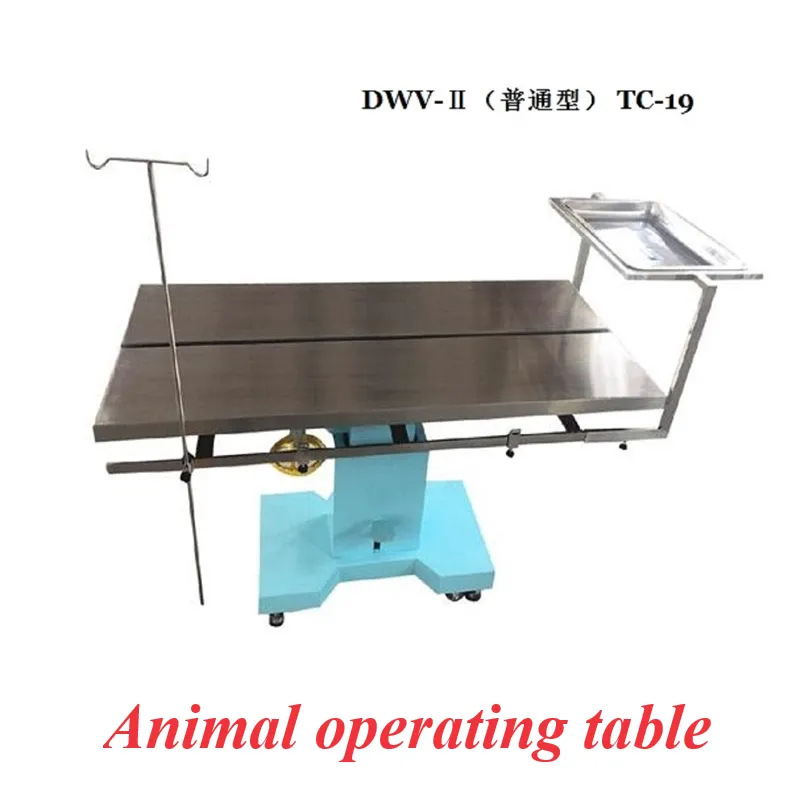

DWV - Ⅱ (common type) tc-19

Product features:

1. The working table is made of medical stainless steel with water tank in the middle, which has the characteristics of anti-corrosion, anti rust and high temperature resistance.

2. The worktable is folded manually with an angle between 0 ° and 45 ° and a left-right tilt of ± 15 ° and a locking device is provided. When the table is adjusted to the required angle, it will start to work after being locked manually.

3. Table lifting structure adopts the most advanced hydraulic system lifting, stable and reliable operation.

4. The base is made of A3 steel plate. The appearance of the computer system is sprayed with plastic, which is beautiful and generous. It has anti-corrosion and anti rust performance.

Specification parameters:

Length and width of worktable: 1400 × 650mm

Height of working table from the ground: 780-900mm

DWV - Ⅱ (common type) tc-19

Product features:

1. The working table is made of medical stainless steel with water tank in the middle, which has the characteristics of anti-corrosion, anti rust and high temperature resistance.

2. The worktable is folded manually with an angle between 0 ° and 45 ° and a left-right tilt of ± 15 ° and a locking device is provided. When the table is adjusted to the required angle, it will start to work after being locked manually.

3. Table lifting structure adopts the most advanced hydraulic system lifting, stable and reliable operation.

4. The base is made of A3 steel plate. The appearance of the computer system is sprayed with plastic, which is beautiful and generous. It has anti-corrosion and anti rust performance.

Specification parameters:

Length and width of worktable: 1400 × 650mm

Height of working table from the ground: 780-900mm
