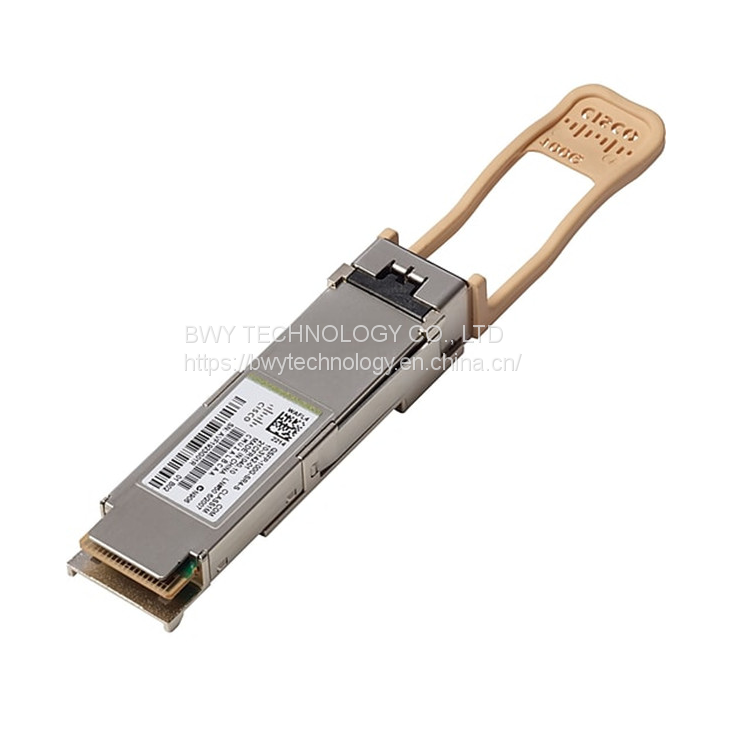

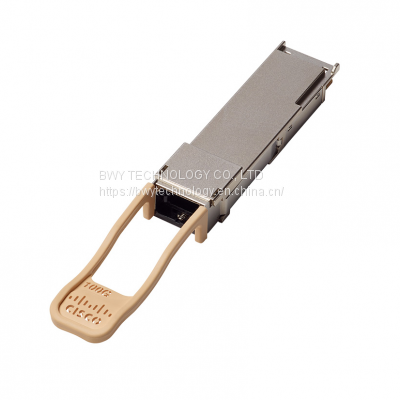

Cisco QSFP-100G-SR4-S 100 Gigabit Optical Modules 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF

Description

100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF

Dimensions

13.5 x 18.4 x 72.4 mm

 QSFP Port cabling specifications

Nominal Wavelength (nm)

850

Cable Type

MMF

Core Size (Microns)

50.0

50.0

Modal Bandwidth (MHz*km)*¹

2000 (OM3)

4700 (OM4)

Cable Distance

70m

100m

Power Consumption (W)

3.5

Pull Tab Color

Beige

*¹ Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm

Optical characteristics

Transmit Power (dBm) per lane^*2

Max:+2.4

Min:-8.4

Receive Power (dBm) per lane^*2*3

Max:+2.4

Min: -10.3

Receive Power (dBm) per lane

840 to 860

^*2 Transmitter and receiver power is average optical power, unless specified

^*3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation

Environmental Conditions and Power Requirements

Commercial temperature

0 to 70°C (32 to 158°F)

Storage temperature

-40 to 85°C (-40 to 185°F)

Regulatory and Standards compliance

Standards

•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013

•SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014

•802.3™-2012 IEEE Standard for Ethernet

•IEEE 802.3ba Amendment of IEEE Std 802.3-2012

•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)

•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment

•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

•RoHS 6

Safety

•Cable jacket of QSFP copper modules is UL E116441 Compliant

•QSFP copper cables are ELV compliant
