Summary

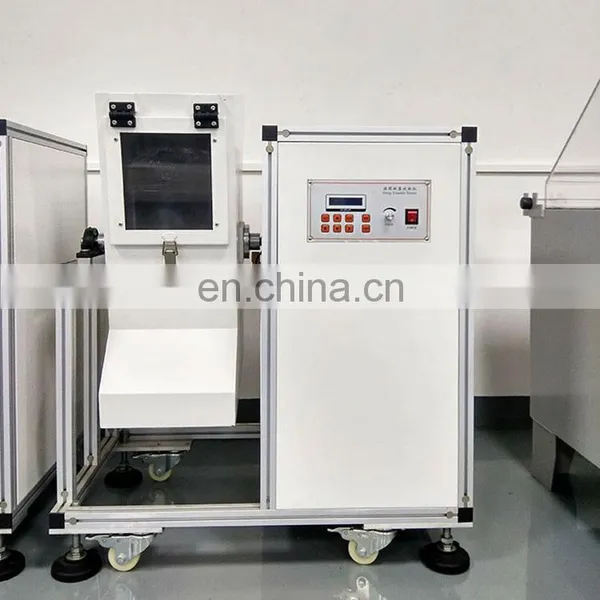

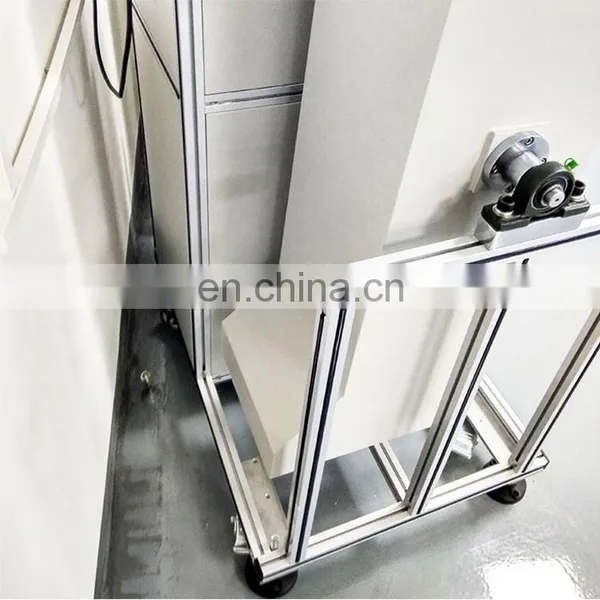

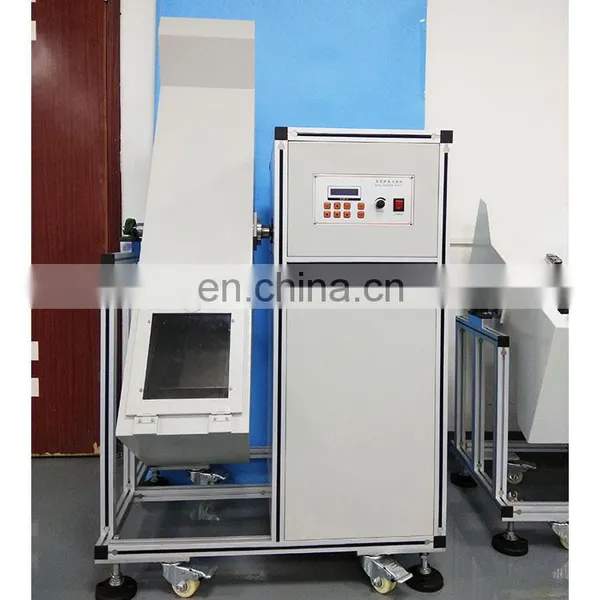

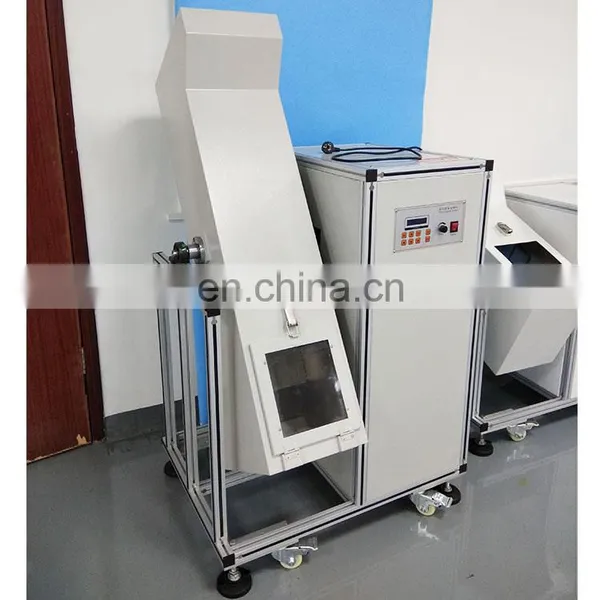

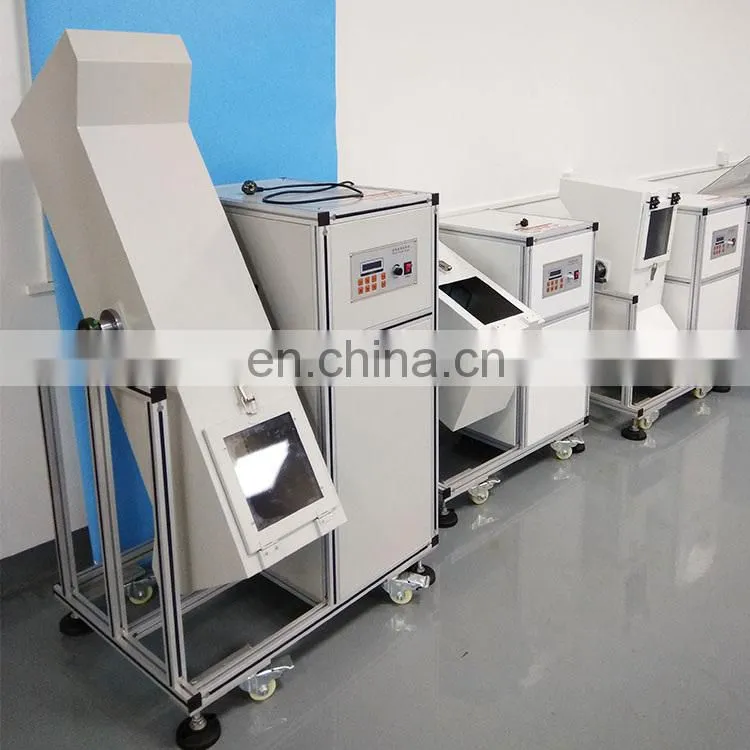

The Automatic Tumbling Barrel Drop Test Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.
The Automatic Tumbling Barrel Drop Test Machine is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a height of 500mm on to a steel plate that is 3mm thick and backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.
Features
Apply on the phone (or other small electronic products) and special equipment which repeated free fall tests.
Simulated the phone free drop test when using mobile phone.
Reasonable structure, unique, different mobile phone models have full applicability.
Equipment operation and stability, low noise, maintenance-free.
Purpose of Tumbling Barrel Drop Test
A. durability of the housing.
B. Internal Structures in throw performance.
C. withstand repeated free fall adaptability.
Standards
IEC60068-2-32 GB/T2324.8
Parameter
Item |
Automatic Tumbling Barrel Drop Test Machine |
Power |
AC 220V(specified) |
Weight |
105Kg |
Specimen weight |
5Kg(max) |
Number of tests |
1-999999 |
Drum height |
500mm/1000mm |
Drum weight |
275mm/350mm |
Testing speed |
0-20times/min |
Tensile Strength Testing Machine, Universal Rubber Tensile TesterDesktop UV Light Aging Test Accelerated Weathering Test ChamberProgrammable Temperature Humidity Climatic Test Chamber Price108L programmable stainless steel Salt Spray Test chamber/machine/equipment

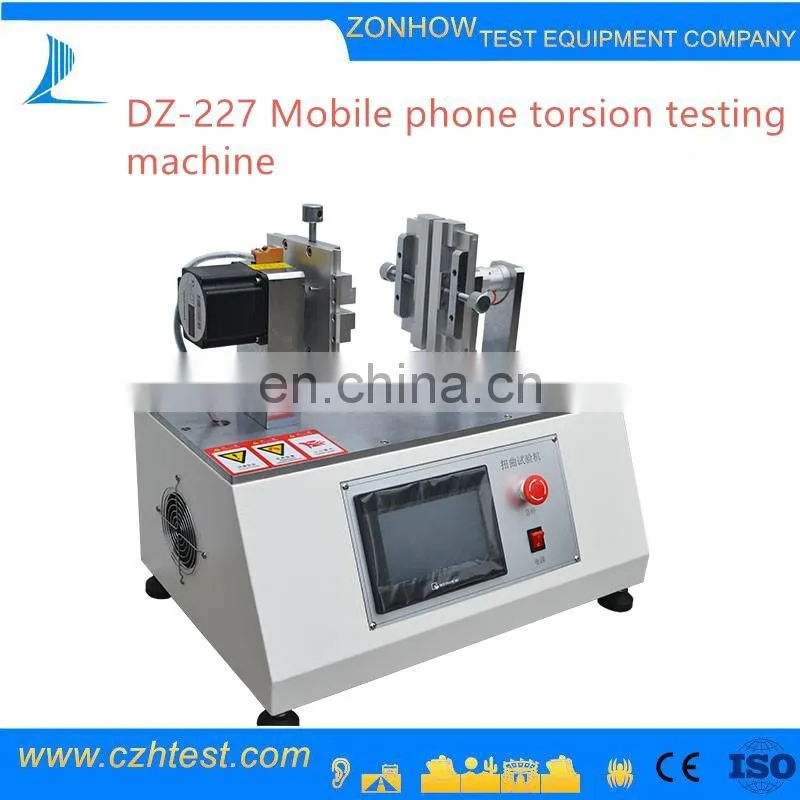

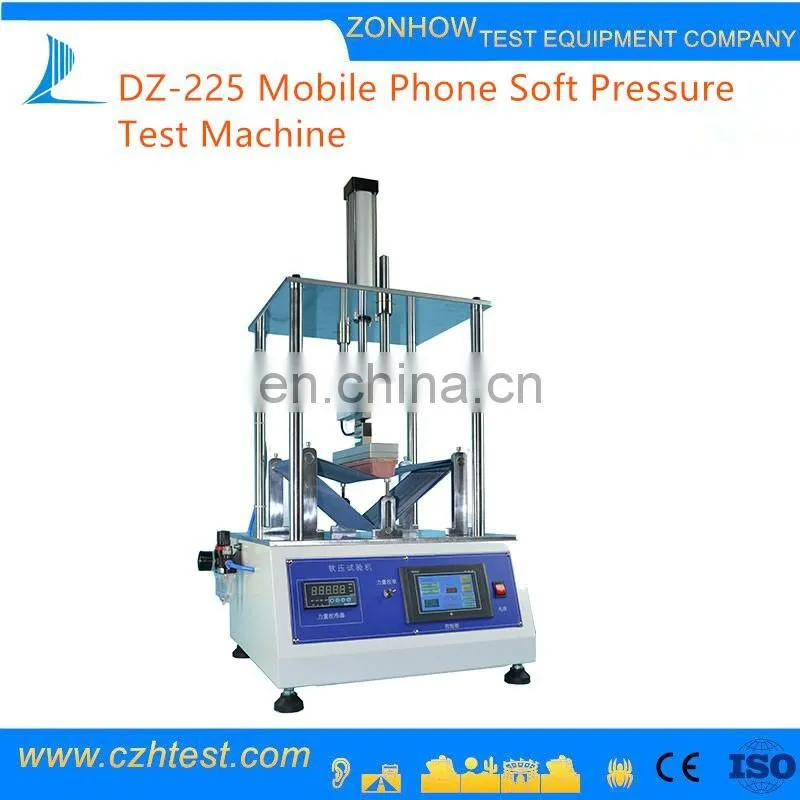

Mobile Phone Soft Compression Mobile phone Hardness pressure Mobile Phones Torsion tester Universal Tensile Strength
Durability Tester testing machine Testing Machine
Here is a start , if you want to know more ,please visit our website, click here!
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
