Automatic key switch load stroke curve tester
- 20 Set / Sets per Month
- Shenzhen/Guangzhou
- T/T Credit Card
You May Like
-
Triaxial key life testing machine
-
Soft Pressure Testing Machine for mobile phone
-
Mobilephone Lab testing equipment ,Soft Pressure Test Machine, Soft Compress Durability Tester
-
Vulkameter Vulcanized Rubber Rotorless Rheometer
-
Plastic and Rubber Melt Flow Index Mfi Testing Machine
-
Computer rubber raw material machinery rotorless rubber rheometer price
Product Details
| Brand Name | ZONHOW | Place of Origin | Guangdong, China | |
| Model Number | S205 | Power | Electronic | |
Product Description

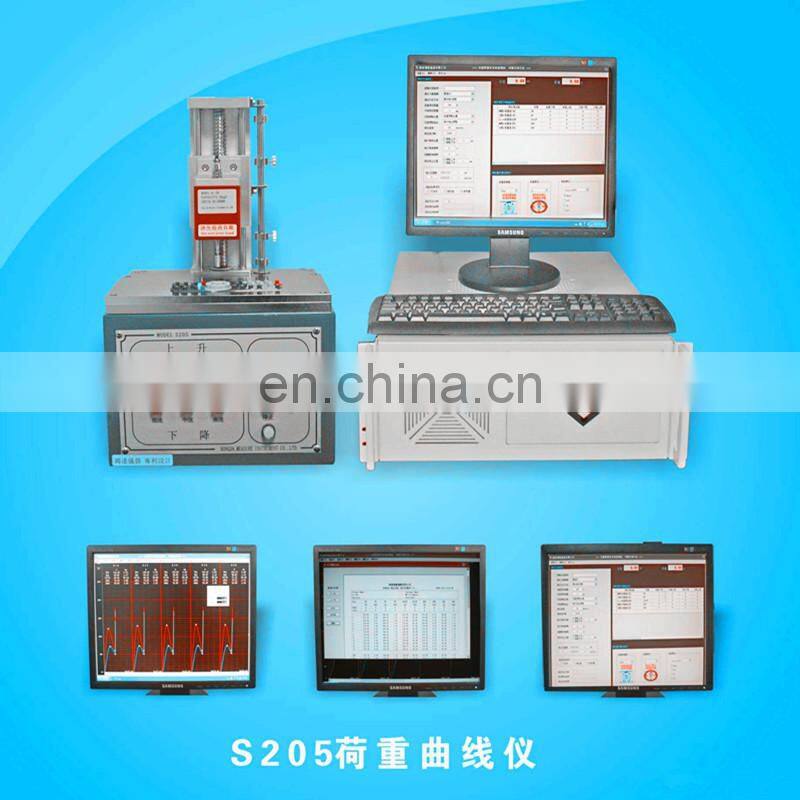

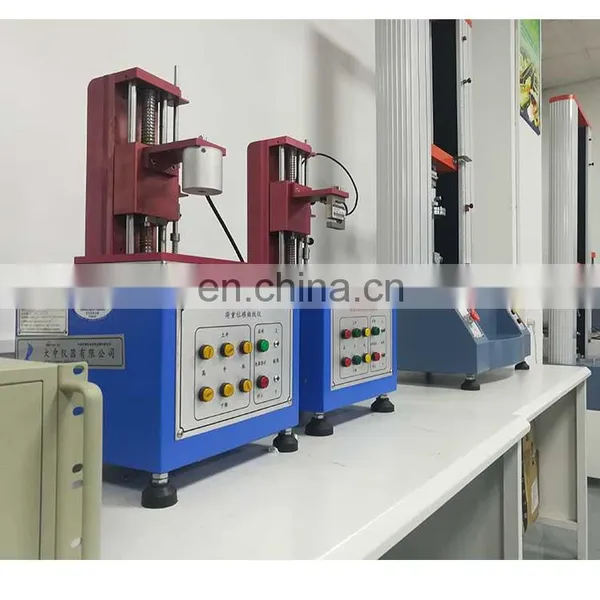

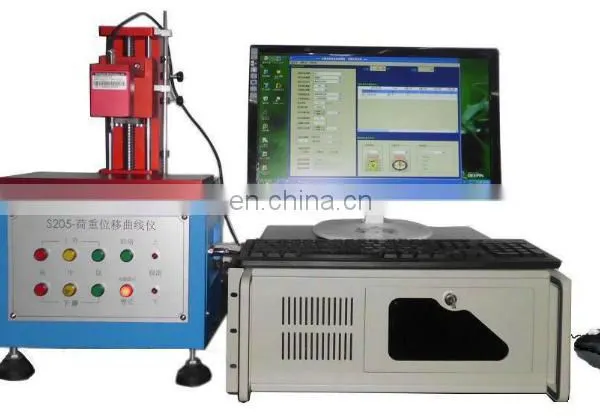

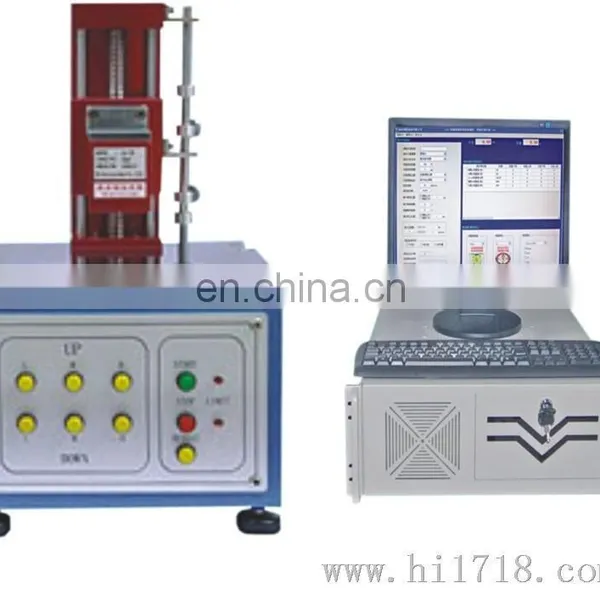

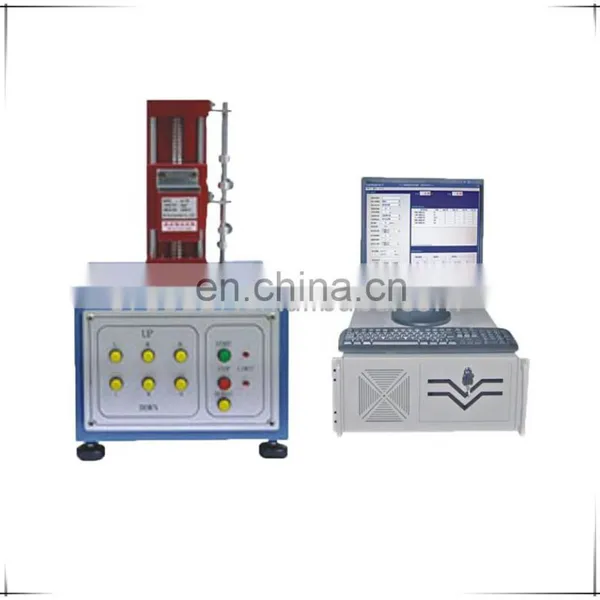

Automatic key switch load stroke curve tester
The Automatic key switch load stroke curve tester is suitable for all kinds of buttons and switches ( load - stroke ) curve test, using WINDOWS Chinese window setting screen, the operation is simple and convenient, and all the data can be stored ( test conditions, load curve, test results, test report and so on. This machine adopts the servo motor drive, can provide high accuracy ( load - stroke ) measuring, and can get the key and switch curve completely accurate test.
Peak Force, Return Force, Distance and Click rate can directly display the values in the chart, does not need manual calculation.
Measurement graphs by computer memory can always zoom in and zoom out, a piece of A4 paper can be arbitrarily designated place lots of graphs.
Determination exclusively eucalyptus can be input on the value of the higher and lower limit specifications, measurement results can automatically determine the OK or NO.
Enter the maximum measured stroke and load, the computer automatically controlled.
Load units display N, Ib, gf, kgf can select freely .
Computer directly print and storage load stroke curves, check the report. (No graph paper, general A4 paper is OK.)
Test data is stored on the hard disk (each piece of data can be stored and unlimited).
Test conditions are setted by the computer screen (including test stroke, speed, frequency, compressed , pause time, etc.).
The rise of the content of inspection report can be modified at any time (Chinese or English).
The inspection report can be generated automatically, without further input.
Inspection reports can be converted to Excel and other instruments report format.
Features:
l All the test data set and chosen by the computer automatically saved: test conditions, test results, (load - displacement) curve lifetime decay curve, and automatically generate reports.
l High precision:load resolution is 0.01gf,displacement resolution is 0.001mm
l Adopt high precision explosion proof Load Cell,repeatability error:0.01%
l High stability:adopt Japan Panasonic servo motor drive seamless system-level, non-grinding ball screw drive, the machine can eliminate noise and resonance
l Together with a belt to ensure the stability of transverse displacement profile.
l Can enter the upper and lower limit conditions, automatically determine the test results Passed or Fail, and the maximum, minimum, average, standard deviation, etc
Testing items:
Rubber button (load-dispalcement) testing
Metal shrapnel button (load-displacement) testing
Cellphone,controller button (load-displacement) testing
All kinds of buttons,keyboard life decay experiment
Specifications:
Capacity
| 500gf, 2kgf, 5kgf
|
Switch unit
| gf, kgf, ibf, N
|
Resolution
| 0.001gf
|
Load precise
| 0.1gf
|
Maximum travel
| 100mm
|
Test speed
| 0~100mm/mim(setting)
|
Speed precise
| 0.5%
|
Displacement resolution
| 0.001mm
|
Motor
| Servo motor
|
Major
| 300×270×500mm
|
Weight
| 30kg
|
Power
| AC 110V or 220V,5A
|
