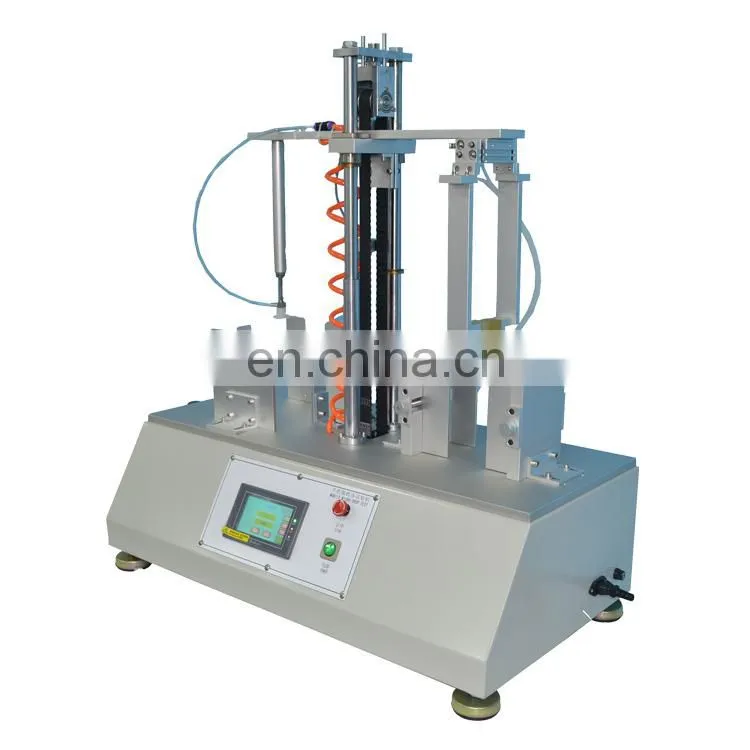

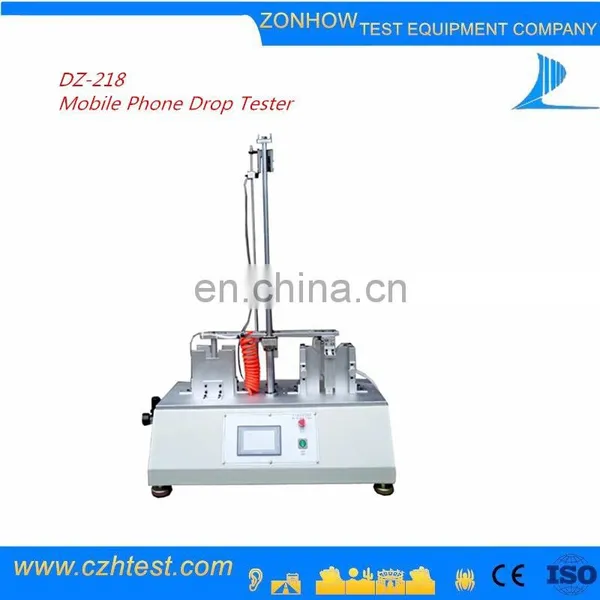

Summary-Automatic Cell Phone / Mobile Phone Drop Fatigue Test Equipment
Mobile Phone Laptop Micro Drop Tester is suitable for mobile telephone, telephone receiver, handle intercom, MP3, CD, electronic dictionary, all small electronic consumer products in fall testing repeat.
Working Principle-Mobile phone drop tester/ test equipment

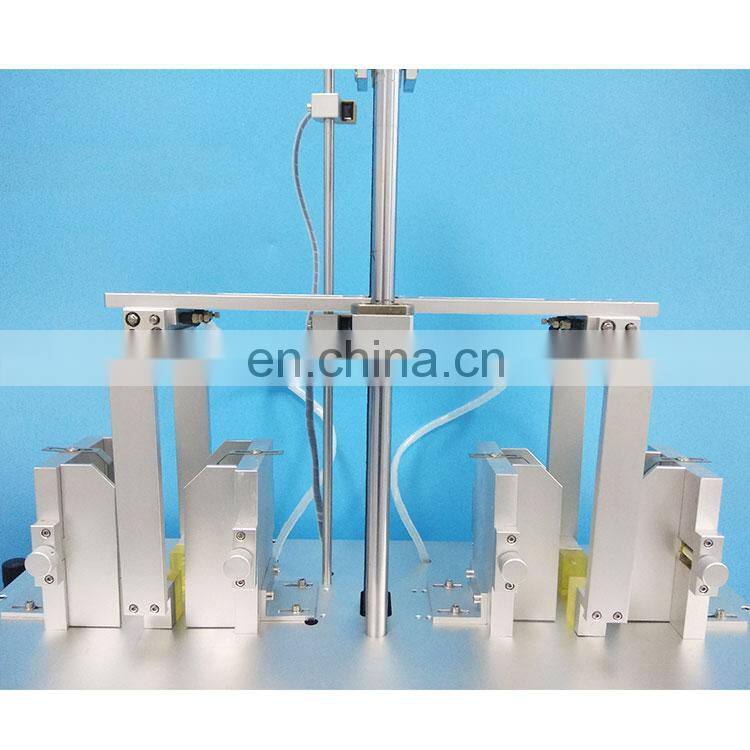

Lifting cylinder driving on the fixture (gas finger) decline and clamp the mobile phone, rise, and then loosen the phone, mobile phone into free fall movement, at the same time the double acting cylinder expansion will push the mobile phone to the position where Fixture can clamp it. Lifting cylinder driving on the fixture (gas finger) decline and clamp the mobile phone, rise, and then loosen the phone, mobile phone into free fall movement. So until the setting number over and over again.
Features-Automatic Cell Phone / Mobile Phone Drop Fatigue Test Equipment
1. The setting number can be automatically stop surface materials of the drop: aluminum, thickness of 12 mm.
2. Prompt functions: can set the number fell to the setting value, can be automatically stop testing.
3. Adopts Japan SMC pneumatic rodless cylinders for mobile phone mention and drop drive motor, match with precision double acting cylinder for reparations action, durable using; Can realize products such as mobile phone repeatedly fall, to detect the product resistance to impact by a high of falling
4. Due to the pneumatic components and autocratic control mode, greatly improve test speed and consistency.

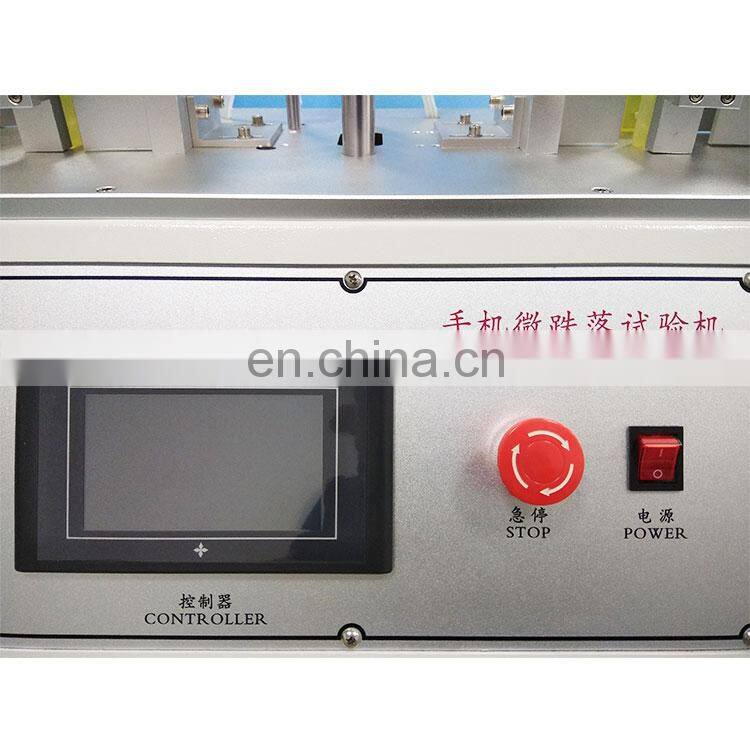

5. The LCD touch control panel + PLC programmable controller for action program.
6. Independent count, it will be automatic stop testing when attain the setting number.
Main technical parameters-Automatic Cell Phone / Mobile Phone Drop Fatigue Test Equipment
| Item | Mobile phone drop tester/test equipment |
| Test station | 2 pcs |
| Max. specimen weight | 2kg (or specified) |
| Drop height | 30~150mm |
| Test speed | 5~25times/min |
| Air supply | ≥0.5Mpa |
| PLC controller | Touch screen setting and display |
| Clamping methods | Gas claw & Vacuum chuck (or specified) |
| Machine size | 630*550*750mm |
| Power | 220V 50Hz |
Main Dispositions-Automatic Cell Phone / Mobile Phone Drop Fatigue Test Equipment
1. Touch screen: 1pcs PLC:1 pcs
2. Up and down the cylinder: 1 set
3. Clamping cylinder promote: 2 pcs

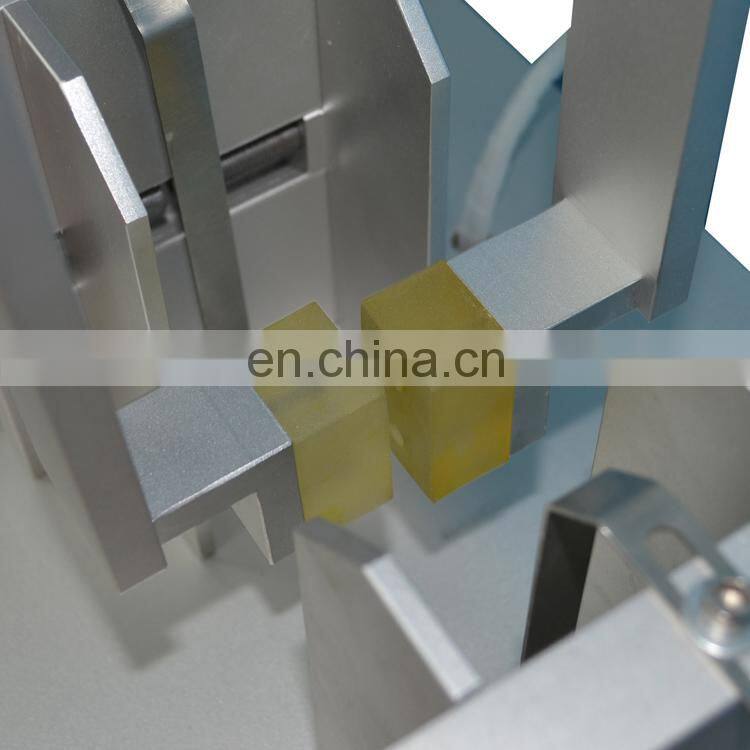

4. Mechanical finger: 2 pcs
Details-Automatic Cell Phone / Mobile Phone Drop Fatigue Test Equipment
We have professional packing workers to pack your products!
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
