Product Details
Brand Name: | Haida | Place of Origin: | Guangdong, China | Model Number: | HD-F760 |
Power: | Electronic |
Product Description

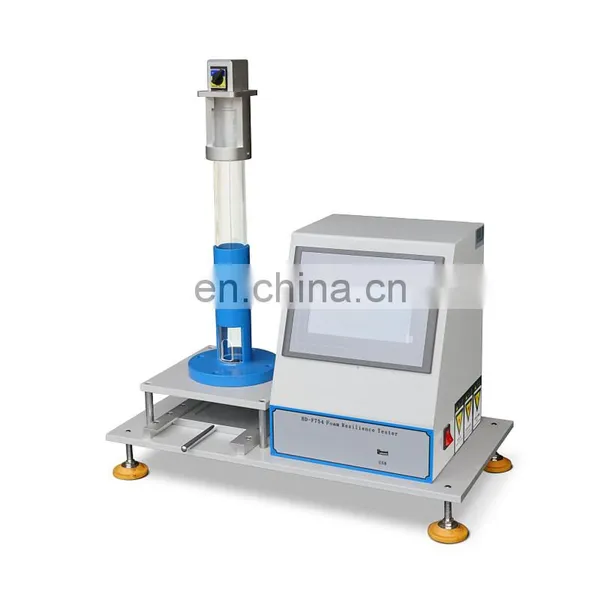

Foam Ball Rebound Test Machine
Foam Ball Rebound Test Machine is designed and manufactured in accordance with ASTM GB/T6670-2008, American Standard D3574and ISO8307 testing standards. And it suits for testing rebound performance of soft polyurethane foam ball. The tester through a given diameter and weight of iron ball dropping on foam sample at a certain height, and then calculate the percentage between maximum height of iron ball rebound and the height of iron ball dropping, this percentage is also called resilience ratio . Resilience ratio means foam rebound performance of poly foam. The tester adopts the microprocessor control, Chinese liquid crystal display, and it can print the test result. The tester is safe, reliable, with high measuring precision.
Foam Ball Rebound Test Machine Parameter:
1.Distance of iron ball dropping : ISO 8307: 460+0.5%mm ; ASTM D3574 500+0.5%mm
2.Diameter of iron ball : 16-0.05 mm
3.Precision of resilience ratio of iron ball : <1.5%
4.Dimension of specimen : 100 mm(L) ×100 mm(W) × 50mm(H)
5.Overall dimension: 260*260*730mm
6.6.Automatic calculation of average rebound height
7.Configuration of Automatic calculation of average resilience ratio
8.One set of tester (including release mechanism, capture mechanism and height adjustment mechanism)
9.One set of electro-optical distance measurement sensor
10.One set of control box(Chinese LCD display)
11.One set of micro type printer(desktop)
Our company
Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing andalso has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
2. Middle service
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
--Maintenance plan
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
