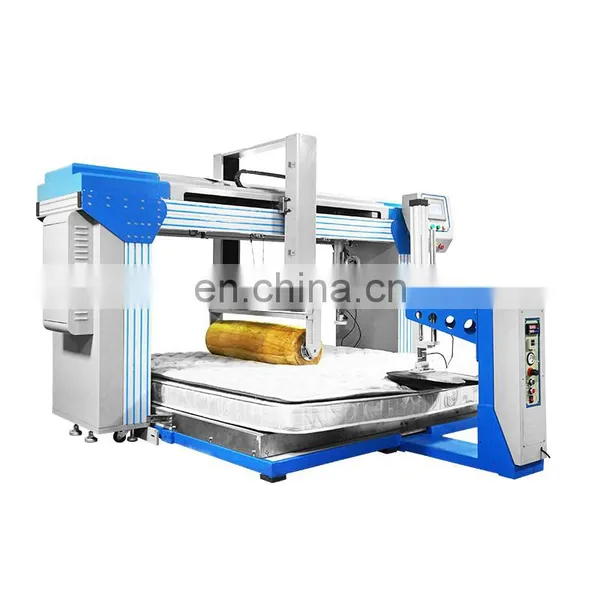

Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment

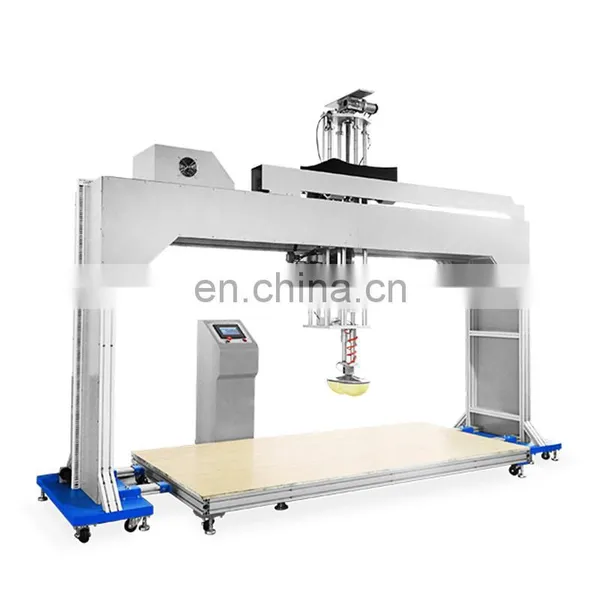

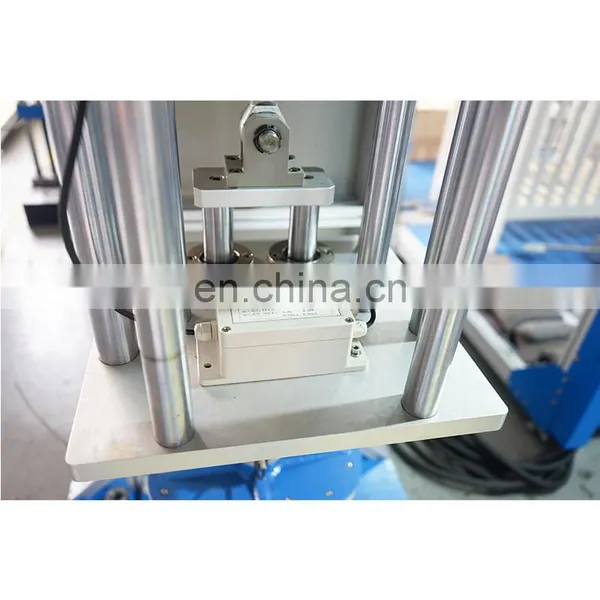

It apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.
Specification:
Design criteria: ASTM F 1566
Test objectives: Use specific block impact on the mattress over and over again, to assess their durability, and the fastness of mattress spring .
3.1.Imposed the pressure on mattress by a transducer, pressure range to 300KG | |
3.2. Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N | |
3.3. Pusher travel speed adjustable, about 160 weeks times per minute | |
3.4. Suitable maximum specimen |
2.2M ×2.2M |
3.5. Display Accuracy |
0.001kgf |
3.6. Deformation precision |
0.001mm |
3.7. Impact height |
0-300mm adjustable |
3.8. Counter range |
0-99999 times |
3.9.Machine size |
( L×W×H) about 3000×2800×2500mm |
3.10.Weight |
about 650Kg |
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
