HRD-150 Steel Hardness Tester/Metal Rockwell Hardness Tester Manufacturer
HRD-150 Steel Hardness Tester/Metal Rockwell Hardness Tester Manufacturer is design used to test special metal materials Rockwell hardness semi-automatic Rockwell hardness plan. Test, the Netherlands, on force is finished unloading, easy operation, Wide range, simple operation, etc.
Technical Specifications:
Model |
HRD-150 |
Indication of Hardness Value |
Dial |
Max Height of Specimen |
175MM |
Indication of Hardness Value |
Dial display |
Duration time |
0-60s |
Carried Standard |
GB/T230.1 GB/T230. Chinese Standard, JJG112 Inspection Rule |
Distance of Indenter to outer wall |
160m |
Preliminary Testing force |
10kgf(98.07N) |
Testing force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK |
Hardness measuring range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
Power supply |
AC220V+5%,50-60Hz |
Overall Dimension (mm) |
520*240*700 |
Net weight |
About 55Kg |
Standard Accessories:
Name |
Quantity |
Name |
Quantity |
Diamond Rockwell Indenter |
1 |
Diameter 1.5875mm Ball Indenter |
1 |
|
Hardness block (HRC High Low 2, HRB 1) |
3 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
Weights(A,B,C) |
Each 1 |
Plastic Dustproof cover |
1 |
Manual |
1 |
Product certificate |
1 |
HRD-150 Steel Hardness Tester/Metal Rockwell Hardness Tester Manufacturer

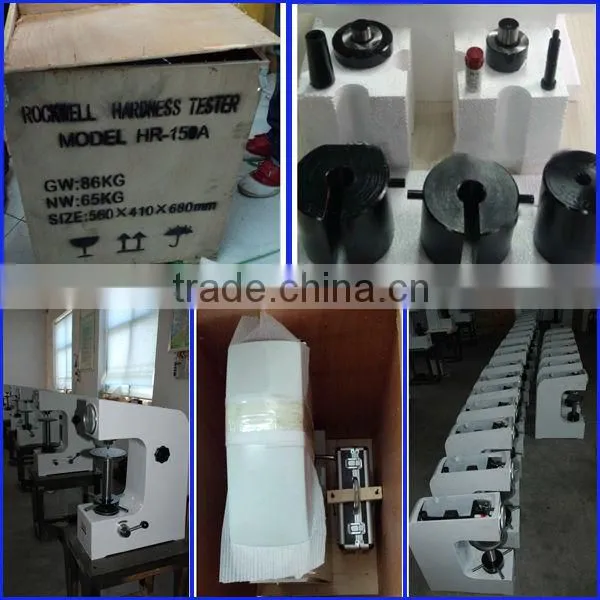

detail show:
Factory Show:
Our Partener:
