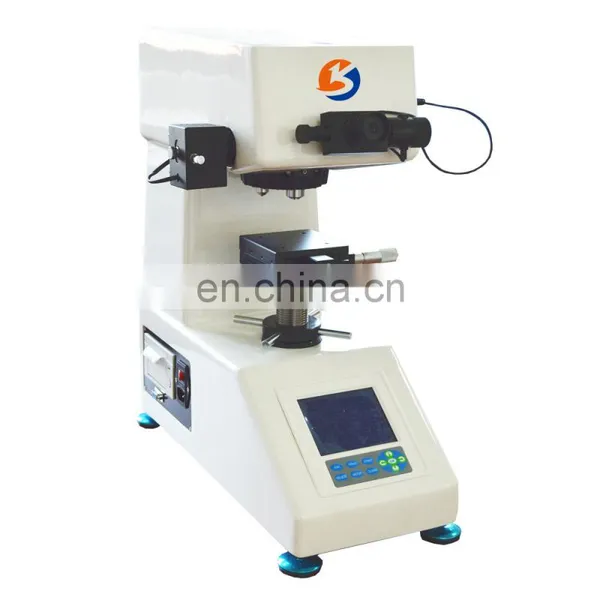

HV-1000Z Metal Micro Vikers Hardness Tester
Main Features:
HV-1000Z Micro hardness tester is micro Vickers hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Technical Specifications:
Model |
HV-1000Z |
Test force |
10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N) |
Min measuring unit |
0.5µm |
Data output |
LCD screen display |
Max Height of Specimen |
80mm |
Distance of Indenter to outer wall |
95mm |
X-Y Testing table |
Dimension: 100*100mm Max mobile:25*25mm |
Conversion Scale |
HRA,HRB,HRC,HRD,HRF,HV,HK,HBW, HR15N,HR30N,HR45N,HR15T,HR30T, HR45T |
Hardness measuring range |
8~2900HV |
method of testing force applied |
Automatic(Loading, Dwell, Unloading) |
Test microscope magnification |
400X(Measuring),100X(observation) |
Duration time |
0~60s |
Power supply |
AC220V+5%,50-60Hz |
Overall Dimension |
405*290*480mm |
Net weight |
About 25Kg |
Standard Accessories:
Item |
Quantity |
Item |
Quantity |
Weight shaft |
1 |
Weight |
6 |
Cross clamping testing table |
1 |
Flat clamping testing table |
1 |
Filament clamping testing table |
1 |
Thin Specimen Testing Table |
1 |
Screw driver |
2 |
Level adjustment screw components |
4 |
Level bubble |
1 |
Objective 10X |
1 |
Micro Vickers hardness block (High, Low) |
Each 1 |
Fuse(2A) |
2 |
Power cable |
1 |
Product Certificate |
|
Manual |
1 |
Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 15 X micro-distance measuring eyepiece, total magnification for 640 * and * 40.
3, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.
4. Provide equipped with image acquisition device, will impress clearly shown on a computer screen for automatic or manual measurement.
Micro Vickers Hardness Tester:
Factory Show:
Cooperate Partner:
