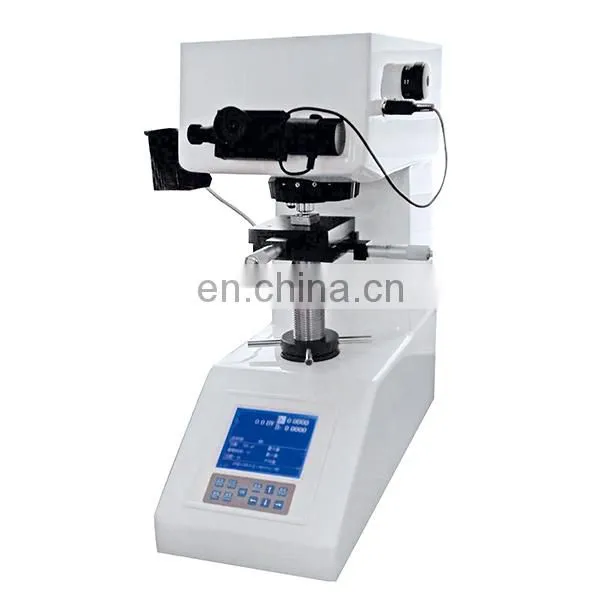

HVS-1000A Automatic Turret Digital Display Micro Vickers Hardness Tester
1.Applications:
HVS-1000A Automatic Turret Digital Display Micro Vickers Hardness Tester used to determine
the Vickers hardness of steel,non-ferrous metals,ceramics,treated layers of metal surface,and the
hardness grades of carburized, nitrided and hardened layers of metals.
It is also suitable to determine the Vickers hardness of micro and super thin parts.
2.Main Technical Specifications:
Model |
HVS-1000A |
Hardness Measuring Range |
5~3000 HV |
Test Force |
0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N. (10, 25, 50, 100, 200, 300, 500, 1000gf) |
Measurement System Magnification |
400X, 100X |
Maximum Specimen Permitted Height |
90 mm |
|
Distance Between Pressure Head Center And Its Wall |
120 mm |
Power Supply |
AC 220V, 50Hz |
Dimensions |
530 * 290 * 490 mm |
Weight |
40 KG |
3.The Packing Way Of Our Export Machines:
4.The Realistic Pictures Of Our Factory:
5.Our Process Of Foreign Trade:
6.Our company can also produce the customized testing machines as clients' requirements.
You can contact me as the below information.
