JBW-300B Computer Control Metal Simple Beam Impact Tester Price
1.Application:
JBW-300B Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to
determine the anti-impact capability of metal materials under dynamic load.

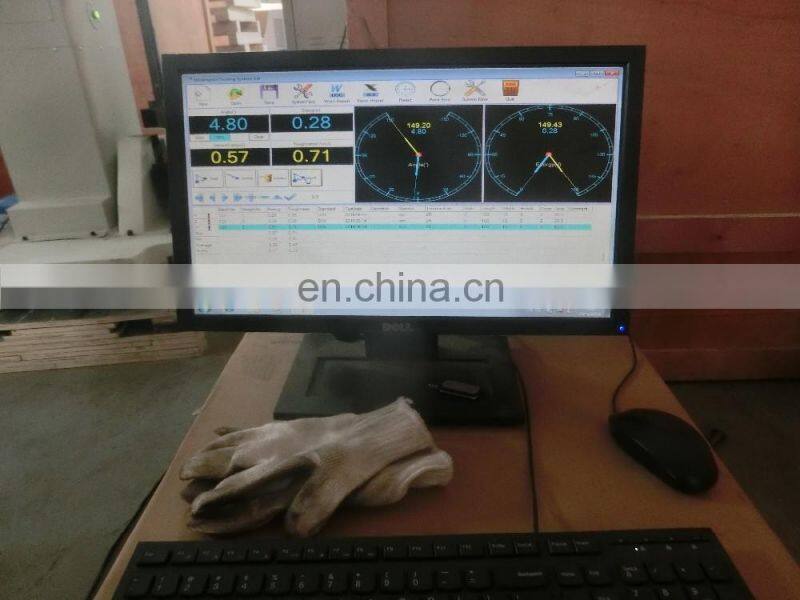

Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JBW-300B Computer Control Semi-automatic Charpy Impact Testing Machine are adopted
by many institutes and high-tech enterprises.
2.Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3.Technical Specifications:
Model | JBW-300B |
Control Mode | Computer Control Automatic |
Max. Impact Energy | 300 J / 150 J |
Min. Reading Values | 1 J |
Impact Speed | 5.2 m/s |
Pre-rising Angle Of The Pendulum | 150° |
Angle Accuracy | ±0.1° |
Specimen Bearer Span | 40+0.2 mm |
Round Angle Of The Jaw | R 1.0~1.5 mm |
Round Angle Of Impact Edge | R 2.0~2.5 mm |
Thickness Of Impact Blade | 16 mm |
The Distance Between The Pendulum Shaft And Impact Point | 750 mm |
Standard Specimen Dimension | 10 mm * 10 (7.5 or 5)mm * 55 mm |
Impact Pendulum Configuration | 150 J, 1 PC; 300 J, 1 PC |
Host Appearance Dimensions | 2124mm * 600mm * 1340mm |
Weight | 480 KG |
Power Supply | 3phs, 380V, 50Hz |

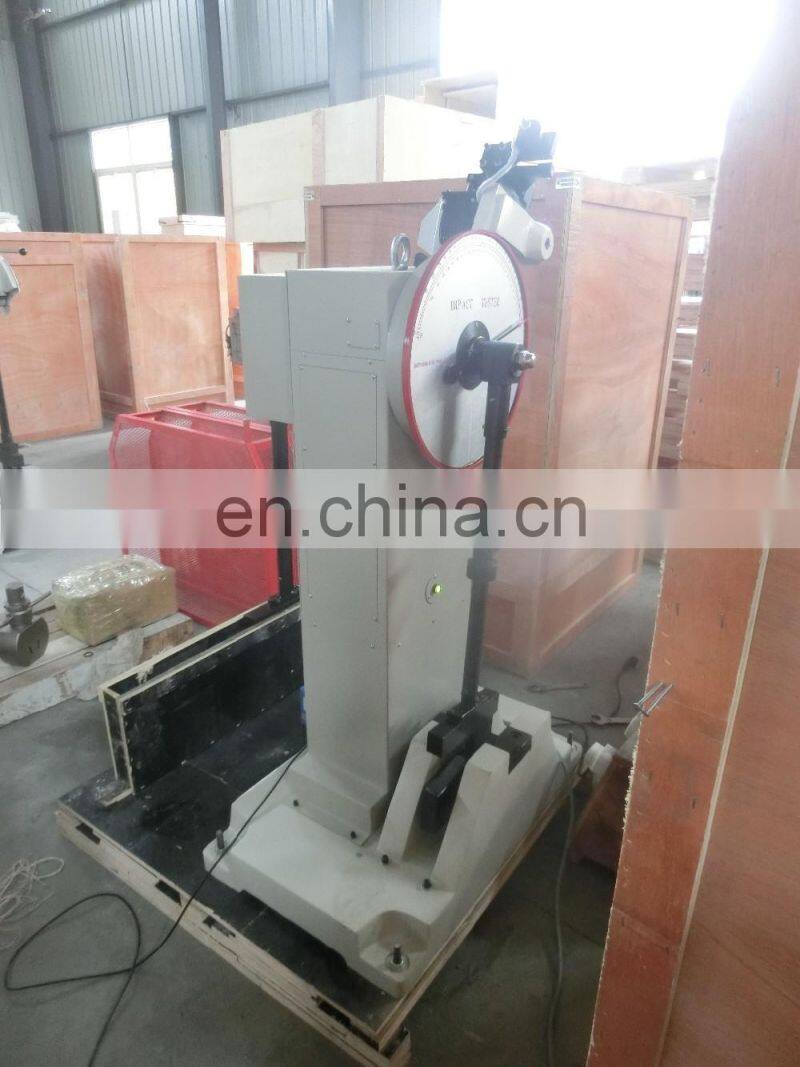

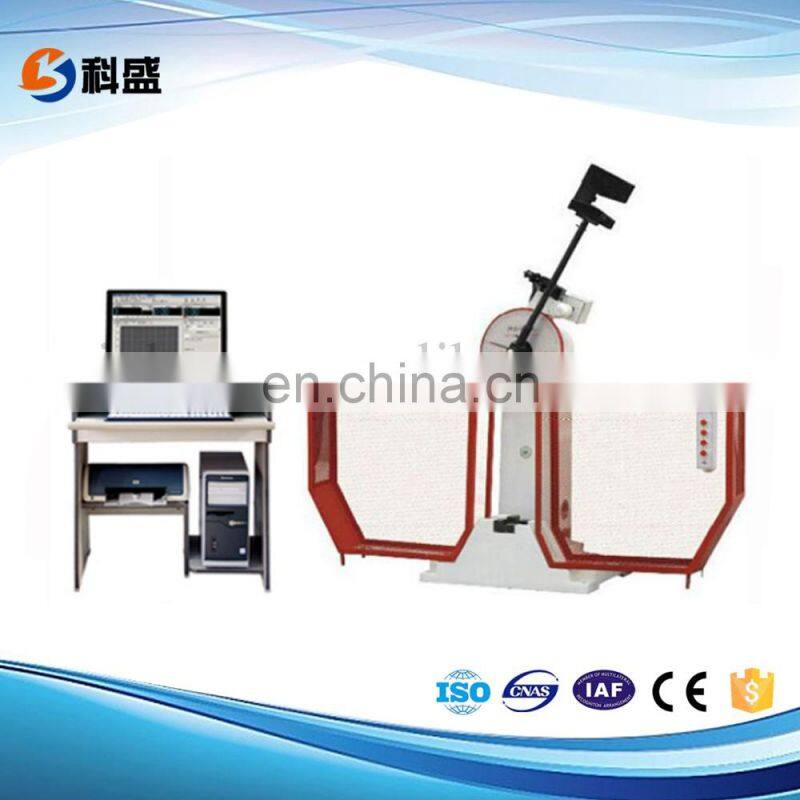

Impact Tester Pictures:

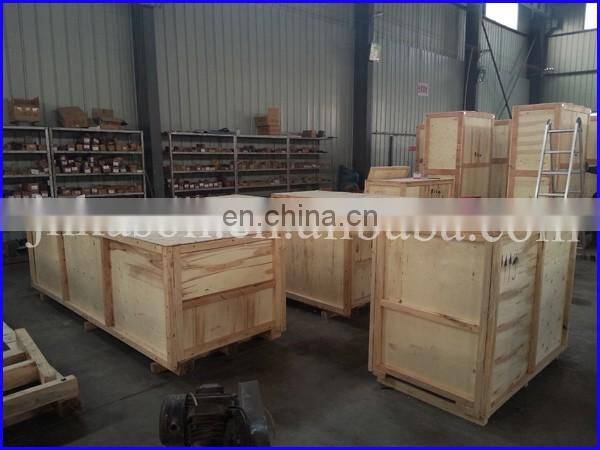

Package:
Factory Show:
Cooperation Partners:
Certificates:
