VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter

VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-1
VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-2

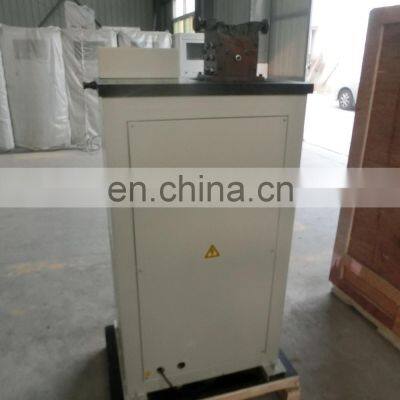

VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-3
VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-4

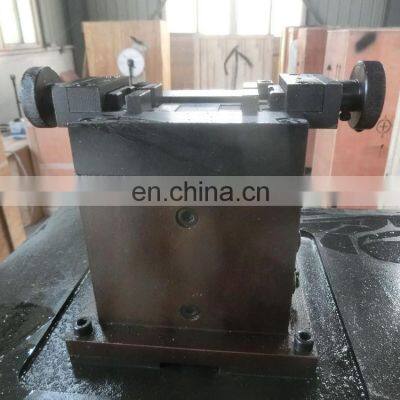

VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-5
VU-2Y Impact Sample Broaching Machine/Charpy UV Notch Broaching Machine/Hydraulic Notch Cutter photo-6
US$ 100 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KASON
Place of Origin:
Shandong, China
Model Number:
VU-2Y
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name KASON
Place of Origin Shandong, China
Model Number VU-2Y
Usage Impact Testing Machine

Impact sample notch broaching machine/Impact specimen notch/notch milling machine

contact:Linda

Skype:kason004

Whatsapp:+86 18253185736





1. Application :

Impact Specimen Gap Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research

2. Standards :

ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007

3. Features :

3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;

3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.

4. Main Technical Specifications :

Shape of sample notch

V2 mm,U2mm,(U3mm, U5mm alternative)

Sample size

(10, 7.5, 5)x10x55mm

Cutting mode

Hydraulic

Journey of broach

V2, U2, U3 350mm; U5 380mm

Broaching Speed

2.5m/min

Broach material

W18Cr4V

Power supply

380V 50Hz 0.4Kw

Max. Dimension

660x500x1240mm

Weight

200kg

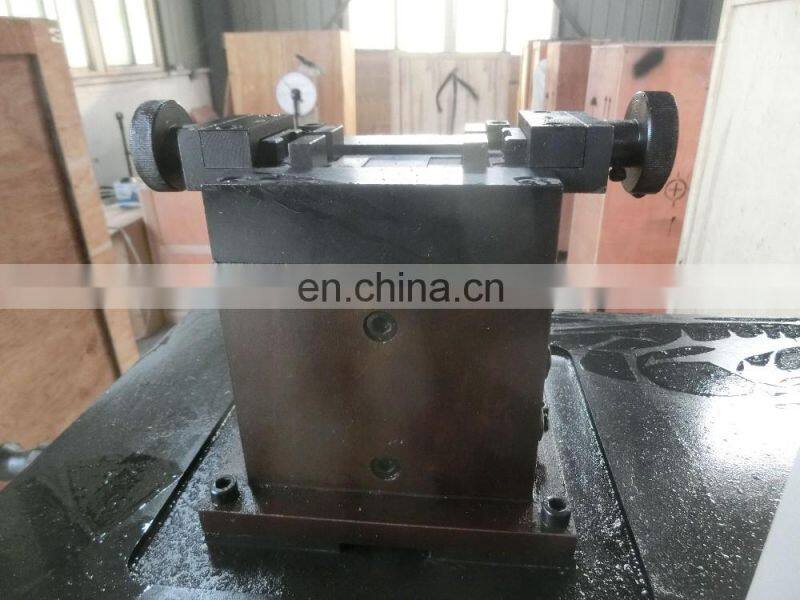

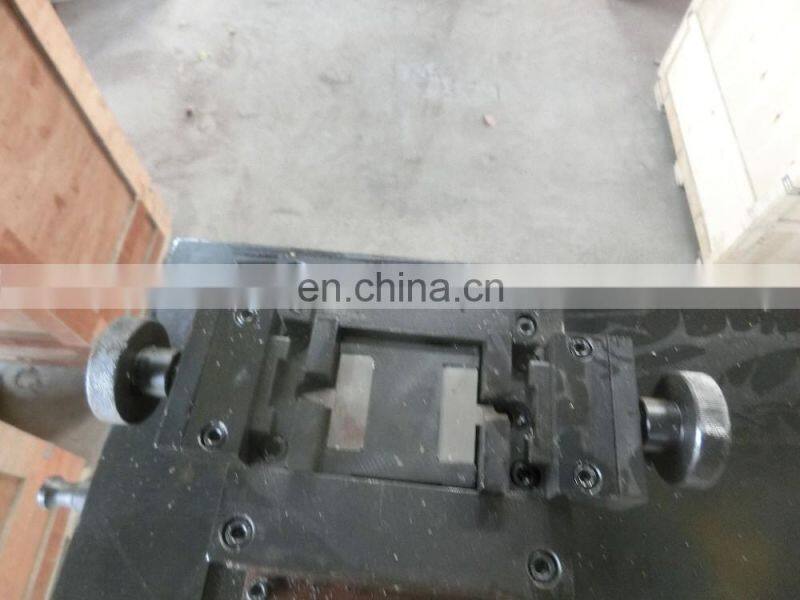

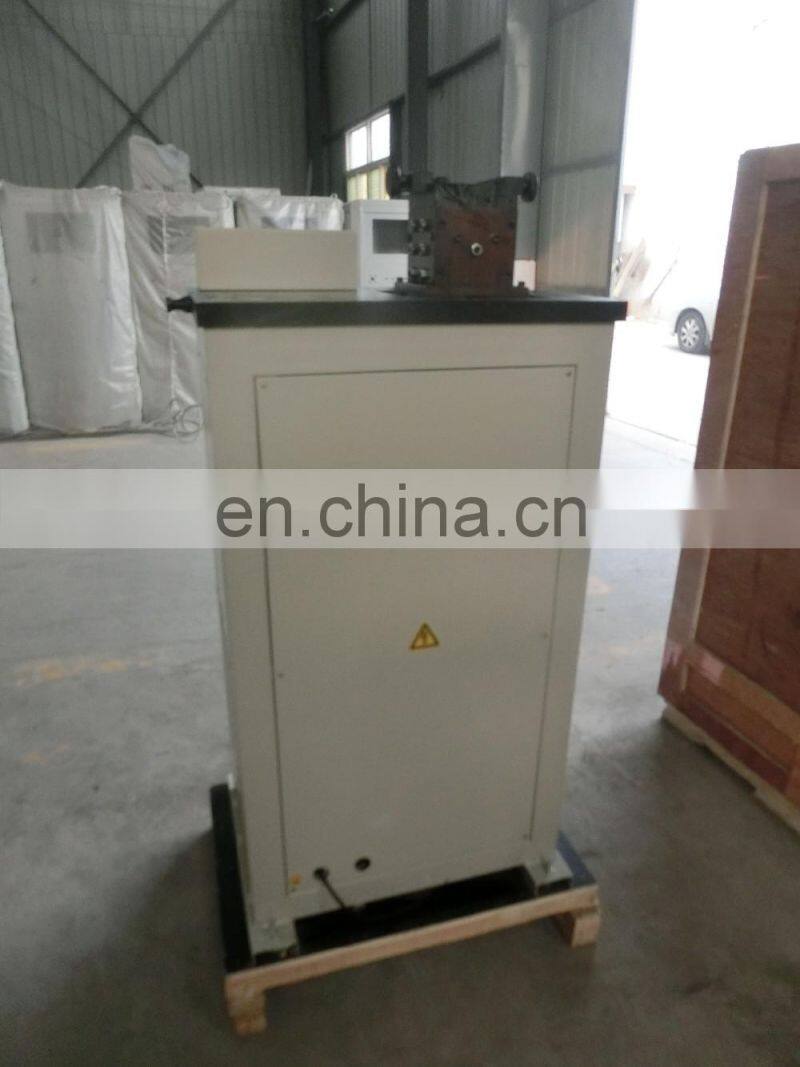

VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter

VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter

VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter

VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter

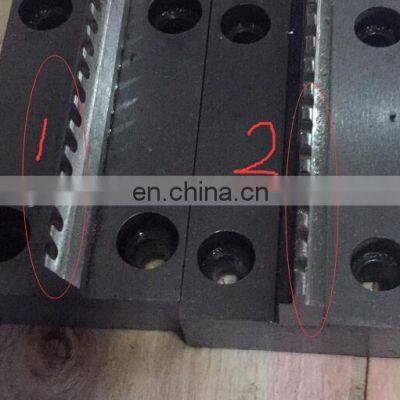

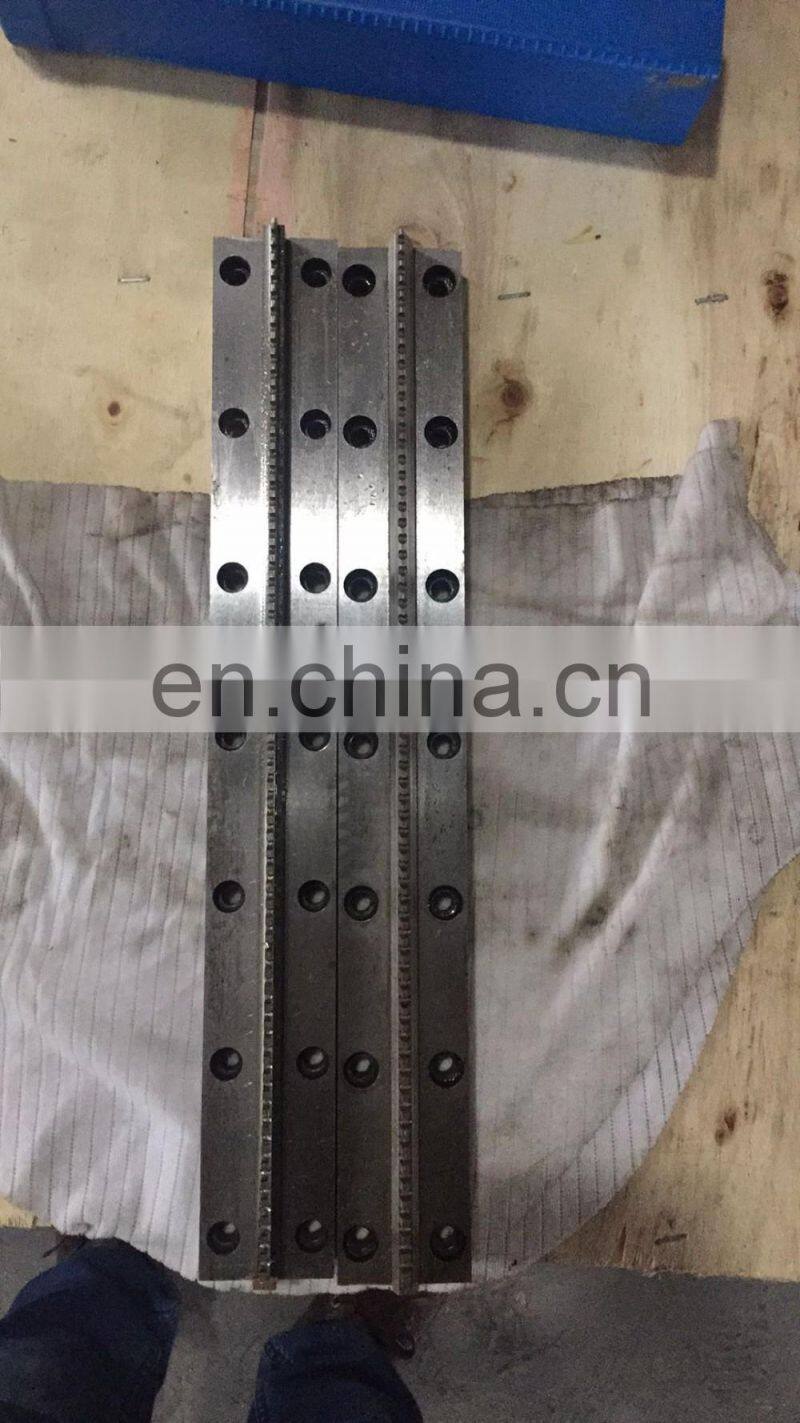

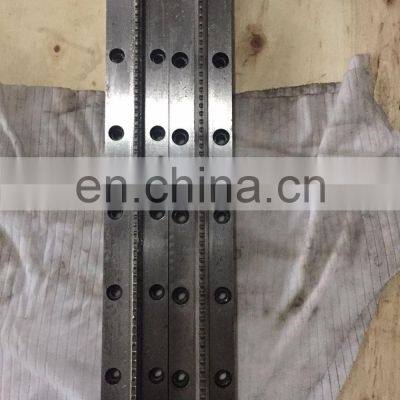

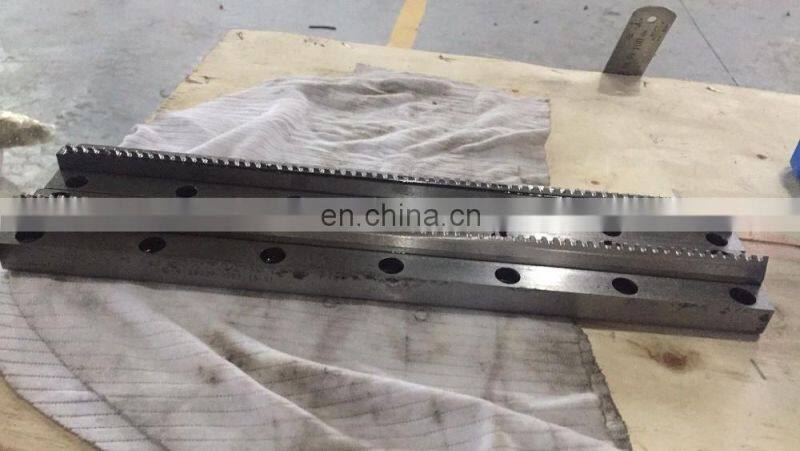

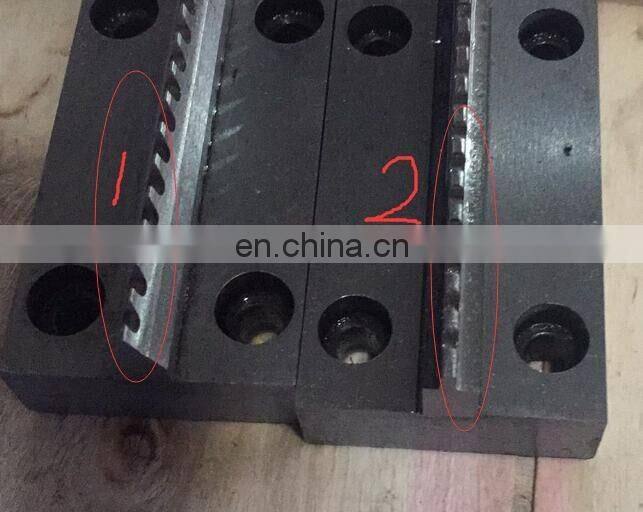

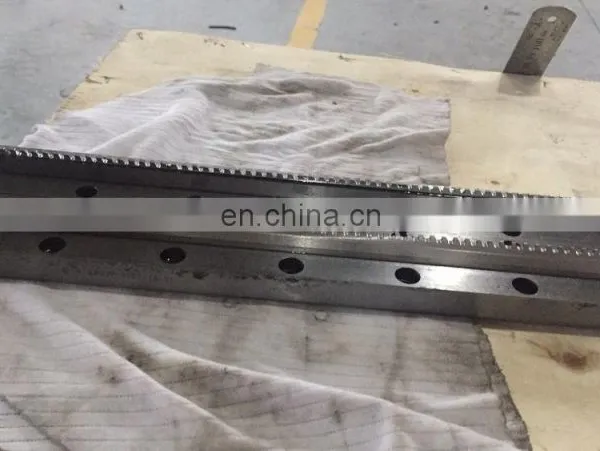

 BROACH BLADE:
VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter
VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutterVU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter
Packaging & Shipping

1. Delivery date: 7 days after receiving payment .

2. Payment terms: T/T, 100%before shipment .

3. Packages: Standard exporting plywood case .





VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter



VU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutterVU-2Y Impact sample broaching machine/Charpy UV notch broaching machine/Hydraulic notch cutter
