XJCJ-2B Drop Hammer Impact Testing Machine From China

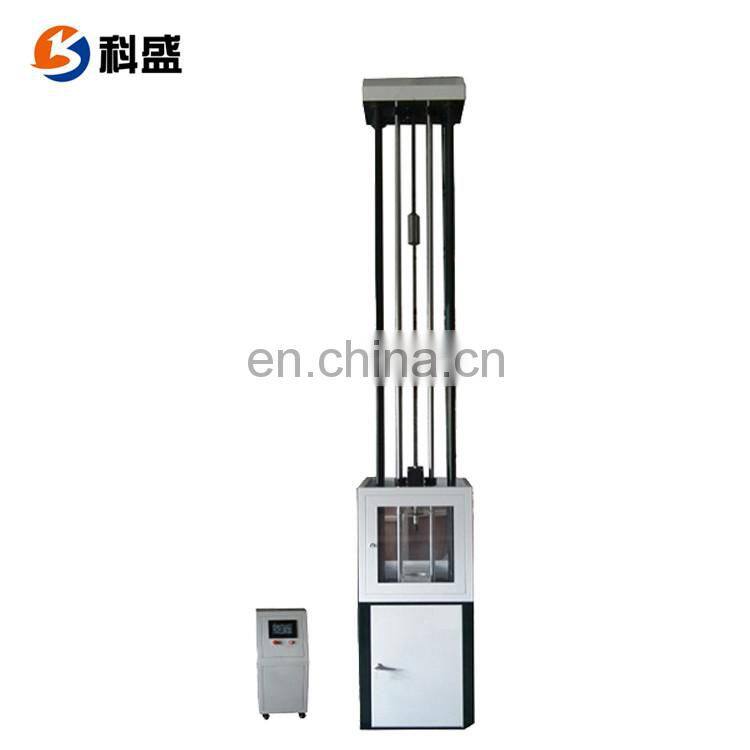

XJCJ-2B Drop Hammer Impact Testing Machine From China photo-1

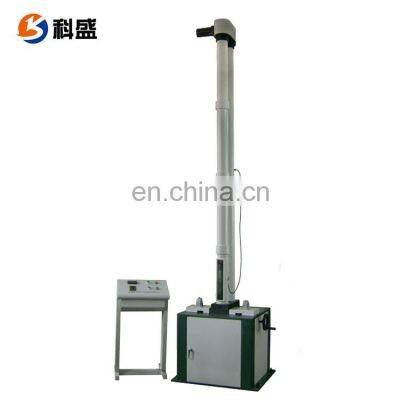

XJCJ-2B Drop Hammer Impact Testing Machine From China photo-2

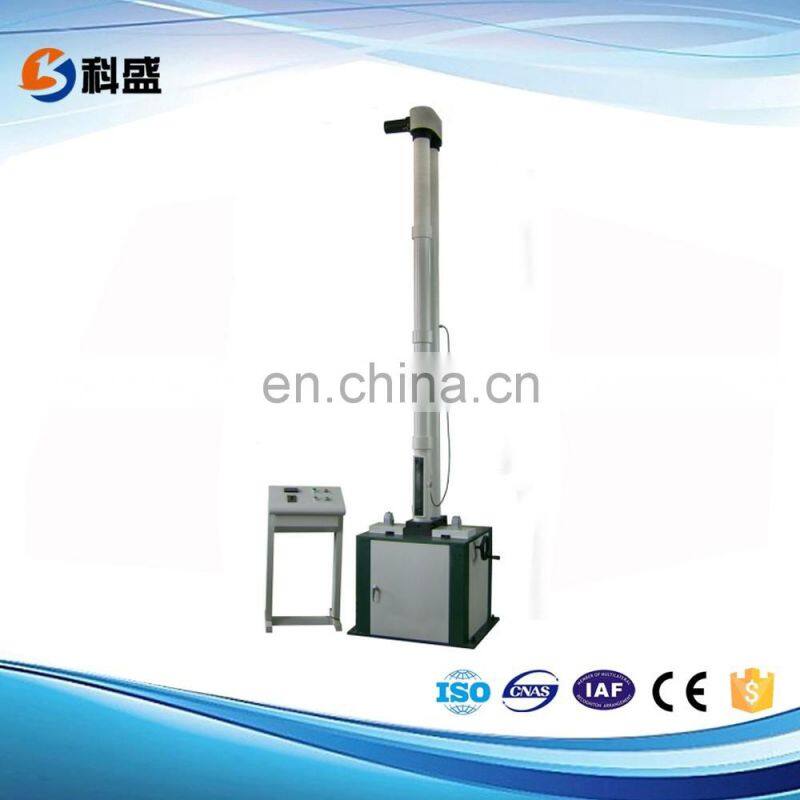

XJCJ-2B Drop Hammer Impact Testing Machine From China photo-3

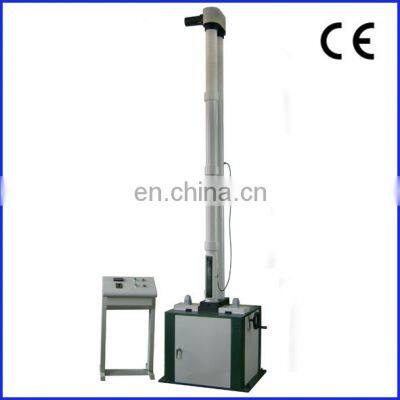

XJCJ-2B Drop Hammer Impact Testing Machine From China photo-4
XJCJ-2B Drop Hammer Impact Testing Machine From China photo-5
XJCJ-2B Drop Hammer Impact Testing Machine From China photo-6
US$ 4,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KASON
Place of Origin:
Shandong, China
Model Number:
XJCJ-2B
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name KASON
Place of Origin Shandong, China
Model Number XJCJ-2B
Power Electronic

XJCJ-2B Drop Hammer Impact Testing Machine from China



1. Application:

XJCJ-2B Drop Hammer Impact Testing Machine is suitable for determination of resistance to

external impact properties for various pipe (PVC-U water feed pipe, drainage pipe, low pressure

water feed pipe, low pressure water pipe, core layer foam pipe, double-wall corrugated pipe, PE

water pipe) and plate materials, can also be applied to hard plastic plates.



2. Standard:

Industry Standard JB/T 9389 Drop Hammer Impact Testing Machine Technical Conditions

and The National Standard GB/T14152, GB/T14153, GB/T6112; GB/T5836, GB/T10002.1,

GB/T10002.3, GB/T13664, GB/T16800, GB/T18477 etc.



3. Technical Specifications:

Model

XJCJ-2B

Max. Impact Energy

300 J

Hammer Weight

0.25~15 KG

Specimen Diameter

Φ16 mm ~ Φ450 mm

Radius Of Hammer Head

d25 mm, d90 mm (SR5, SRl0, SR30 Optional)

Impact Height

100 ~ 2000 mm

Impact Height Error

±2 mm

Power Supply

AC 220V, 50Hz, 10A

Weight

387 KG





XJCJ-2B Drop Hammer Impact Testing Machine from ChinaXJCJ-2B Drop Hammer Impact Testing Machine from China

4. The Packing Way Of Our Export Machines:

XJCJ-2B Drop Hammer Impact Testing Machine from China



5. The Realistic Pictures Of Our Factory:



6. Our Cooperative Partners:

XJCJ-2B Drop Hammer Impact Testing Machine from China



7. Our Process Of Foreign Trade:

XJCJ-2B Drop Hammer Impact Testing Machine from China



8. Our company can also produce the customized testing machines as clients' requirements.
