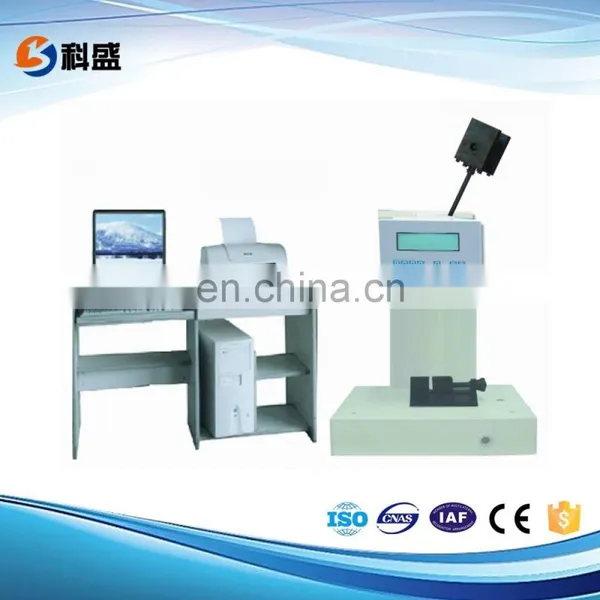

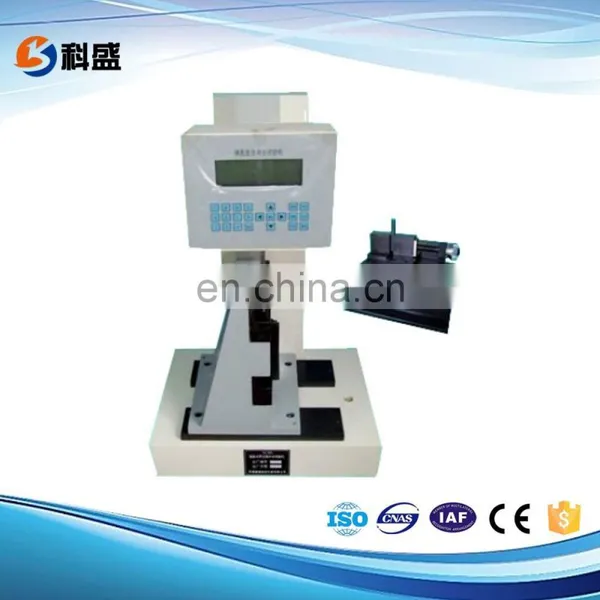

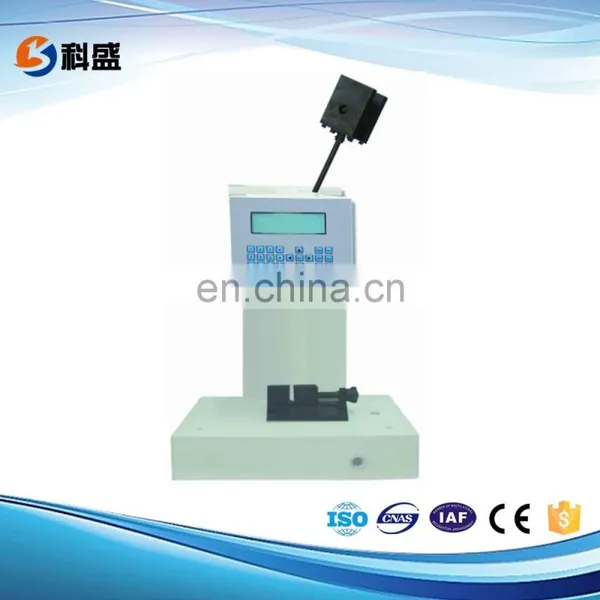

XJJ-5 5 J Dial Display Charpy Impact Testing Machine with electric hammer
skype:kason004 whatsapp:+86 18253185736
1.Applications:

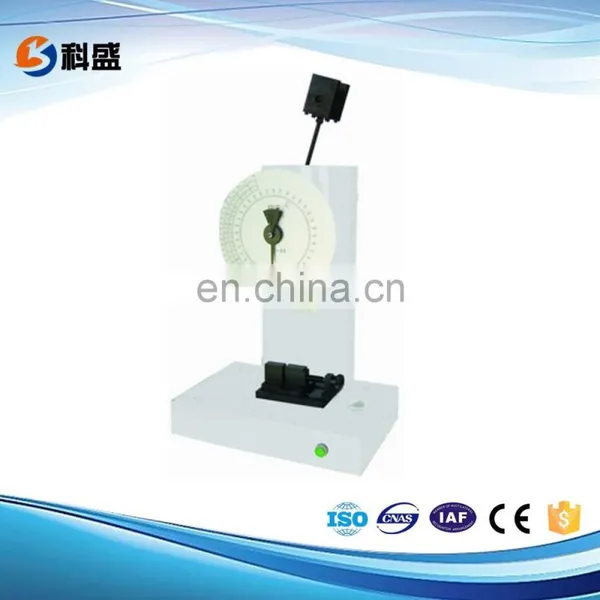

XJJ-5 Dial Display Charpy Impact Testing Machine is pointer dial, electric hammer block release.
Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic,
ceramic, asbestos etc. Nonmetal materials for impact test.
2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Main Specifications:
Model |
XJJ-5 |
|||
Impact Energy |
5 J |
|||
|
Pendulum Torque (Standard Configuration Is One Pendulum) |
1 J Pendulum PL=0.5155Nm |
2 J Pendulum PL=1.0311Nm |
4 J Pendulum PL=2.0622Nm |
5 J Pendulum PL=2.5777Nm |
Impact Speed |
2.9m/s |
|||
Pendulum Angle |
160° |
|||
Span Of Support(mm) |
40mm |
60mm |
70mm |
95mm |
Round Angle Of The Jaw |
R=1±0.1mm |
|||
|
Round Angle Of Impact Cutting Edge |
R=2±0.5mm |
|||
Impact Blade Angle |
30±l° |
|||
|
The Distance Between Pendulum Center And Sample Center |
221mm |
|||
we major in testing machine more than 10 years,has exported to USA ,Germany,
The foreign customers visit our factory
