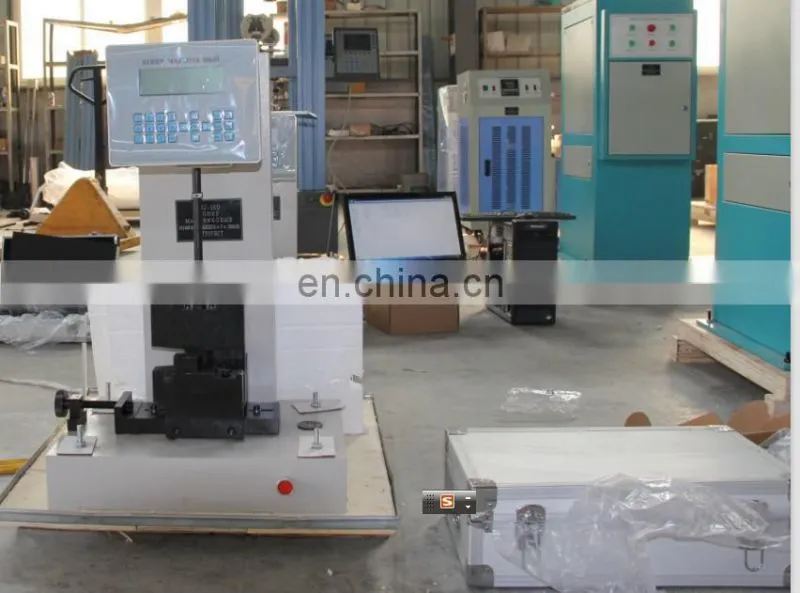

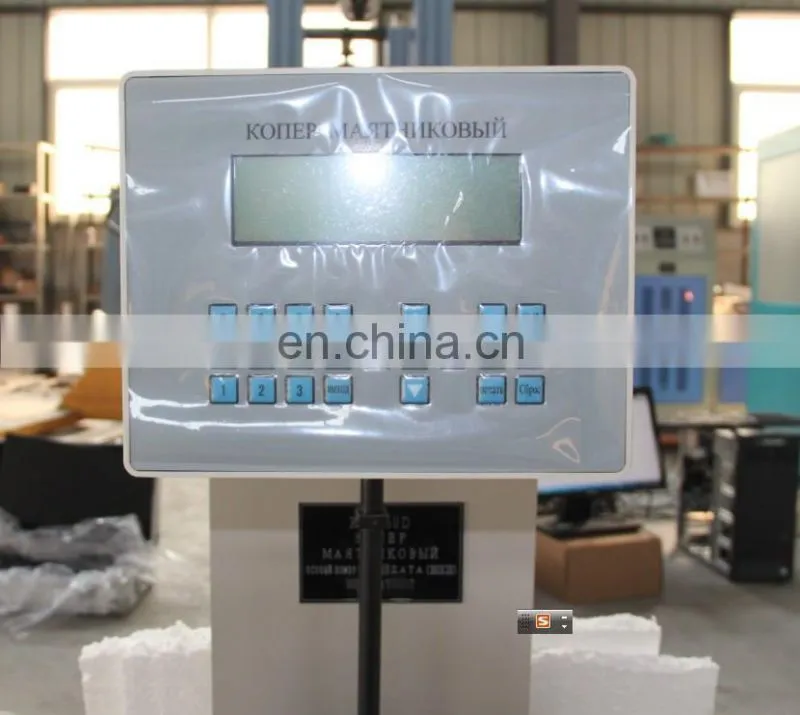

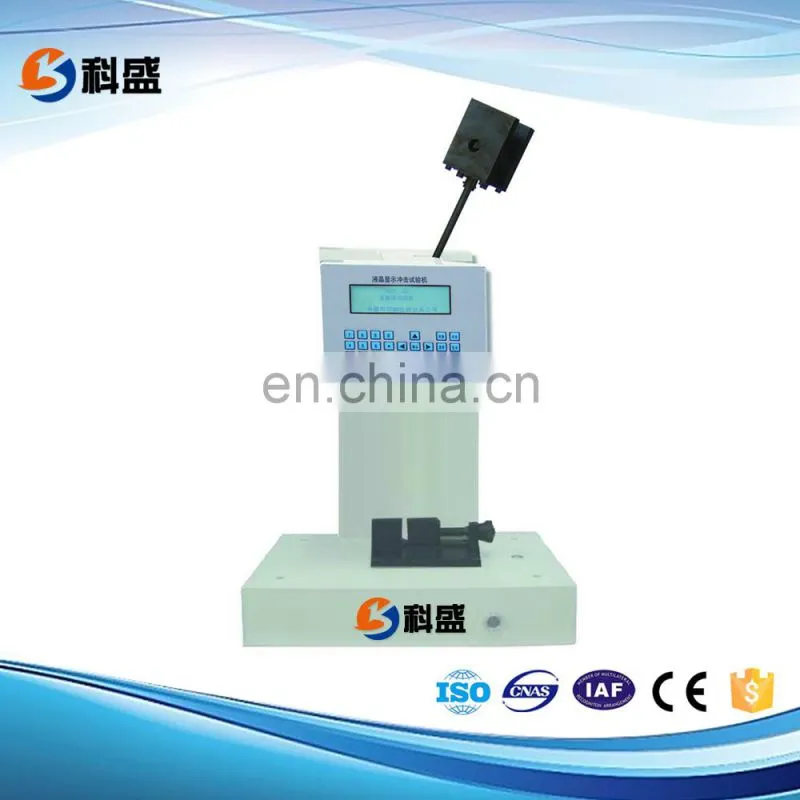

XJJD-50 Dial Display Izod & Charpy Impact Testing Equipment Price
Application
Charpy Impact Test machine is mainly used for impact toughness test of plastics, GFPA, FRP, ceramics, cast stone, plastic electrics, electrical insulating material and other non-mental materials. This machine is applicable to the Scientific research colleges and universities authority , Nonmetallic material factory. And other test labs and inspection department for testing.
This machine with wide range of impact energy. Izod and charpy can be in common use. Simple structure, easy operation and high test accuracy.
Standard
1. GB/T 1043-93 Hard plastics charpy imoact testing method
2. GB/T 1843-1996 Plastics izod impact testing method
3. JB/T 8761-1998 Plastics izod impact testing machine
4. JB/T 8762-1998 Plastics charpy impact testing machine
5. ISO 179-1993(E) Plastics-measuring of charpy impact strength
6. ISO 180-1993(E) Plastics--measuring of izod impact strength
7. GB/T 18743-2002 Thermoplastic plastic pipe for fluid delivery charpy impact test method
8. ASTM D256 Plastics anti izod impact testing method
Technical parameters
A. Charpy impact:
1,Impact speed:2.9m/s and 3.8m/s
2,Pendulum energy:1J,2J, 4J,5J,7.5J,15J,25J,50J
3,Pendulum center to sample center distance:221mm,380mm
4,Rising angle of pendulum:160°
5,Pendulum movement:
Pd1=0.5155N.m Pd2=1.0311N.m
Pd4=2.0622N.m Pd5=2.5777N.m
Pd7.5=3.8662N.m Pd15=7.7324N.m
Pd25=12.8888N.m Pd50=25.777N.m
6,Jaw length:85mm
7,supporting distance:40mm,60mm,70mm,95mm
8,Supporting blade corner radius:R=1mm
9,Impact blade angle:30°
10,Impact cutting edge radius :R=2mm
11,Specimen type and supporting distance (mm)
Specimen type |
length |
width |
thickness |
supporting distance |
Jaw model |
1 |
80±2 |
10±0.5 |
4±0.2 |
60 |
A |
2 |
55(50)±1 |
6±0.2 |
4±0.2 |
40 |
B |
3 |
120±2 |
15±0.5 |
10±0.5 |
70 |
C |
4 |
125±2 |
13±0.5 |
13±0.5 |
95 |
D |
B. Izod impact testing:
1,impact speed:3.5m/s ;
2,Pendulum energy:1J,2.75J,5.5J, 11J,22J
3,Rising angle of pendulum:160°;
4,Pendulum impact center to impact blade distance:322mm
5,Pendulum movement:
Pd1=0.5155N.m Pd2.75=1.4177N.m
Pd5.5=2.8355N.m Pd11=5.6711N.m
Pd22=11.3419N.m
6,Impact blade to the plane of the jaw distance:22mm,
7,Blade corner radius:R=0.8mm
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Factory
