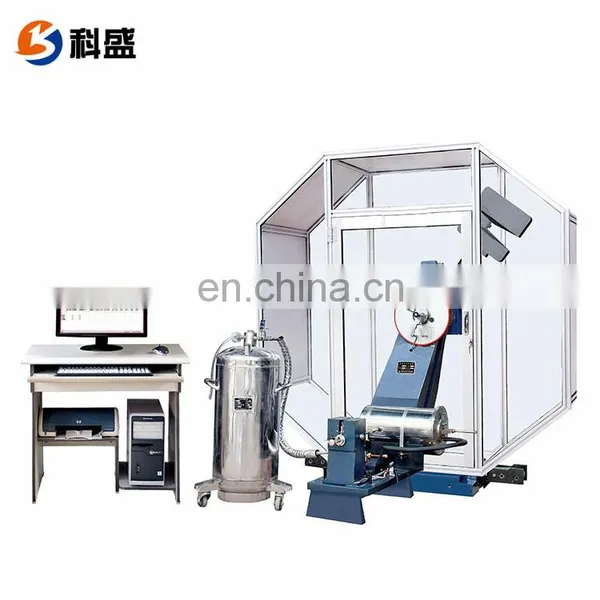

JBDW-300Y computer control low temperature impact testing machine
1. Introduction
JBDW-300Y impact testing machine consists of three parts: Low temperature chamber, impact testing machine and computer. Low temperature chamber is a supplemental equipment for impact test under low temperature to keep the specimen cooling or at a constant temperature. Impact testing machine is used to determine the anti-impact capability of metal materials under dynamic load. And this Machine can be controlled by computer.
2. Features
1) Safety pin guarantees the impact action, standard protection shell to avoid any accident;
2) Easy operation, high working efficiency;
3) Impact energy is optional according to customers’ requirements;
4) Computer control
3. Main Technical Parameter
Model |
JBDW-300Y |
Impact energy |
300J/150J(degree scale: 2J, 1J) |
Dial scale rang and division value |
0-300J(2J), 0-150J(1J) |
Pendulum force(impact constant) |
0-300J M=160.7695N.m; 0-150J M=80.3848N.m |
Pendulum raised angle |
150° |
Distance between pendulum center to impact point |
750mm |
Impact velocity |
5.2m/s |
Span of specimen seat |
40mm |
Round angle of jaw |
|
Round angle of striking edge |
R2—2.5mm |
Specimen size |
10×10×55mm |
Power supply |
3-Phases four-wire system; 380V, 50HZ, 180W(host motor) |
Dimensions |
2124×600×1340mm |
Weight |
450kg |
Model |
DWC-196T Liquid Nitrogen Impact Test Low Temperature Chamber |
Cooling range |
+30 ~-196°C (room temperature:25°C) |
Constant temperature accuracy |
2°C |
Max. Dimension |
900×660×650 mm |
Dimension of the liquid nitrogen tank |
1000×600×600 mm |
Available working place |
240×150×150mm(huge stainless steel refrigerator) |
Specimens amount |
60~80~120 (Impact Specimens Size: 101055mm/ 510x55mm/ 7.51055mm) |
Digital timer |
1min~9999min(Resolution:1min) |
Cooling medium |
Liquid nitrogen |
Stirring Motor |
23w |
Power supply |
220V~240V, 50HZ, 2.5KW |
