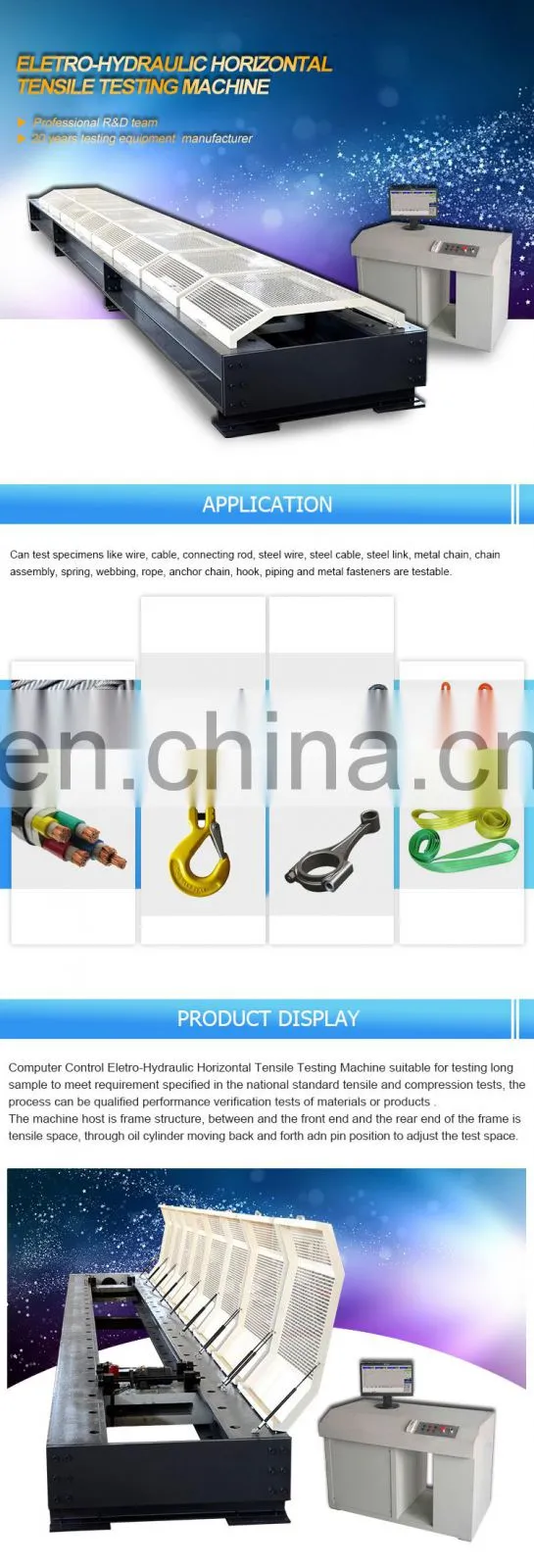

WAL Computer Control Webbing Sling Bolt Tensile testing equipment from China
1. Application :
Horizontal Bolt Tensile Test Equipment Slings is mainly designed for tensile strength tests on all kinds of metal component, anchor chain, hook, wire rope ,stopper, electric cable and separating disc
2. Specifications :
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
Max.Load(kN) |
600 |
1000 |
2000 |
3000 |
Load Range |
4%~100% of Full Scale |
|||
Load Accuracy |
±1% |
|||
Relative Error of Displacement |
±1% |
|||
Stress Speed(Mpa/s) |
1-45 |
|||
Tensile Space(mm) |
0-10000 |
|||
Piston Stroke(mm) |
500 or Customized |
|||
Method of Specimen Clamping |
Bolt way, Specially According to the Specimen that customer Provide |
|||
Control Mode |
Computer Controlled or Hand Valve Control |
|||
Effective Testing Space(mm) |
Width 750 or Customized |
|||
Fixed-way of Moving Beam |
Manual Bolt Fixed or Hydraulic Automatic Bolt |
|||
Power Supply |
380/220v±10%, 50/60Hz |
|||
3. Configuration
3.1. Test machine host
Single out bar double action low friction piston cylinder------ 1 set
Oil cylinder block------ 1 set
Tensile test fixture----- 1 set
Host framework (using the steel plate welding structure)-------1 set
Safety protection device (including protective cover, etc).------ 1 set
3.2. Control cabinet
Bench hydraulic pump station--1 set
Italy MARZOCCHI import oil pump
3.3. Tester acquisition display system
AD800 universal test card---- 1 set
Maxtest tester special software under the WINDOWS98/2000 / XP operating environment------ 1 set
High voltage control system---- 1 set
High precision load sensor----- 1 pc
3.4. Computer system:
LENOVO computer ----1set
HP printer---1set
4. Features:
1. Computer automatic loop-closed control, sensor test force,
2. Computer screen can timely display, memory printing
3. Sample hydraulic automatic clamping
4. Automatic calculate the material test result of the max force, tensile strength,yield strength, elastic modulus, percentage elongation after fracture, reduction of area
5. Safety net protecting the test personnel is available when sample breaking
WAL-1000 Computer Control Bolt Horizontal Tensile Test Equipment
