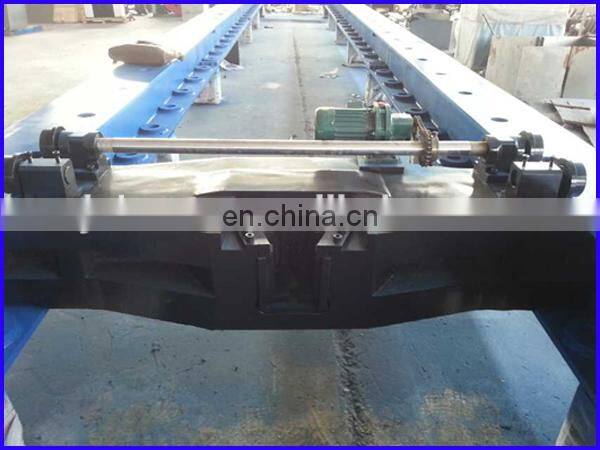

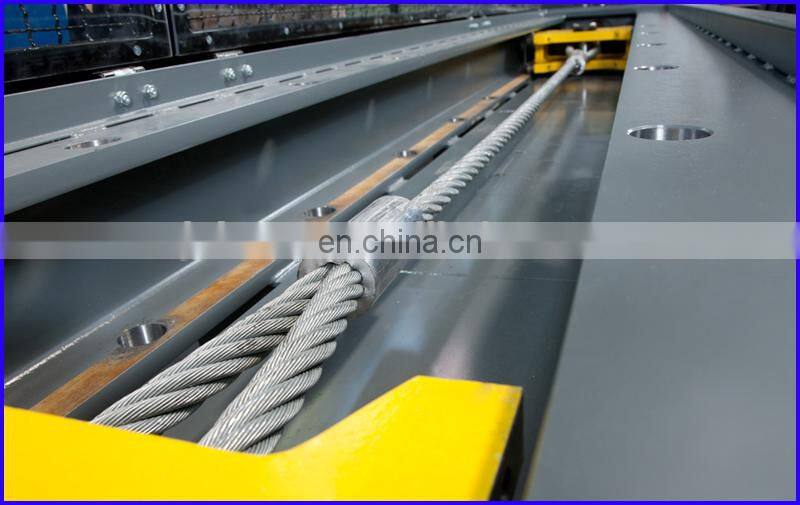

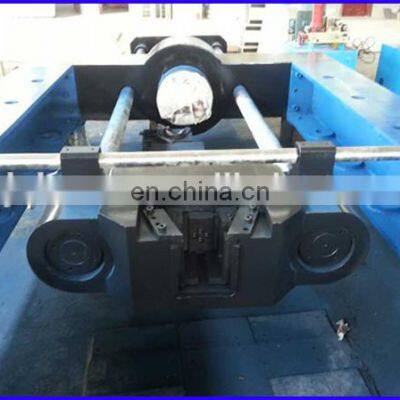

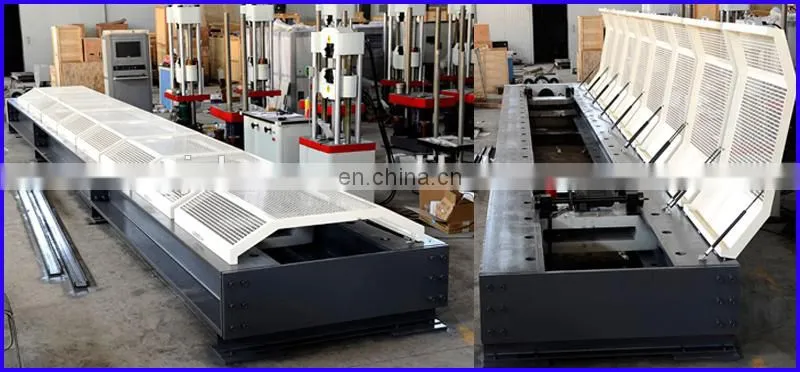

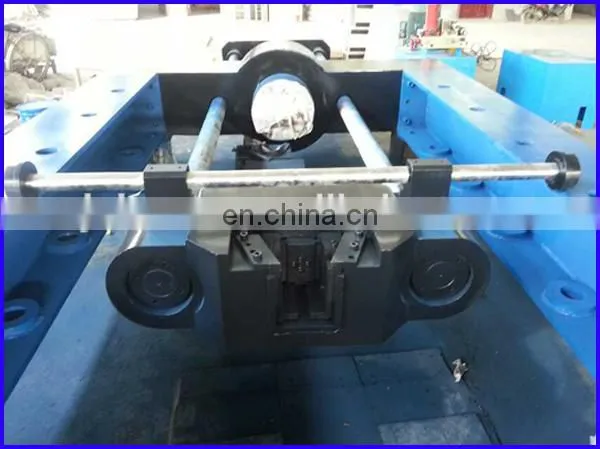

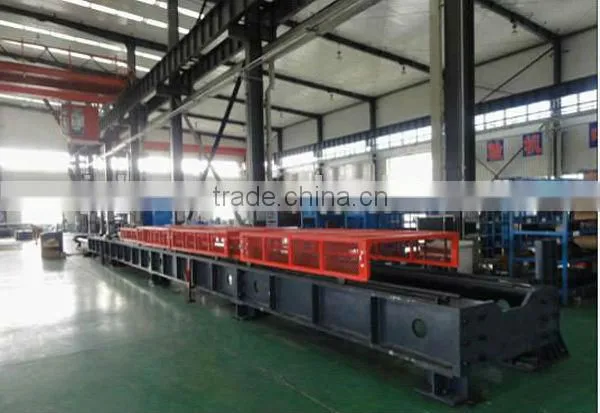

200ton Computer Control Eletro Hydraulic Anchor Tensile Tester/ Sling Horizontal Tensile Testing Machine
1. Application :
Horizontal Tensile Testing Machine is mainly designed for tensile strength tests on all kinds of metal component, Sling, anchor chain, hook, wire rope ,stopper, electric cable and separating disc .
2. Specifications :
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
Max.Load(kN) |
600 |
1000 |
2000 |
3000 |
Load Range |
4%~100% of Full Scale |
|||
Load Accuracy |
±1% |
|||
Relative Error of Displacement |
±1% |
|||
Stress Speed(Mpa/s) |
1-45 |
|||
Tensile Space(mm) |
0-10000 |
|||
Piston Stroke(mm) |
500 or Customized |
|||
Method of Specimen Clamping |
Bolt way, Specially According to the Specimen that customer Provide |
|||
Control Mode |
Computer Controlled or Hand Valve Control |
|||
Effective Testing Space(mm) |
Width 750 or Customized |
|||
Fixed-way of Moving Beam |
Manual Bolt Fixed or Hydraulic Automatic Bolt |
|||
Power Supply |
380/220v±10%, 50/60Hz |
|||
Cooperative customers:
