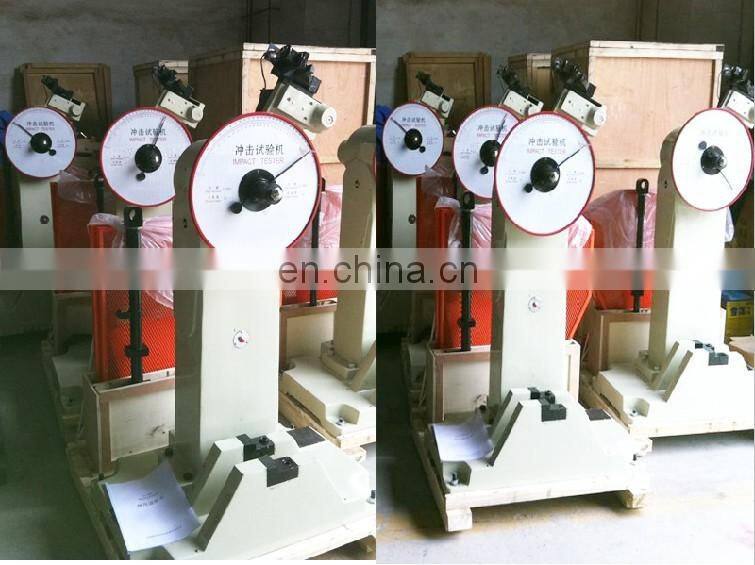

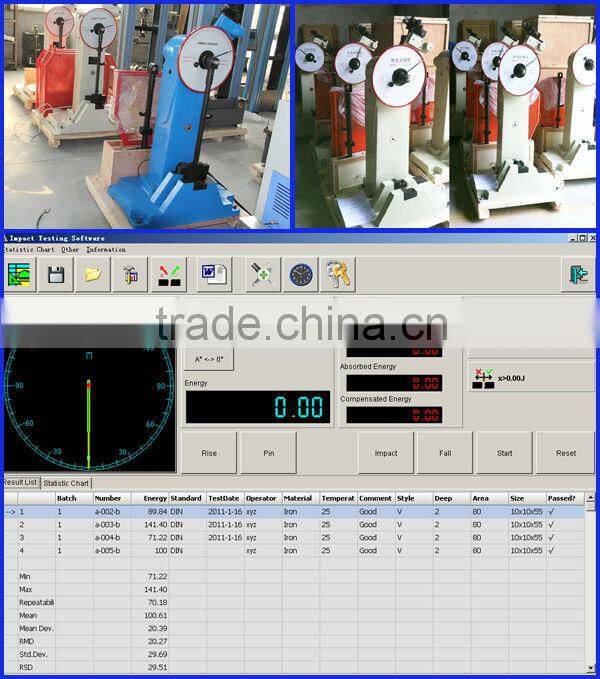

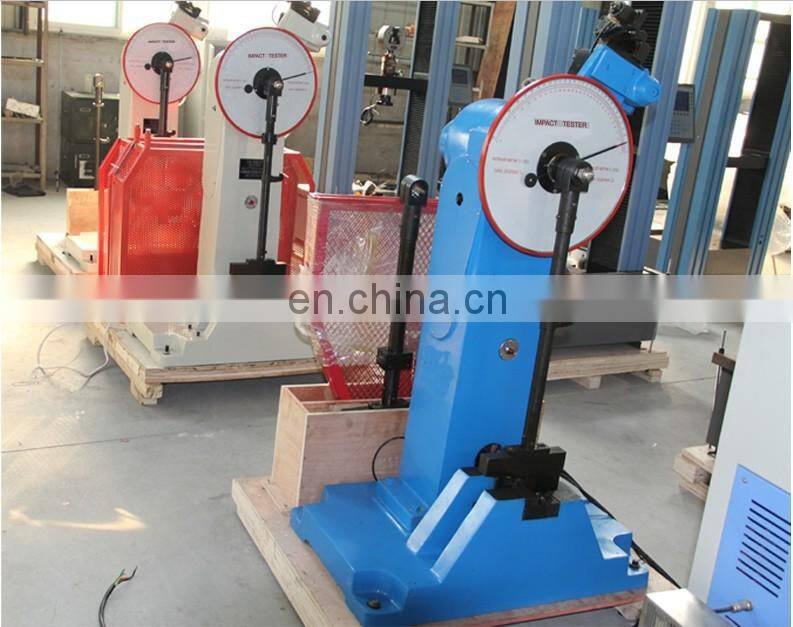

JB-B 150J 300J 250J 500J Semi-automatic Charpy Impact testing Machine / Impact Tester
1. Application
JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model |
JB-300B |
JB-500B |
JB-800B |
||
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
850mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of the jaw |
R1-1.5mm |
||||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455
|
||
Net Weight (kg) |
450 |
650 |
2300 |
||
4. Features:

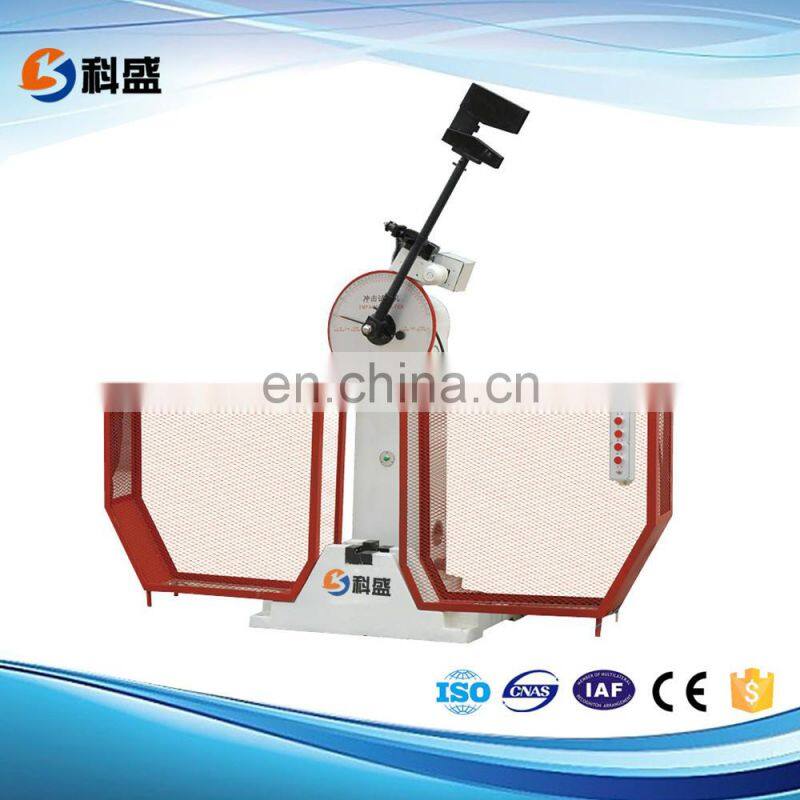

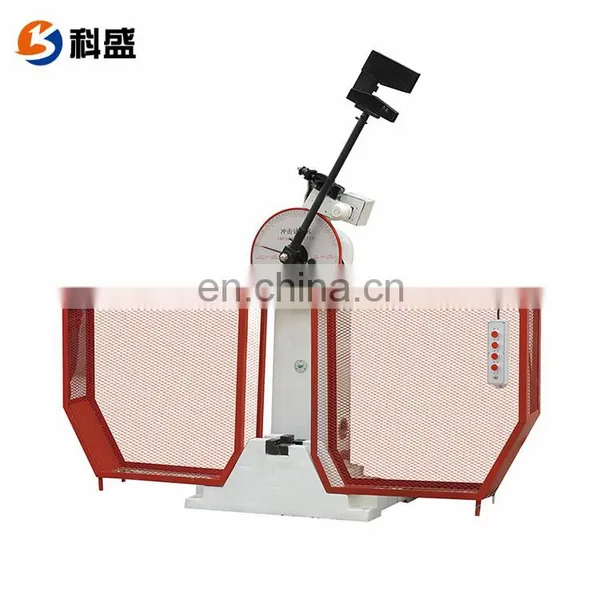

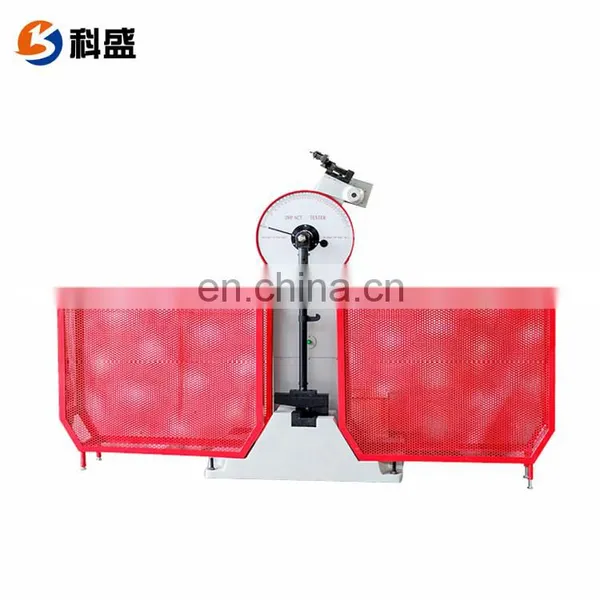

4.1 The principle machine of the testing machine has single supporting column structure, cantilever type pendulum hanging mode; the pendulum body is U-shaped
4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced;
4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net;
5. Configurations:
5.1 Main unit----------1 set
5.2 Pendulum
JB-300B |
JB-500B |
JB-800B |
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
5.3 Span specimen plate (L = 40mm)----1 pc
5.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.6 Stripping attachment----1 pc
5.7 Internal hexagonal wrench (S=12mm)---1 pc
5.9 Anchor bolts (M16x300mm)---4 pcs
5.10 Impact testing security guards----1 pc
skype:kason004 whatsapp:+86 18253185736
Contact :linda
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
