WE-300E Digital Display Hydraulic Power Universal Testing Machine from China

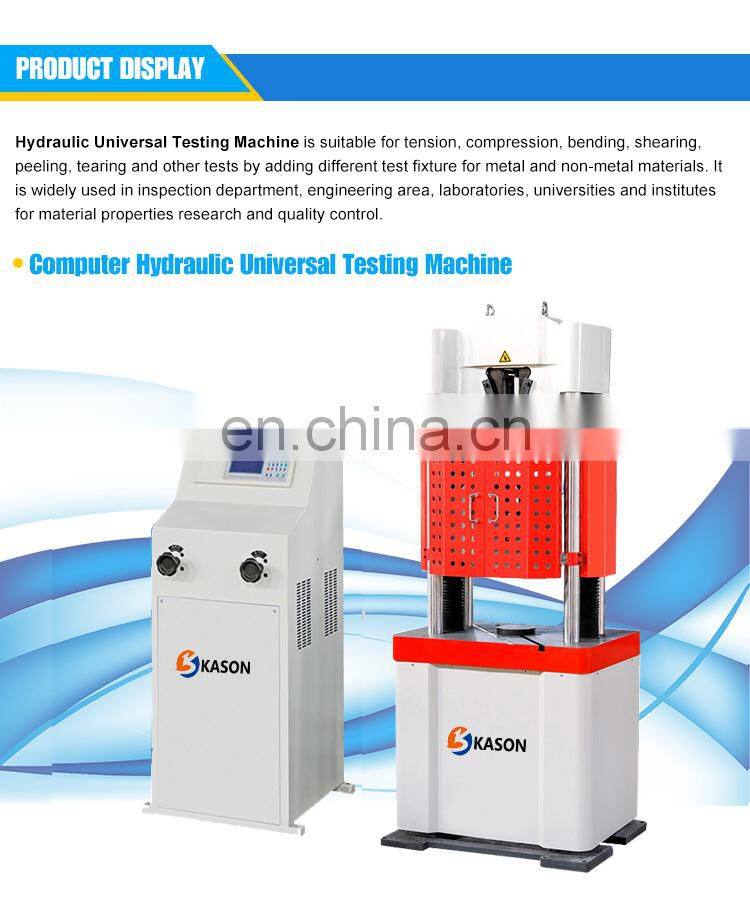

1. Application:
It is suitable for doing testing experiments such as the tensile,compression,
bending and shear testing for all kinds of metal materials and nonmetal
materials such as plastic, concrete, cement and so on.
2. Standards:
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN Standards.

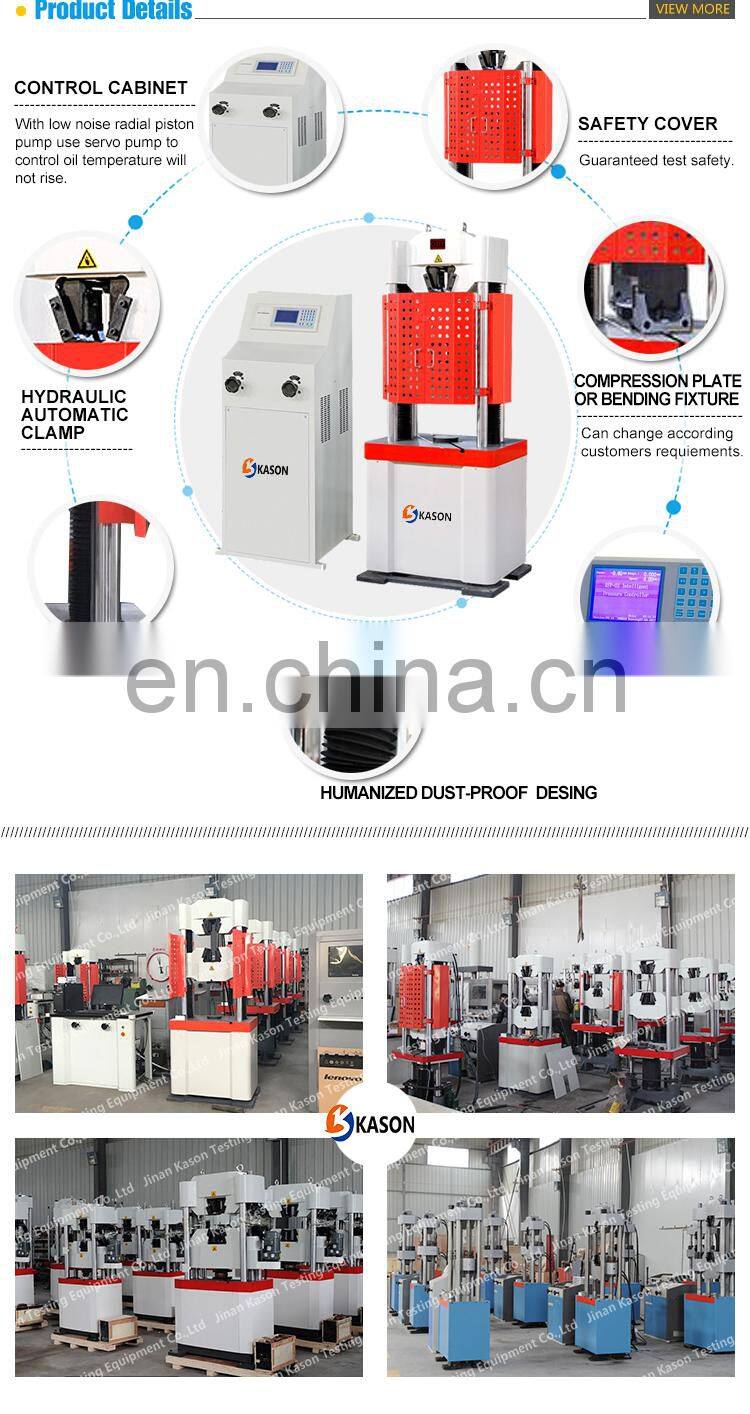

3. Features:
3.1 Specially designed extra-thick jaws block,sample clamp more reliable.
3.2 Wear-resistant lining,protect jaws block.
3.3 Fast operation testing system,multi specimen information imput.
3.4 Consistant resolution,make sure data accuracy.
3.5 Testing data real time display.
3.6 Testing data auto analysis,save and print.
3.7 Overload protection.
3.8 History record check function.
3.9 Software reserved data interface.
4. Main Specifications:
Model |
WE-100D |
WE-300D |
WE-600D |
WE-1000D |
|
Structure |
Four Column Two Ball Screw |
||||
Control Way |
Loading Process Manual Control |
||||
Max. Load |
100KN |
300KN |
600KN |
1000KN |
|
Load Range |
4%~100%FS |
||||
Load Accuracy |
≤±1% |
||||
Test Force Resolution Value |
0.01kN |
||||
Clamping Method |
Manual (Optional Hydraulic) |
||||
Max. Piston MovingSpeed |
50mm/min |
||||
Gantry Adjust Speed |
150mm/min |
||||
Max. Piston Stoke |
250mm |
||||
Max. Tensile Test Space |
650mm |
||||
Max. Compression Test Space |
550mm |
||||
|
Round Sample Clamping Diameter |
Φ6-Φ13mm |
Φ6-Φ26mm |
Φ13-Φ40mm |
Φ13-Φ50mm |
|
Flat Sample Clamping Diameter |
0-15mm |
0-15mm |
0-15mm |
0-30mm |
|
Clamping Width Of FlatSample |
70mm |
70mm |
75mm |
75mm |
|
Pressure Plate Size |
Φ160/204x204 (optional) |
||||
|
Bending Test Branch Roller Width |
140mm |
||||
Roller Distance Of Bending |
600mm |
||||
Voltage |
380V/50Hz/3Phase (can be customized) |
||||
