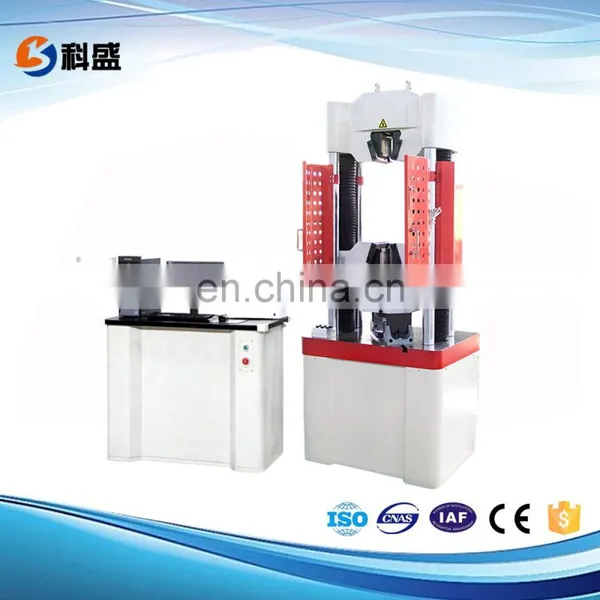

6 Column WAW-H 30 60 100 200TON Computer Electro Hydraulic Servo Hydraulic Universal Steel Wire Tensile Testing Machine
1. Application
Hydraulic Universal Testing Machineis suitable for tension, compression, bending, shearing, peeling,
tearing and other tests by adding different test fixture for metal and non-metal materials.
It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
Features:
1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
6. The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
Main Specifications:
Model |
WAW-1000H |
Structure |
6 column |
Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
Max.load |
1000kN |
Middle cross beam adjust method |
Nut rotate |
Load accuracy |
≤±1% /≤± 0.5% |
Load range |
2%-100%FS /0.4%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1%/± 0.5% |
Displacement resolution |
0.01mm |
Displacement error |
≤±0.5% |
Max.piston stroke |
250mm |
Max piston moving speed |
0-50mm/min stepless speed adjusting |
Crosshead lifting speed |
200mm/min |
Max. tension test space |
800mm (can customize) |
Max.Compression Test Space |
600mm (can customize) |
Column clearance |
650mm |
Clamping method |
Hydraulic clamp |
Round specimen clamping range |
Φ13-Φ60 |
Flat specimen clamping range |
0-20 (20-40 Optional) |
Flat specimen clamping width |
125mm |
Compression plate size |
φ160mm |
Bending roller distance |
450mm |
Width of bending rollers |
120mm |
Power supply |
3-phase,AC380V, 50Hz (can be customized) |
WAW-D UTM Price Hydraulic Universal Tensile Testing Machine
