Home > Products > Hydraulic Universal Testing Machine > WEW-1000D 1000KN Building materials hydraulic universal testing machine
WEW-1000D 1000KN Building materials hydraulic universal testing machine
- Qingdao
- T/T Credit Card
You May Like
-
1500KN WEW-1500H Computer Display Hydraulic Tensile Strength Testing Machine
-
WEW-2000H 2000KN Computer Display Hydraulic Tensile Strength Tester Price
-
WAW-1000KN 100Ton Computerized Electro-hydraulic Servo Universal Testing Machine for Steel Rebar Tensile Testing
-
WEW-2000H 2000KN Computer Display Hydraulic Universal Testing Machine from China Manufacture
-
WAW-E 1000KN 100 Ton Computerized Hydraulic Servo Universal Tensile Testing Machine from China
-
WE-600D 600KN 60 Ton Digital Display Hydraulic Universal Testing Machine
Product Details
| Brand Name | Kason | Place of Origin | Shandong, China | |
| Model Number | WEW-1000D | Power | Hydraulic | |
Product Description
WEW-1000D 1000KN Building materials hydraulic universal testing machine
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Specifications:
Model | WEW-1000D |
Structure | 4 columns and 2 screws |
Control way | loading process manual control,computer automatic data dealing |
Max.load (kN) | 1000kN |
Load accuracy | ≤±1% |
Load range | 2%-100%FS |
Load resolution | 1/300000 |
Deformation Measurement Range | 2%~100%FS |
Deformation accuracy | ≤±1% |
Displacement resolution (mm) | 0.01 |
Displacement error | ≤±0.5% |
Max.piston stroke(mm) | 250 |
Max piston moving speed | 0-90mm/min Manual adjustment |
Crosshead lifting speed | 200mm/min |
Max. tension test space | 650mm (can customize) |
Max.Compression Test Space | 500mm (can customize) |
4. Detailed Pictures :
Korea customer

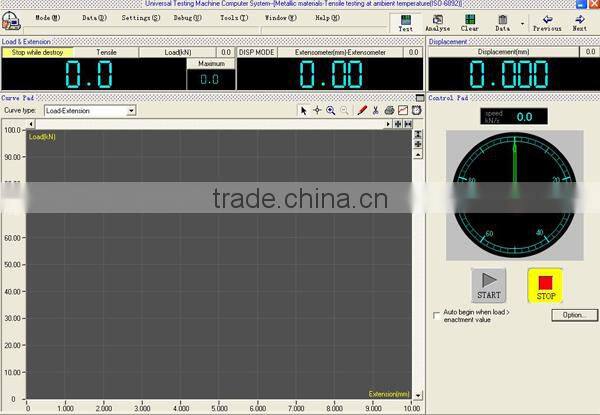

English Software :
WEW collections :
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
Our customers :
