WEW-2000H 2000KN 200TON Computer Display Hydraulic Universal Testing Machine from China Manufacture
1.Application:

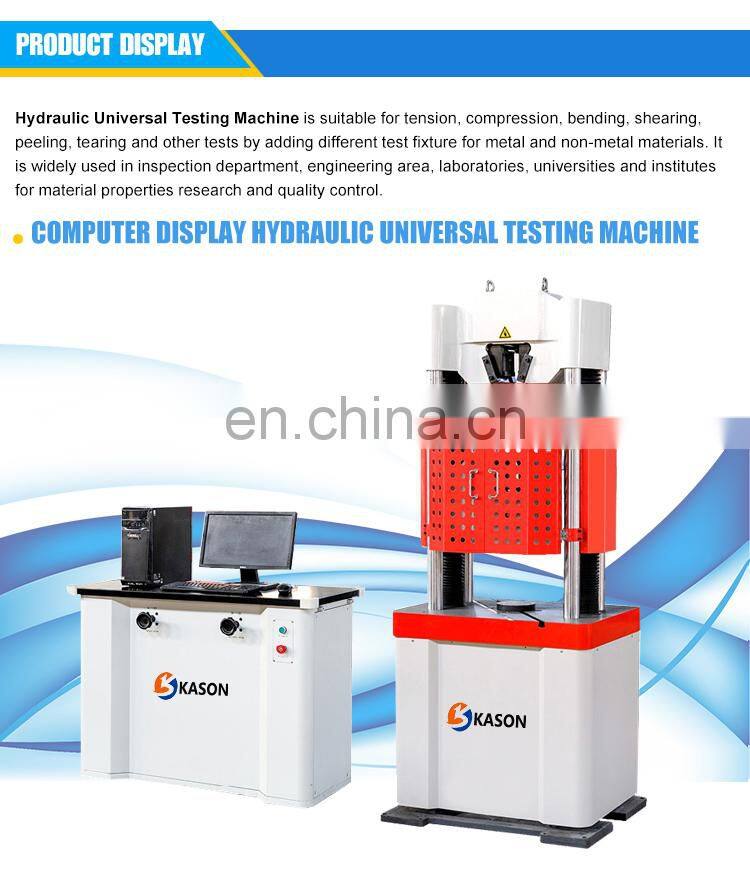

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate.
It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials.
Attached with simple accessories and devices, it can be used to test wood,concrete,cement,rubber,
and so on. It is very suitable for making test to different metal or nonmetal materials under high
toughness and hardness against extreme big loading force.
2.Standards:
ISO6892,BS4449,ASTM C39,ISO75001,ASTM A370,ASTM E4,ASTM E8 and BSEN standards.
3.Main Specifications:
Model |
WEW-2000H |
Structure |
6 Column (Four Columns Two Ball Screws) |
Control Way |
Loading Process Manual Control, Computer Automatic Data Dealing. |
Max. Load |
2000 KN (200 TONS) |
Load Accuracy |
≤± 1% |
Load Range |
2%~100%FS (40KN~2000KN) |
Max. Piston Stroke |
250mm |
Crossbeam Lifting Speed |
200mm/min |
Max. Tension Test Space |
1000mm |
Max. Compression Test Space |
750mm |
Clamping Method |
Hydraulic Automatic Clamping |
