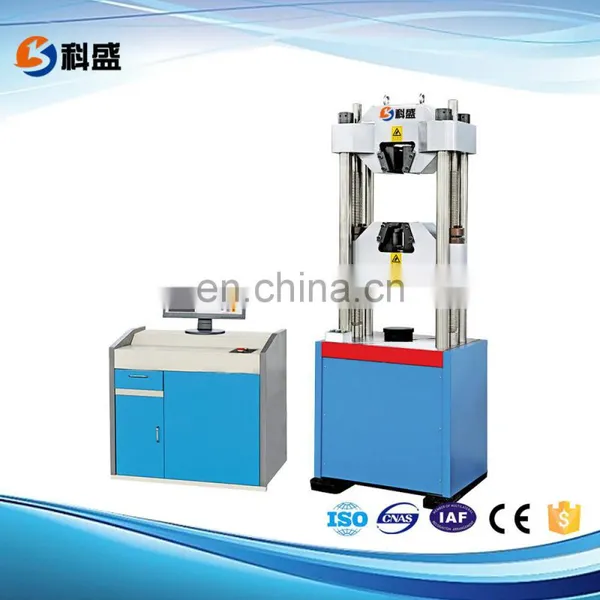

WEW-1000D Computer Display Hydraulic Universal Tensile Testing Machine 1000 kn
1. Application
Hydraulic Tensile Testing Machine for Wire is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding
different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2.Features:
2.1. It has three parts: Host & oil source &measurement control system
2.2 Automatic rise, down, test and stop
2.3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
2.4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
2.5.Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
2.6.The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
2.7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
Main Specifications:
Model |
WEW- 100D |
WEW- 300D |
WEW- 600D |
WEW- 1000D |
WEW- 2000D |
|||
Max load (kN) |
100 |
300 |
600 |
1000 |
2000 |
|||
Structure |
Six columns chain transmission oil cylinder underneath type |
|||||||
Control way |
Manual control loading process |
|||||||
Test class |
1 class |
|||||||
Test range(FS) |
2%-100% |
|||||||
Test value error(%) |
≤±1% |
|||||||
Force resolution |
0.01kN |
|||||||
Deformation effective test range (FS) |
2%~100% |
|||||||
Deformation value relative error(%) |
≤±0.5 |
|||||||
Displacement resolution (mm) |
0.01 |
|||||||
Displacement error(%) |
≤±0.5% |
|||||||
Max piston stroke(mm) |
200 |
250 |
||||||
Max piston moving speed (mm/min) |
0-70 manual adjust |
|||||||
Beam adjust speed(mm/min) |
270 |
|||||||
Max tensile space (mm) |
650 (can customize) |
900 |
||||||
Max compression space (mm) |
500 |
450 |
500 |
800 |
||||
Effective space between columns (mm) |
420 |
470 |
520 |
760 |
||||
Clamp way |
Hydraulic clamp |
|||||||
Round sample clamp diameter (mm) |
Φ10-Φ32 |
Φ13-Φ40 |
Φ13-Φ50 |
φ15-70 |
||||
Flat sample clamp thickness(mm) |
0-15 |
0-15mm |
0-30mm |
0-60 |
||||
Flat sample clamp width (mm) |
75 |
85 |
||||||
Compression plate size (mm) |
φ160 |
Φ240 |
||||||
Bending grip |
Three points mode |
|||||||
Bending roller distance (mm) |
450 |
|||||||
Bending roller width (mm) |
120 |
160 |
||||||
Bending roller upper and lower diameter(mm) |
3×Φ30 |
3×Φ50 |
||||||
Compression grip (mm) |
Φ160 spherical surface Automatic alignment mode compression grip |
Φ240 |
||||||
Power supply |
380V/50Hz/three phrase four wire system |
|||||||

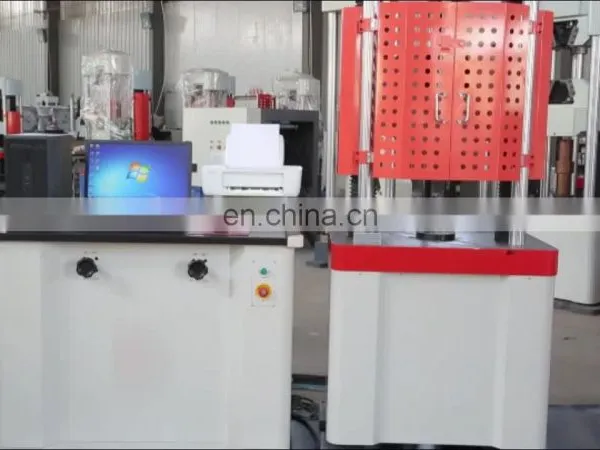

WEW-1000D Computer Display Hydraulic Tensile Testing Machine for Wire

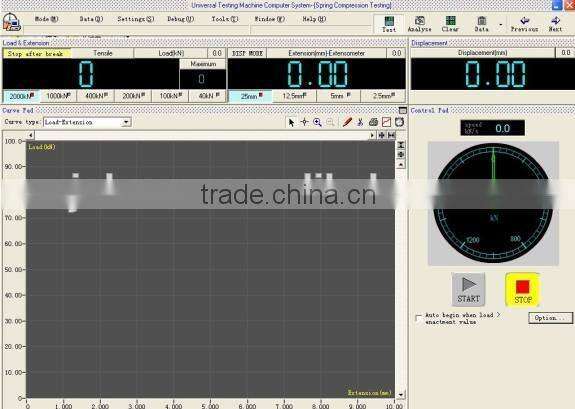

Software interface:

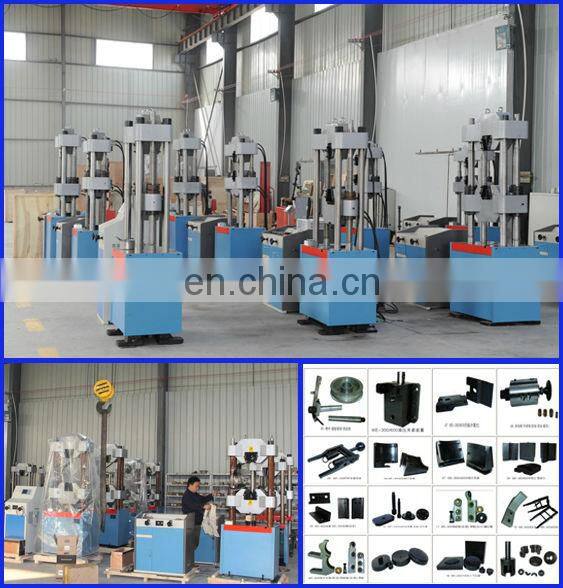

Factory:
Cooperative customers:
