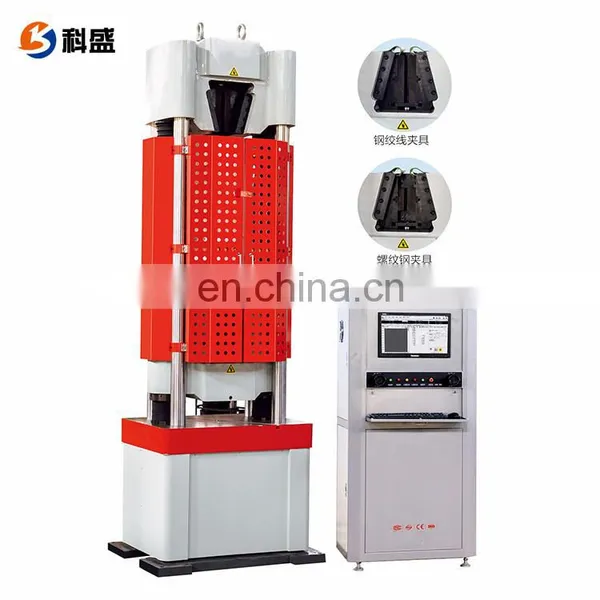

WAW-1500H 1500KN/150Ton Computer Control Tensile Compression Bending Test Machine/Hydraulic Universal Testing Machine Price
1.Application:
WAW-1500H 1500KN/150Ton Computer Control Tensile Compression Bending Test Machine/Hydraulic Universal Testing Machine Price adopts hydraulic loading, omputer Display, easy and convenient to operate.
It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber
and so on.
It is very suitable for making test to different metal or nonmetal materials under high toughness and
hardness against extreme big loading force.
2.Standards:
ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Main Specifications:
Model |
WAW-1500H |
Structure |
6 column |
Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
Max.load |
1500kN |
Middle cross beam adjust method |
Nut rotate |
Load accuracy |
≤±1% /≤± 0.5% |
Load range |
2%-100%FS /0.4%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1%/± 0.5% |
Displacement resolution |
0.01mm |
Displacement error |
≤±0.5% |
Max.piston stroke |
250mm |
Max piston moving speed |
0-50mm/min stepless speed adjusting |
Crosshead lifting speed |
200mm/min |
Max. tension test space |
850mm (can customize) |
Max.Compression Test Space |
650mm (can customize) |
Column clearance |
650mm |
Clamping method |
Hydraulic clamp |
Round specimen clamping range |
Φ13-Φ60 |
Flat specimen clamping range |
0-20 (20-40 Optional) |
Flat specimen clamping width |
125mm |
Compression plate size |
φ160mm |
Bending roller distance |
450mm |
Width of bending rollers |
120mm |
Power supply |
3-phase,AC380V, 50Hz (can be customized) |
Hydraulic Universal Testing Machine Price show:
Hydraulic Universal Testing Machine Price Packaging Show:
